| Brand Name: | ATNJ |
| Model Number: | AS-012 |
| MOQ: | 5Pcs |
| Price: | USD+240---260+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

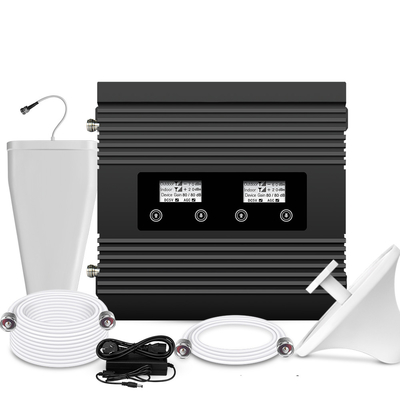

800MHz 2600MHz Dual Band Signal Booster 4G Cell Phone Repeater
Dual Band 4G Cell Phone Booster Ampilifier 800/2600MHz Mobile Signal Repeater
You are probably wondering what a cell phone signal booster actually is. This is a common reaction that people have, and we are taking a moment to explain it to you. In the current age of mobile technologies, where the personal devices are wireless and private, every device is backed by a “backbone” wireless network carrier, which could be one of the many major carriers in the country, such as Vodafone. Over the years, the carriers have developed their infrastructure well and have been able to cover most of the country. But there are large parts of the country where the signal coverage is weak or reaches sparingly. This is where the cell phone repeater comes into play. They resolve calls data and LTE reception mainly. In terminology, we call correspondingly 2G 3G and 4G signal.
Dual Band Signal Booster Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz,2496-2690MHz |
|
Downlink |
791-821MHz, 2496-2690MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz&75MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Antenna |
Log Periodic Antenna +Ceiling Antenna |
|
Further detail pls click here for downloading the products specification:
Dual Band Signal Booster Description
HOW IT WORK?
The outdoor antenna installed on the roof receives mobile phone’s signal and transmits it to the amplifier host through coaxial jumpers. The host amplifies the mobile signal and transmits it to the indoor space through the indoor antenna.
No inter-linkage between coaxial cable and mobile phone is needed, and mobile phones inside the house can get better mobile signals.
Boost: 4G Network
Coverage: 350-800 Square Meters
Suitable For: Russia,Spain,France,Ukraine,Europe,Asia,etc
Warranty: 3 Years!
We are manufacturer, and have our own factory.
Customer Notification
Shipping
● We will send your parcel as soon as possible after payment confirmed, Within 48 hours for normal,Except weekend and Chinese holidays.
● Please provide your correct address,full name,and zip code.
● We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Feedback
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.
|
| Brand Name: | ATNJ |
| Model Number: | AS-012 |
| MOQ: | 5Pcs |
| Price: | USD+240---260+kit |
| Packaging Details: | Standard neutral packing,48x46x18cm(1 kit) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
800MHz 2600MHz Dual Band Signal Booster 4G Cell Phone Repeater
Dual Band 4G Cell Phone Booster Ampilifier 800/2600MHz Mobile Signal Repeater
You are probably wondering what a cell phone signal booster actually is. This is a common reaction that people have, and we are taking a moment to explain it to you. In the current age of mobile technologies, where the personal devices are wireless and private, every device is backed by a “backbone” wireless network carrier, which could be one of the many major carriers in the country, such as Vodafone. Over the years, the carriers have developed their infrastructure well and have been able to cover most of the country. But there are large parts of the country where the signal coverage is weak or reaches sparingly. This is where the cell phone repeater comes into play. They resolve calls data and LTE reception mainly. In terminology, we call correspondingly 2G 3G and 4G signal.
Dual Band Signal Booster Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz,2496-2690MHz |
|
Downlink |
791-821MHz, 2496-2690MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz&75MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Antenna |
Log Periodic Antenna +Ceiling Antenna |
|
Further detail pls click here for downloading the products specification:
Dual Band Signal Booster Description
HOW IT WORK?
The outdoor antenna installed on the roof receives mobile phone’s signal and transmits it to the amplifier host through coaxial jumpers. The host amplifies the mobile signal and transmits it to the indoor space through the indoor antenna.
No inter-linkage between coaxial cable and mobile phone is needed, and mobile phones inside the house can get better mobile signals.
Boost: 4G Network
Coverage: 350-800 Square Meters
Suitable For: Russia,Spain,France,Ukraine,Europe,Asia,etc
Warranty: 3 Years!
We are manufacturer, and have our own factory.
