Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: JS-DB900/1800/P
Document: 900+1800MHz C03 Mobile Sign...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+70---85+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
Color: |
Black , Gold Or Customized |
Warranty: |
3 Years |
Weight: |
4kg |
Products Type: |
4g Repeater Mobile Signal Booster, Repeater Signal |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
Color: |
Black , Gold Or Customized |
Warranty: |
3 Years |
Weight: |
4kg |
Products Type: |
4g Repeater Mobile Signal Booster, Repeater Signal |

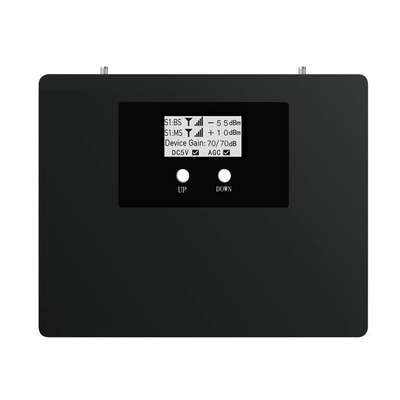

Dual Band 2G 4G Indoor GSM Signal Booster For Office Basement Village
Mobile Signal Repeater 900 / 1800MHz 2G 4G Dual Band Booster Cellular Amplifier For Office
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
Features:
1. Cost-effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.Expansion and extension of the signal of the base station. Optimization of the quality of the signal and source
3. High linear design, ALC function design, low interference to BTS.
4. Support any cellular devices (voice & data & video)
5. Wideband signal booster, or customize selective band booster.
6. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G, etc
Technical Specifications
Specifications |
Parameters |
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1710-1785MHz |
Downlink |
935-960MHz, 1805-1880MHz |
|
Frequency Bandwidth |
25MHz&75MHz |
|
Gain |
70dB |
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
Auto Gain Control |
20dB Min. |
|
Output Power(Customers to Choose) |
20dBm |
|
Spurious Emission |
≤ -15dBm/30kHz |
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
In-band Ripple |
≤ 3dB |
|
VSWR |
<=2 |
|
I/O Impedance |
50 Ω |
|
Noise Figure |
≤ 5dB |
|
System Delay |
≤ 5μs |
|

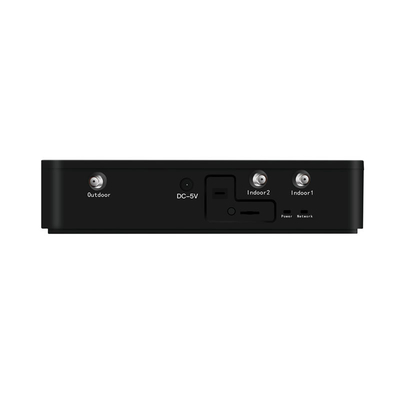

RF Connector(Customers to Choose) |
SMA(Female) |
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
Dimensions |
165*130*40 (mm) |
|
Weight |
≤0.8 kg(Net) |
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
Indication LED |
Power supply |
Further detail pls click here for downloading the products specification:
900+1800MHz C03 Mobile Signal Repeater.pdf
Product Description
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.

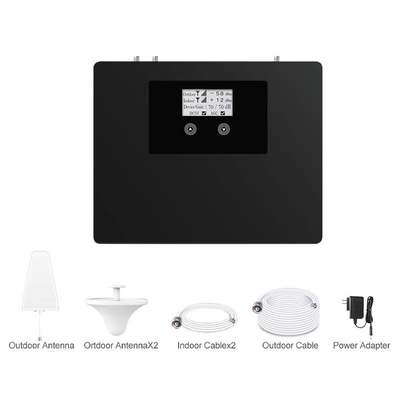

Packaging Including:
1. GSM 900MHz DCS 1800MHz Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Omni antenna and Ceiling antenna
5. 5 meters cable
6. 20 meters cable
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Cellphone signal full bar,but communication quality bad?
Too closer distance of indoor and outdoor antenna, need more separation far distance away between antennas.
4. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
5. Please feel free to contact us if any other questions.
