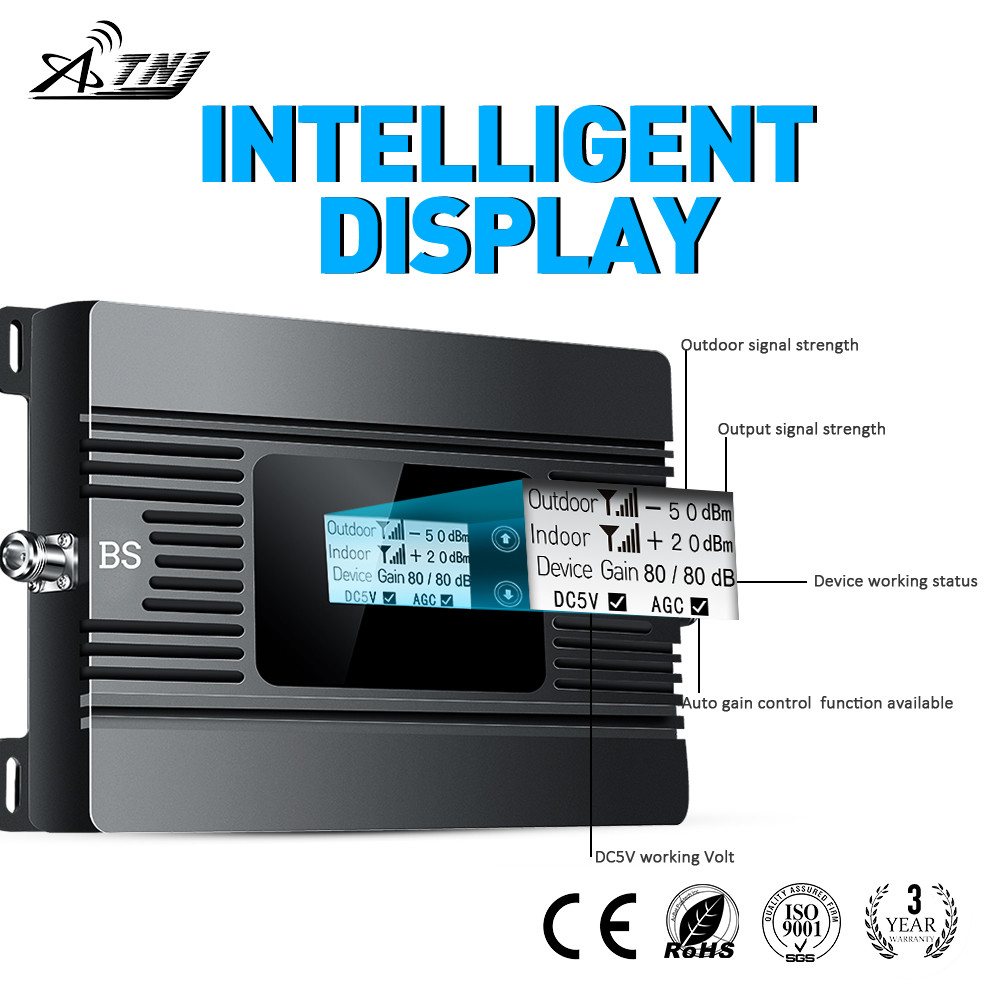

80dB Cell Phone Signal Amplifier

5Pcs
MOQ
USD+100---120+kit
Price
80dB Cell Phone Signal Amplifier
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency Range: Uplink:1920-1980MHz,Downlink:2110-2170MHz
Gain: 80dB
Color: Grey ,Cuztomized
ALC Intelligent Function: Done
In-band Ripple: ≤ 3dB
Packing Size: 52x21x16cm
Output Power: 23-27dbm
Coverage: 100~500sqm
Connector: N-Female Connector
Certification: CE,RoHS And REACH Compliant By Exemption
Highlight:

80dB Cell Phone Signal Amplifier

,

2170MHz Cell Phone Signal Amplifier

,

1980MHz 80dB Cell Signal Booster

Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: MS-W
Payment & Shipping Terms
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Product Description

80dB Cell Phone Signal Amplifier



Mobile Signal Repeater Ampilifier Single Band WCDMA2100MHz Cell Phone Booster



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

1920-1980MHz

Downlink

2110-2170MHz

Frequency Bandwidth (3dB Bandwidth)

30MHz

Gain

80dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

27dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

Network

3G

Origin

Shenzhen

Further detail pls click here for downloading the products specification:

WCDMA 2100MHz B011A Signal Repeater.pdf



Products Spect:

Model No :MS-2100
With ALC AGC Function

Can control gain automatically. Avoid base station interference

(Band 1) 2100MHz -- Uplink frequency: 1920-1980MHz /Downlink frequency : 2110-2170MHz
Network support : 3G,
Gain :80dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: N-female connector.



Product Description

80dB Cell Phone Signal Amplifier 0

80dB Cell Phone Signal Amplifier 180dB Cell Phone Signal Amplifier 280dB Cell Phone Signal Amplifier 380dB Cell Phone Signal Amplifier 480dB Cell Phone Signal Amplifier 5

80dB Cell Phone Signal Amplifier 680dB Cell Phone Signal Amplifier 780dB Cell Phone Signal Amplifier 8



We are manufacturer, and have our own factory.

Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
