Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: MS-C
Document: CDMA 850MHz B011A Signal Re...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
824-849MHz/869-894MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Grey ,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
N/Female Connector |
Weight: |
3.5kg |
Products Type: |
Telephone Booster, Cell Signal Amplifier |
Frequency Range: |
824-849MHz/869-894MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Grey ,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
N/Female Connector |
Weight: |
3.5kg |
Products Type: |
Telephone Booster, Cell Signal Amplifier |

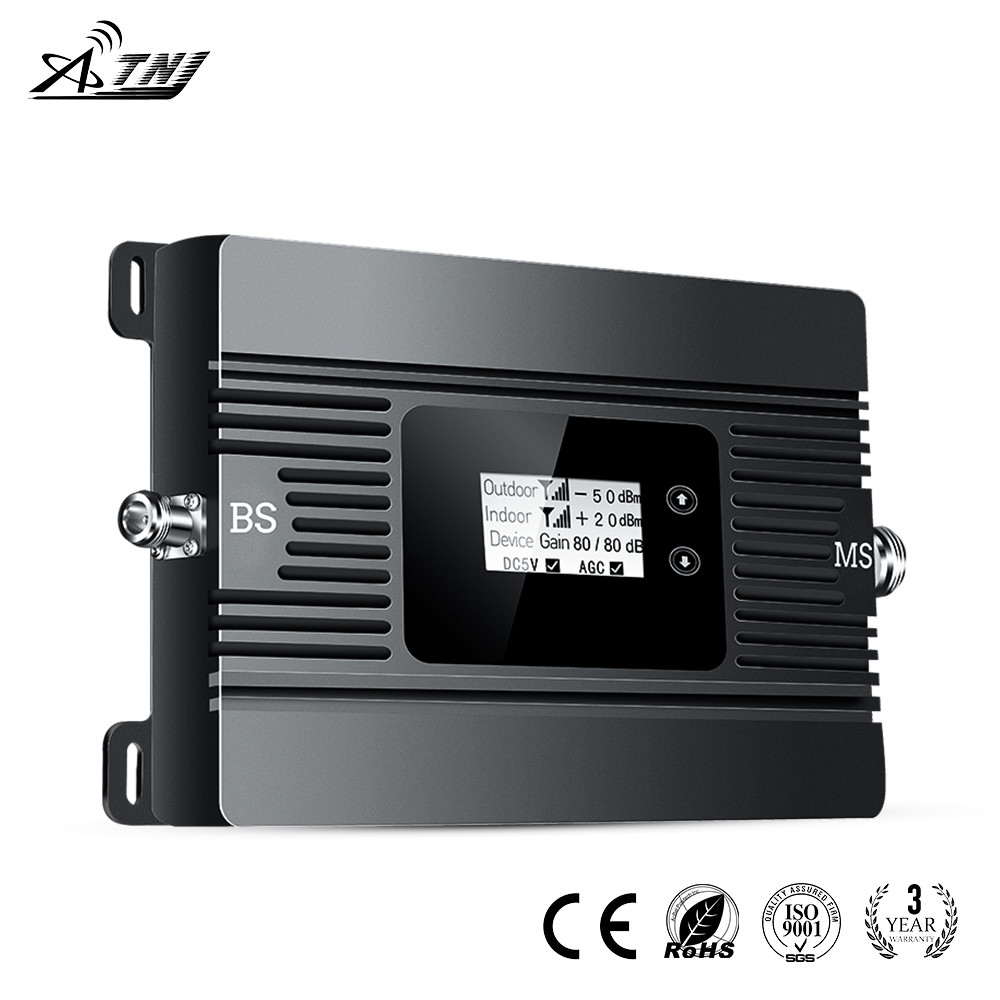

Single Band 850MHz Cell Phone Signal Amplifier Cell Phone Booster

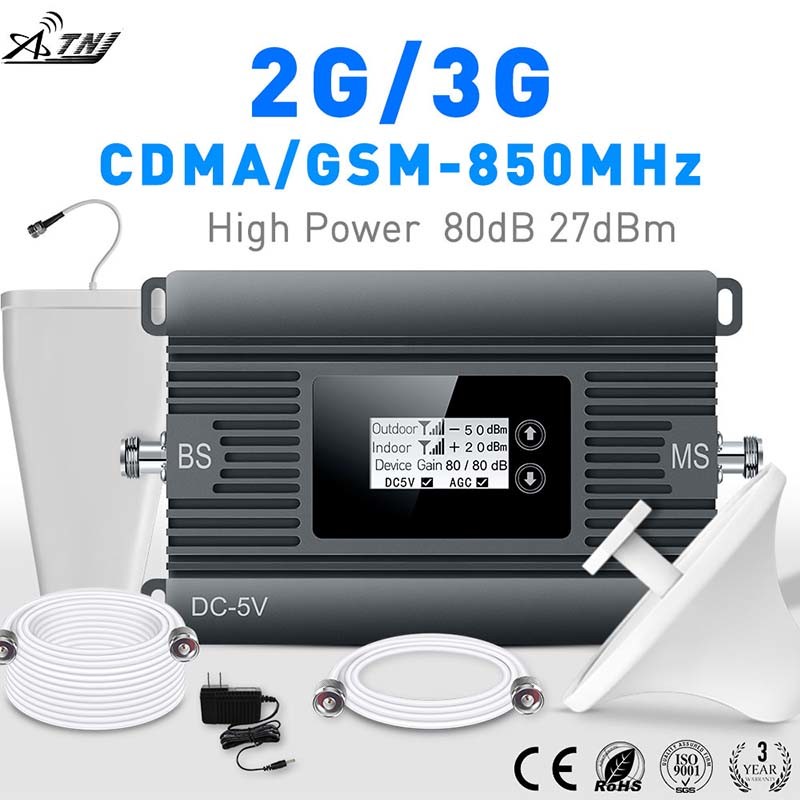

2G/3G Single Band 850MHz Mobile Signal Ampilifier Repeater Cell Phone Booster
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz |
|
Downlink |
869-894MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz |
|
|
Gain |
80±2dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|

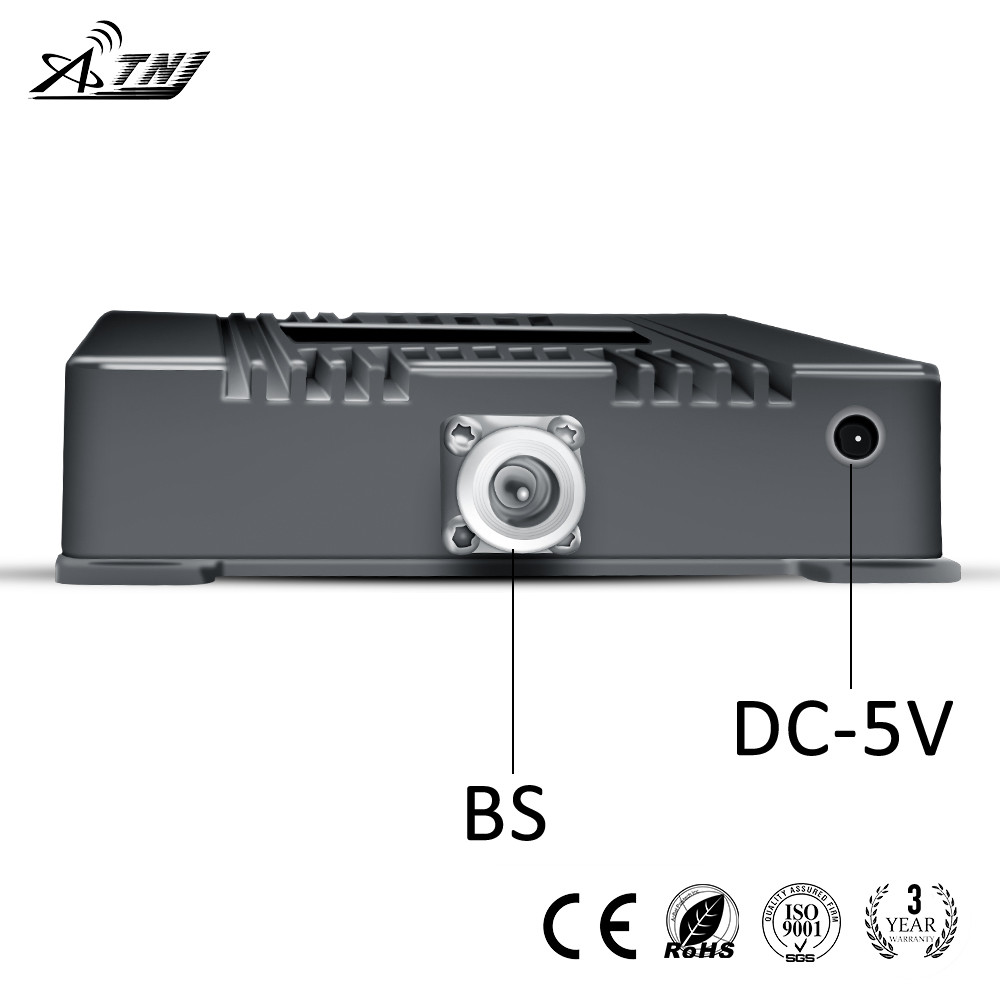

RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Trademark |
ATNJ |
|
|
HS Code |
8543709200 |
|
Further detail pls click here for downloading the products specification:
CDMA 850MHz B011A Signal Repeater.pdf
Automatic dormancy when no user make the calling.
Automatic alarm when installation mistake and provide the according solution.
Automatic adjust the system gain to avoid the repeater self-excitation.
initiative reminding when the device was damaged.
Product Description
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. why should you buy from us not from other suppliers?
1. Competitive price and high quality: Our workers with more than 7 years working experience, so our items is low cost and high productive efficiency. 2. Antenna project customization service: Our employed engineers are with 10 years working experience.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
