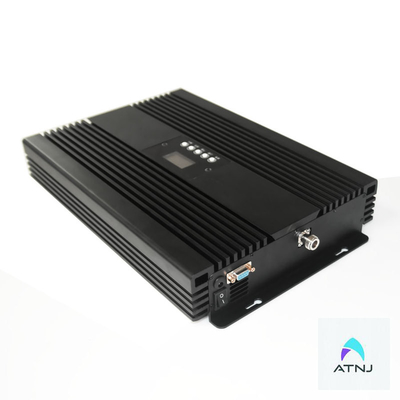

5 Band Mobile Signal Booster Multi Band Repeater with High Gain and Low Interference

Name: 5 Band Mobile Signal Booster Multi Band Repeater with High Gain and Low Interference
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: AT-5 Bands
Price: 700.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: AT-5 Bands

Trading Properties

Minimum Order Quantity: 5Pcs

Price: USD+650-750+kit

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

2100MHz Multi Band Repeater

27dBm Multi Band Repeater

ROHS Multi Band Repeater

Specifications

Band Frequency Range:	Customized	Gain:	85dB
Output power:	27dBm	Color:	Grey ,Customized
AGC Intelligent function:	Done,31dB @ 1dB/ Step	ALC Intelligent function:	Done
MGC:	Done	In-band Ripple:	≤ 3dB
VSWR:	<=2	Noise Figure:	≤ 5dB
System Delay:	≤ 5sμ	RF Connect Type:	N/Female
Power Supply:	AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter)	Inter-Modulation Attenuation ACPR:	≤ -40dBc / 30kHz (measured Under Rated Output Power)
Weight:	8.5kg	Packing size:	48x46x18cm
Rf Connector:	N-Female	Lightning Protection:	With Lightning Protection
Support Frequency Range:	Customized	Device Warranty:	3 Years, Free Repairment
Origin:	ATNJ	Supported Standards:	GSM, CDMA, WCDMA, LTE, Etc.
Mgc Function:	Done
High Light:	85dB Multi Band Repeater , DC24V 5A Multi Band Repeater , TUV 85dB Cellular Signal Amplifier

Product Description

Full Netcom 2G 3G 4G 5G Multi Band Repeater cellular signal amplifier Indoor Repeater

ATNJ Five-band full Netcom 2G 3G 4G 5G Multi Band Repeater cellular signal amplifier Indoor Repeater

5 BAND MOBILE SIGNAL BOOSTER PRODUCT PARAMETER INDEX

Band5 CDMA 850	825-835MHz/870-880MHz(Uplink / Downlink )
Band8 GSM 900	889-915MHz/934-960MHz(Uplink / Downlink )
Band3 DCS 1800	1710-1755MHz/1805-1850MHz(Uplink / Downlink )
Band1 WCDMA 2100	1940-1955MHz/2130-2145MHz(Uplink / Downlink )
FDD-LTE 1800	1755-1785MHz/1850-1880MHz(Uplink / Downlink )
TDD-LTE 2600	2575-2675MHz(Uplink / Downlink )

	Uplink	Downlink
Max Gain	75	80
Max Gain error	3±	3±
ALC Working Range	≥20	≥20
Passband Ripple	≥6	≥6
Receiver Sensitivity	≥90	...
Max Power	20±3	27±3
Spurious Emission	≤-36dBm/100KHz	≤-36dBm/100KHz
Intermodulation Attenuation	≤-45	≤-45
VSWR	≤25	≤25
System Delay	≤2μs

5 Band Mobile signal booster Parameter index

Working Voltage	DC24V
Working Current	<5A
Power Supply	AC 100~240V 50/60Hz
Working Temperature	-25°c~+55°c
Working Relative Humidity	≤85°c
RF connector	N-K
FDDI connector	FC/APC
Dimensions	416X268X71mm
Weight	8.5kg

Further detail pls click here for downloading the products specification:

Selling Point

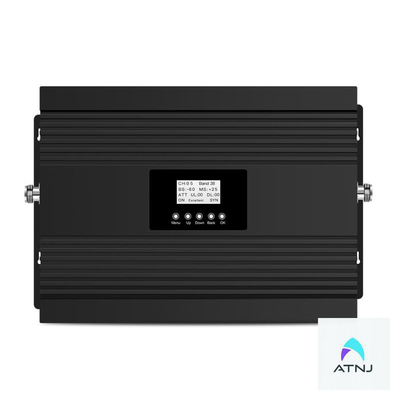

⭐ Intelligent to guide the installation with LCD .

⭐ Real time display the signal strength .

⭐ Automatic dormancy when no user make the calling .

⭐ Automatic alarm when installation mistake and provide the according solution .

⭐ Automatic adjust the system gain to avoid the repeater self-excitation .

⭐ Initiative reminding when the device was damaged .

⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .

⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

⭐ A variety of appearance customization.

5 Band Mobile signal booster Installation Diagram 5 Band Mobile Signal Booster Multi Band Repeater with High Gain and Low Interference 0

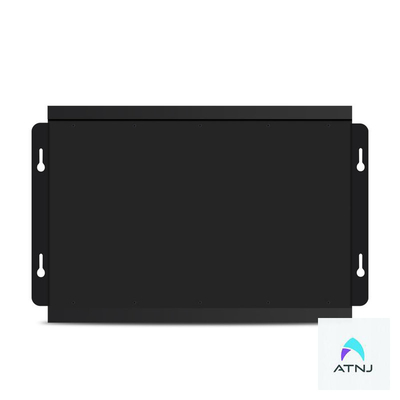

Signal Booster Structure Size

5 Band Mobile Signal Booster Multi Band Repeater with High Gain and Low Interference 1

Where To Use

5 Band Mobile Signal Booster Multi Band Repeater with High Gain and Low Interference 2

5 Band Mobile Signal Booster Multi Band Repeater with High Gain and Low Interference 4

We are manufacturer, and have our own factory.

FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5.How it works?

1.Receive Signal:The boosters antenna reaches out to the cell tower to access voice and data signals.

2.Boost Signal:The booster receives the outside signal, amplifies it up to 32x, and sends it to the inside antenna.

3.Expands Signal:The inside antenna broadcasts the boosted signal to devices inside the home.

6. Please feel free to contact us if any other questions.
