Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-5 Bands
Document: AT008 1W Powerful Five Band...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+650-750+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Band Frequency Range: |
Customized |
Gain: |
85dB |
Output Power: |
27dBm |
Color: |
Grey ,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC: |
Done |
In-band Ripple: |
≤ 3dB |
VSWR: |
<=2 |
Noise Figure: |
≤ 5dB |
System Delay: |
≤ 5sμ |
RF Connect Type: |
N/Female |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Weight: |
8.5kg |
Packing Size: |
48x46x18cm |
Rf Connector: |
N-Female |
Lightning Protection: |
With Lightning Protection |
Support Frequency Range: |
Customized |
Device Warranty: |
3 Years, Free Repairment |
Origin: |
ATNJ |
Supported Standards: |
GSM, CDMA, WCDMA, LTE, Etc. |
Mgc Function: |
Done |
Band Frequency Range: |
Customized |
Gain: |
85dB |
Output Power: |
27dBm |
Color: |
Grey ,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC: |
Done |
In-band Ripple: |
≤ 3dB |
VSWR: |
<=2 |
Noise Figure: |
≤ 5dB |
System Delay: |
≤ 5sμ |
RF Connect Type: |
N/Female |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Weight: |
8.5kg |
Packing Size: |
48x46x18cm |
Rf Connector: |
N-Female |
Lightning Protection: |
With Lightning Protection |
Support Frequency Range: |
Customized |
Device Warranty: |
3 Years, Free Repairment |
Origin: |
ATNJ |
Supported Standards: |
GSM, CDMA, WCDMA, LTE, Etc. |
Mgc Function: |
Done |

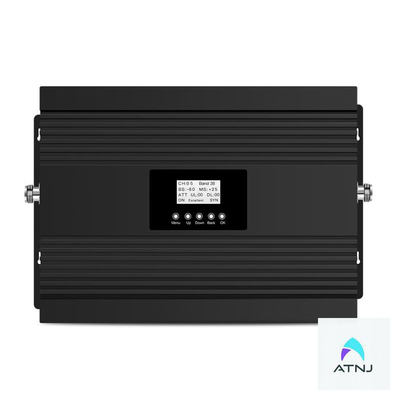

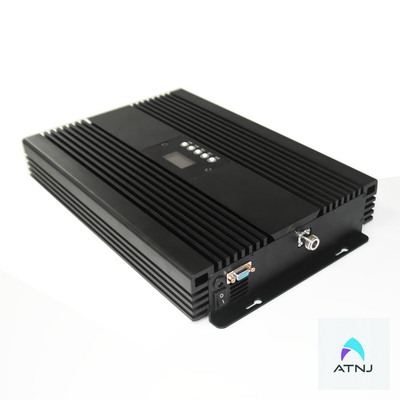

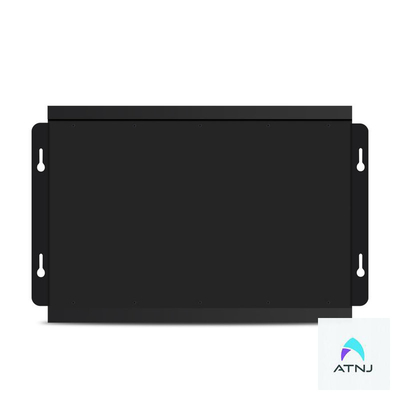

Full Netcom 2G 3G 4G 5G Multi Band Repeater cellular signal amplifier Indoor Repeater
ATNJ Five-band full Netcom 2G 3G 4G 5G Multi Band Repeater cellular signal amplifier Indoor Repeater
|
Band5 CDMA 850 |
825-835MHz/870-880MHz(Uplink / Downlink ) |
|
Band8 GSM 900 |
889-915MHz/934-960MHz(Uplink / Downlink ) |
|
Band3 DCS 1800 |
1710-1755MHz/1805-1850MHz(Uplink / Downlink ) |
|
Band1 WCDMA 2100 |
1940-1955MHz/2130-2145MHz(Uplink / Downlink ) |
|
FDD-LTE 1800 |
1755-1785MHz/1850-1880MHz(Uplink / Downlink ) |
|
TDD-LTE 2600 |
2575-2675MHz(Uplink / Downlink ) |
|
|
Uplink |
Downlink |
|
Max Gain |
75 |
80 |
|
Max Gain error |
3± |
3± |
|
ALC Working Range |
≥20 |
≥20 |
|
Passband Ripple |
≥6 |
≥6 |
|
Receiver Sensitivity |
≥90 |
... |
|
Max Power |
20±3 |
27±3 |
|
Spurious Emission |
≤-36dBm/100KHz |
≤-36dBm/100KHz |
|
Intermodulation Attenuation |
≤-45 |
≤-45 |
|
VSWR |
≤25 |
≤25 |
|
System Delay |
≤2μs |
|
|
|
|
|
5 Band Mobile signal booster Parameter index
|
Working Voltage |
DC24V |
|
Working Current |
<5A |
|
Power Supply |
AC 100~240V 50/60Hz |
|
Working Temperature |
-25°c~+55°c |
|
Working Relative Humidity |
≤85°c |
|
RF connector |
N-K |
|
FDDI connector |
FC/APC |
|
Dimensions |
416X268X71mm |
|
Weight |
8.5kg |
Further detail pls click here for downloading the products specification:
Selling Point
⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
⭐ A variety of appearance customization.
5 Band Mobile signal booster Installation Diagram
Signal Booster Structure Size
Where To Use
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5.How it works?
1.Receive Signal:The boosters antenna reaches out to the cell tower to access voice and data signals.
2.Boost Signal:The booster receives the outside signal, amplifies it up to 32x, and sends it to the inside antenna.
3.Expands Signal:The inside antenna broadcasts the boosted signal to devices inside the home.
6. Please feel free to contact us if any other questions.
