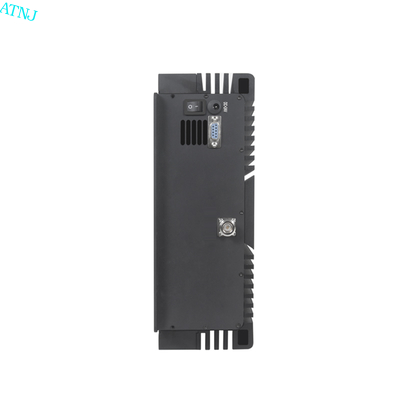

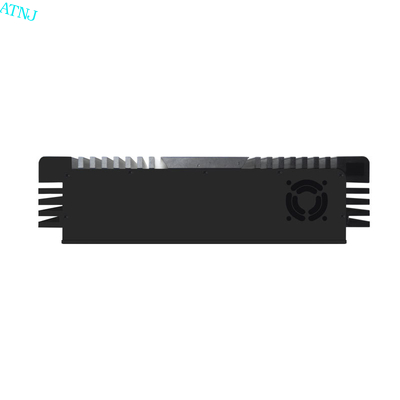

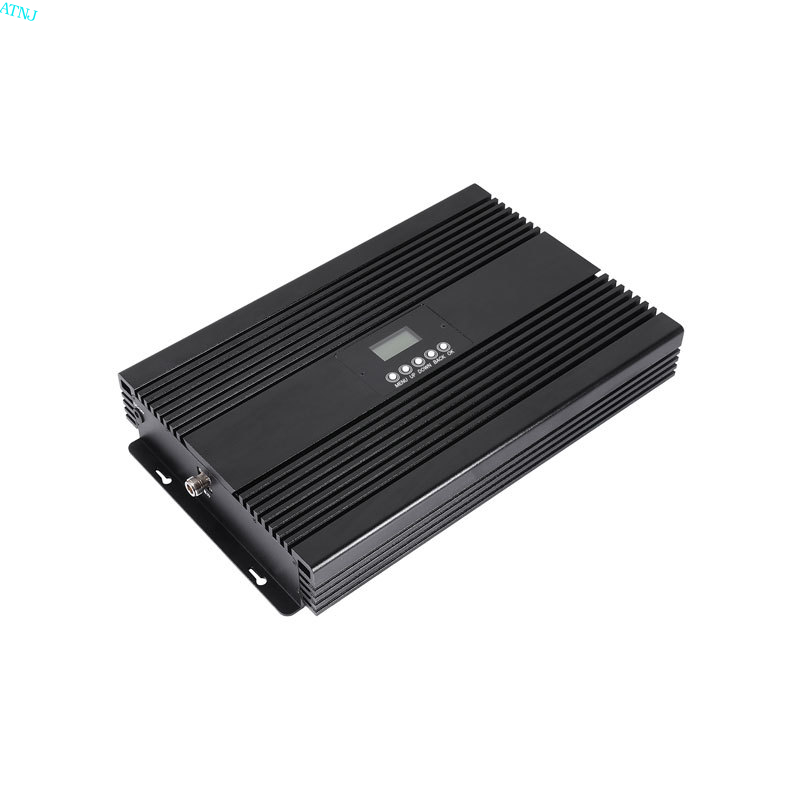

27dBm Quad Band 800 900 1800 2100MHz 4G 5G Repeater with 80dB Gain

27dBm Quad Band 800 900 1800 2100MHz 4G 5G Repeater with 80dB Gain

Brand Name:	ATNJ
Model Number:	AT-27-L8GDW
MOQ:	5Pcs
Price:	USD+550-580+kit
Payment Terms:	T/T,Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability:	1000+unit+per day.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS，CCC，TUV,BV， ISO

Band Frequency Range:

B20 800+B8 900+B3 1800+B1 2100

Gain:

80dB

Output Power:

27dBm

AGC Intelligent Function:

Done,31dB @ 1dB/ Step

ALC Intelligent Function:

Done

MGC:

Done

In-band Ripple:

≤ 3dB

VSWR:

<=2

Noise Figure:

10dB

System Delay:

≤ 6sμ

RF Connect Type:

N/Female

Weight:

9kg

Packing Size:

48x46x18cm

RF Connector:

N-Female

Lightning Protection:

With Lightning Protection

Support Frequency Range:

Customized

Device Warranty:

3 Years, Free Repairment

Mgc Function:

Done

Packaging Details:

Standard neutral packing,48x46x18cm(1 kit)

Supply Ability:

1000+unit+per day.

Highlight:

4G 5G repeater with 80dB gain

quad band repeater 27dBm output

multi band repeater 800-2100MHz

Product Description

27dBm Quad Band 800/900/1800/2100MHz 2G/3G/4G/5G Repeater System

Product Attributes

Attribute	Value
Band Frequency Range	B20 800+B8 900+B3 1800+B1 2100
Gain	80dB
Output power	27dBm
AGC Intelligent function	Done, 31dB @ 1dB/Step
ALC Intelligent function	Done
MGC	Done
In-band Ripple	≤ 3dB
VSWR	<=2
Noise Figure	10dB
System Delay	≤ 6µs
RF Connect Type	N/Female
Weight	9kg
Packing size	48×46×18cm
Lightning Protection	With Lightning Protection
Support Frequency Range	Customized
Device Warranty	3 years, Free repairment

Product Features

Improves any four mobile networks simultaneously
LCD displays input/output signal strength
Auto isolation detection function
Auto gain control and auto level control
Auto uplink noise reduction to avoid disturbing BTS
Smart LCD guides installation
Optional OMS Lite for remote/local control and monitoring

Technical Specifications

P/N	AT-27-L8GDW	B8 (900MHz)	B3 (1800MHz)	B1 (2100MHz)	B20 (800MHz)
Frequency Range	Uplink	880-915MHz	1710-1785MHz	1920-1980MHz	832-862MHz
Frequency Range	Downlink	925-960MHz	1805-1880MHz	2110-2170MHz	791-821MHz
Bandwidth	35MHz \| 75MHz \| 60MHz \| 30MHz
Max. Gain	Uplink	70±3 dB	70±3 dB	70±3 dB	70±3 dB
Max. Gain	Downlink	80±3 dB	80±3 dB	80±3 dB	80±3 dB
Manual Gain Control	31 dB in step of 1 dB
Automatic Gain Control	≧ 20 dB
Gain Flatness (per sub-band)	≦ ±4 dB (peak-to-peak)
Max. Input Power Without Damage	0 dBm
Output Power	Uplink	17±2 dBm	17±2 dBm	17±2 dBm	17±2 dBm
Output Power	Downlink	27±2 dBm	27±2 dBm	27±2 dBm	27±2 dBm
Spurious Emission	9KHz-1GHz	≦ -36dBm
Spurious Emission	1GHz-12.75GHz	≦ -30dBm
ACRR	±20/100MHz	≦-36dBc/30KHz
ACRR	±40/200MHz	≦-40dBc/30KHz
EVM	≦ 8%
Frequency Stability	≦ ±0.01 ppm
Noise Figure	10dB
VSWR	≦ 2
System Delay	≦ 6 µs
RF Connector	N-Female
Impedance	50 Ω
Power Supply	Input: AC100~240V, 50/60 Hz; Output: 24V8A
Power Consumption	≦ 85W
Dimensions	413×268×70mm
Weight	≦ 9kg
IP Rating	IP40
Operating Temperature	-25°C to 55°C
Control & Monitoring	Local/Remote (Optional)
