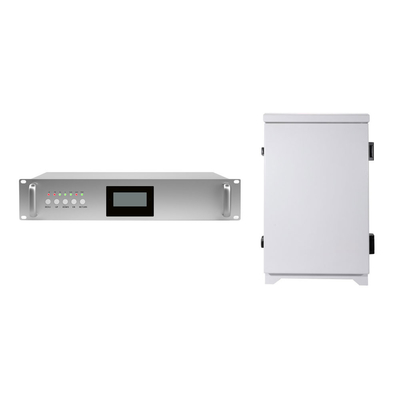

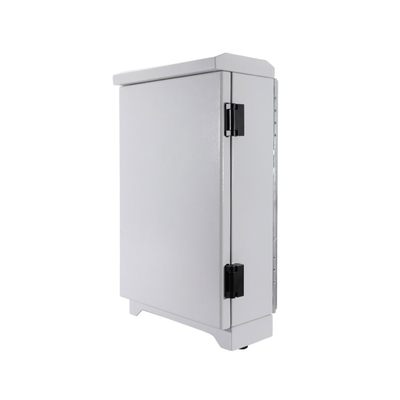

5Watt Digital Optical Rpeater System 37dBm Digital Optical Tri band 900/1800/2100MHz Amplifier DAS Repeater
| 900MHz Frequency Range:: | 880-915MHz / 925-960MHz | 1800MHz Frequency Range:: | 1710-1785MHz / 1805-1880MHz |
| 2100MHz Frequency Range:: | 1920-1980MHz / 2110-2170MHz | Device Gain: | 90 ±2dB |
| Device Output power: | UL: 27± 2 DBm, DL: 37 ± 2 DBm | RF connectoer: | N/Female |
| Single gross weight:: | 25 Kg |
5Watt Digital Optical Rpeater System 37dBm Digital Optical Tri band 900/1800/2100MHz Amplifier DAS Repeater
Digital Optical Band Selective DAS Repeater System
A digital optical fiber repeater is a communication device designed to amplify, regenerate, and extend digital optical signals transmitted over fiber-optic networks. Unlike analog repeaters, it processes signals in the digital domain to mitigate noise and distortion.
2. Digital Signal Processor (DSP): Performs signal regeneration, error correction, clock recovery, and noise reduction.
3. Electrical-to-Optical (E/O) Converter: Re-transmits the regenerated digital signal as amplified optical pulses.
Technical Specifications:
| P/N: DS-OPTGDW-37 | MU | RU | |
|
Frequency Range |
B8 (900) Uplink | 880-915 MHz (adjustable) | 880-915 MHz (adjustable) |
| B8 (900)Downlink | 925-960 MHz (adjustable) | 925-960 MHz (adjustable) | |
| B3 (1800) Uplink | 1710-1785 MHz (adjustable) | 1710-1785 MHz (adjustable) | |
| B3 (1800) Downlink | 1805-1880 MHz (adjustable) | 1805-1880 MHz (adjustable) | |
| B1 (2100)Uplink | 1920-1980 MHz(adjustable) | 1920-1980 MHz(adjustable) | |
| B1 (2100)Downlink | 2110-2170 MHz (adjustable) | 2110-2170 MHz (adjustable) | |
| Number of Units | 1 | 4,8,16,32,64(optional) | |
| Max Gain | 90 ±2dB | ||
| Manual Gain Control | 31 dB in step of 1 dB | ||
| Automatic Gain Control | ≧20 dB | ||
| Gain Flatness | ≦ 6 dB (peak to peak) | ||
| Max. Input Power without Damage | Uplink | -10 dBm | |
| Downlink | -10 dBm | ||
| Output Power | Uplink | 27± 2 dBm | |
| Downlink | 37 ± 2dBm | ||
| Noise Figure | UL: ≦ 6 dB | ||
| EVM | ≤8% | ≤8% | |
| VSWR | ≦ 1.8 | ||
| System Delay | ≦15 μs | ||
| RF Connector | N-Female | ||
| Impedance | 50Ω | ||
| Optical Output Power | ≧-9 dBm | ||
| Optical Wavelength | 1330 nm/1270 nm (DDM) | ||
| Fiber | Single Mode | ||
| Fiber Connector | LC/PC*4 | FC/PC*2 | |
| Power Supply | AC110~220V | AC110~220V | |
| Power Consumption | ≦ 85 W | ≦ 245 W | |
| Dimensions | 416*268*101mm | 400*595*200mm | |
| Weight | ≦ 15 kg | ≦ 25 kg | |
| IP Rating | IP40 | IP65 | |
| Operating Temperature | -25~55 ℃ | ||
| Local & Remote Control | Local | Via RJ45/Wi-Fi App | |
| Remote | Via Wireless Modem (optional) | ||
FAQ
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
-
