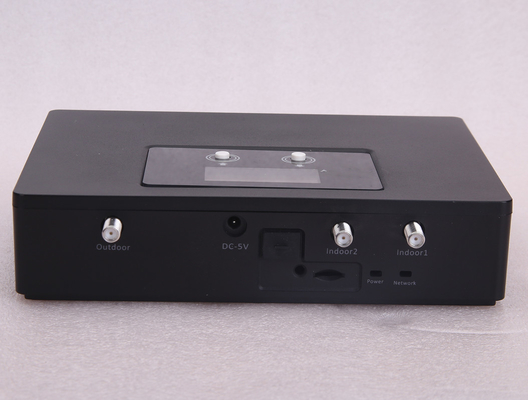

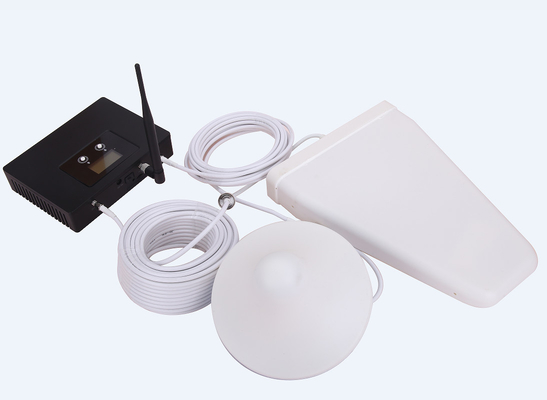

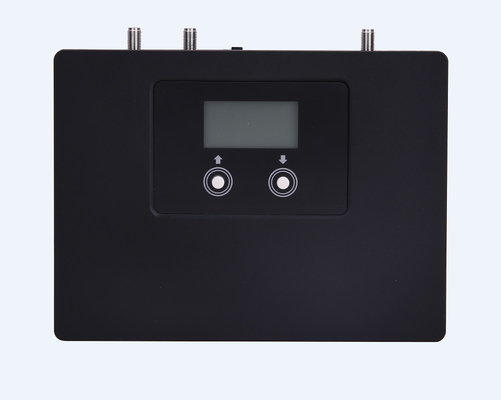

ATNJ Network Repeater NR Mobile Signal Repeater 4G 5G Cellphone Signal Booster Repeater

ATNJ network repeater NR mobile signal repeater 4G 5G cellphone signal booster repeater

A mobile signal amplifier, or cell phone signal booster, functions by capturing weak cellular signals through an external antenna, amplifying these signals using an amplifier, and rebroadcasting the strengthened signals via an internal antenna within a specific coverage area. This process enhances cell phone reception, reduces dropped calls, and improves data speeds for users by boosting the signal strength and extending cell phone coverage. Proper installation and compliance with frequency regulations are essential for optimal performance.

Technical Specifications

Coverage capacity (in m sq) :300sqm ( 3300 ft²)
Up-link freq : 703-733MHz/ 791-821MHz
Down-link freq: 758-788MHz/ 832-862MHz
Up-link Gain : 65±2dB
Down-link Gain : 70±2dB
Power Output : 17-20dBm
IP-Code: IP40
Size (mm) :181×142×33
Booster Weight: 1.2 kg
Power supply Input / output : Input AC90~264V, output DC5V/2A
Energy Consumption (kW/h): 0.01 kW/h

How does it work?

1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.

2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
