WIFI Repeater Amplifier
>

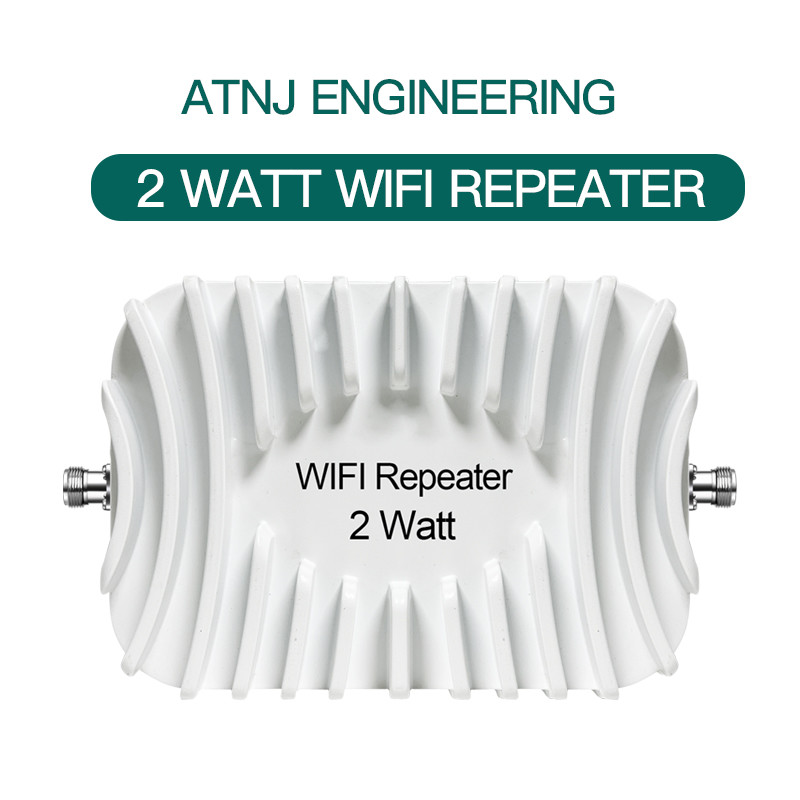

ATNJ Engineering 2 Watt 33dBm 5.8GHz WIFI Repeater Amplifier High Power

ATNJ Engineering 2 Watt 33dBm 5.8GHz WIFI Repeater Amplifier High Power

Brand Name: ATNJ
Model Number: ATNJ58Gi2000P
MOQ: 1
Price: USD+650-750+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
Booster Model::
ATNJ58Gi2000P
Operating Frequency::
5000~5875MHz
Channel Width::
20Mhz&40Mhz&80Mhz
Operation Mode::
Bi-directional, Half-duplex, Time Division Duplex
Connector Type::
To Radio N Female (hole Inside). To Antenna N Female (pin Inside)
Repeater Output ::
2000mW (33dBm)
Repeater Input ::
0 ~ 20dBm
Transmit Gain::
15 – 18dB
Outside Receiver Gain::
11 – 14dB
Booster Weight::
110g
Operating Temperature:
-20°C To +70°C
Warranty:
3 Years
Supply Ability:
1000+unit+per day.
High Light:

WIFI Repeater Amplifier 2 Watt

,

WIFI Repeater Amplifier 33dBm

,

ISO WIFI Repeater Amplifier

Product Description

High Power 5.8GHz 2 Watt 33dBm WIFI Repeater Amplifier





  ATNJ's family of WiFi boosters is designed for use in mobile and/or mesh wireless networking applications. Designed for bi-directional signal amplification, In contrast, traditional analog amplifier technologies can go into saturation or reduce transmit power as input signal fluctuates, negatively impacting signal quality and network performance. Can be used any 5.8GHz antenna that implements an N-Male connector. The small footprint and low profile design makes it an ideal solution for mounting on vehicles or in other space constrained applications.

  The ATNJ's 5.8GHz WiFi booster efficiently increases signal reach of any antenna by up to 200%-400%.



  The ATNJ's 5.8GHz WiFi booster are been used to increase the power and/or the signal for different products like:



- Routers

- Access points

- IP cameras

- Video senders

- Profesional photo cameras

- Profesional video cameras

- R/C helicopters, planes and cars

ATNJ Engineering 2 Watt 33dBm 5.8GHz WIFI Repeater Amplifier High Power 0

Features:

5.8GHz, Max. 2000mW output power;

Aluminum-alloy case by CNC, anti-interference;

Small size, Safe & Power saving;

Full kit, easy to install;

For house, office, UAV, IP cameras, RC equipment....

ATNJ Engineering 2 Watt 33dBm 5.8GHz WIFI Repeater Amplifier High Power 1

ATNJ Engineering 2 Watt 33dBm 5.8GHz WIFI Repeater Amplifier High Power 2

Technical Specifications:



SPECIFICATIONS
PARAMETERS
Booster Model
ATNJ58Gi2000P
Operating range
5000~5875MHz
Channel width
20Mhz&40Mhz&80Mhz
Supported standards
IEEE 802.11a/n
Operation mode
Bi-directional, half-duplex, time division duplex
Connector type
To radio N female (hole inside)
To antenna
N female (pin inside)
Output power
2000mW (33dBm)
Input power
0 ~ 20dBm
Transmit gain
15 – 18dB
Receiver gain
11 – 14dB
Noise figure
≤3.5dB typical
Frequency response
±1dB over operating range
Operating temperature
-20°C to +70°C
Operating humidity
Up to 75% relative humidity
Material
Cast aluminum
LED light
Power status LED and activity status LED
Booster weight
110g
Booster size
8.4 x 5.4 x 2cm



Further detail pls click here for downloading the products specification:

5.8GHz wifi repeater.pdf



FAQ
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are the factory, with good trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if there are any other questions.
