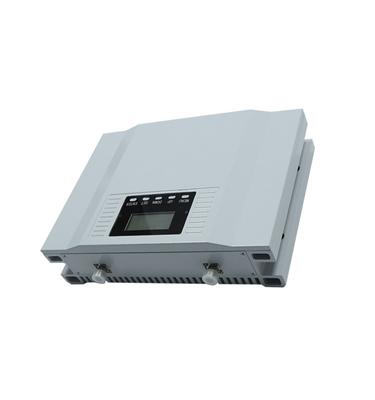

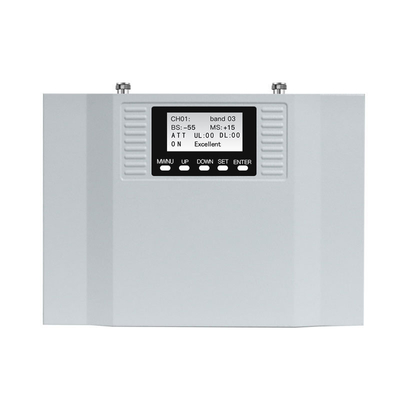

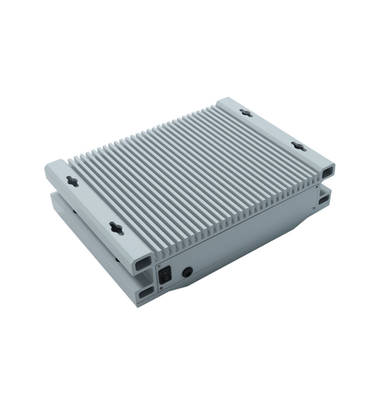

GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: JS-D-CDW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+360---480+kit

Packaging Details: Standard neutral packing,48x46x18cm(1 kit),

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                UMTS Tri Band Repeater, 1800MHz Tri Band Repeater, GSM Cellular Signal Booster


900MHz Frequency Range:	880-915MHz /925-960MHz	1800MHz Frequency Range:	1710-1785MHz / 1805-1880MHz
2100MHz Frequency Range:	1920-1980MHz / 2110-2170MHz	Bandwidth:	Wide Band,Supports From 0.2 To 20MHz Adjusted
Power Supply:	100---220V	WIFI Control&Monitor:	Done
Packing Weight:	5kg	Products Type:	Digital Band Selective Repeater

900MHz Frequency Range:	880-915MHz /925-960MHz
1800MHz Frequency Range:	1710-1785MHz / 1805-1880MHz
2100MHz Frequency Range:	1920-1980MHz / 2110-2170MHz
Bandwidth:	Wide Band,Supports From 0.2 To 20MHz Adjusted
Power Supply:	100---220V
WIFI Control&Monitor:	Done
Packing Weight:	5kg
Products Type:	Digital Band Selective Repeater

GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster

Product Description

Digital Band Selective Tri Bands 900/1800/2100MHz mobile signal repeater

ATNJ Digital RF repeater with industrial design, Special for mobile provider need, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ Digital RF repeater is easy to install and maintain,which could help signal providers get fast solution.

Selling Point

①Intelligent to guide the installation with LCD②Real time display the signal strength.Automatic dormancy when no user make the calling .③Automatic alarm when installation mistake and provide the according solution .

④Automatic adjust the system gain to avoid the repeater self-excitation .

⑤Initiative reminding when the device was damaged .

⑥Supports from 0.2 to 20MHz bandwidth adjusted(Customized) ,Supports 5G bandwidth,40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⑦WIFIMonitor+Control(Customized),NMS(network management system),Function Optional .

SPECIFICATIONS		PARAMETERS
Frequency Range		GSM 900MHz	890-915MHz/925-960MHz
		DCS 1800MHz	1710-1785MHz /1805-1880MHz
		UMTS 2100MHz	1920-1980MHz, 2110-2170MHz
Band Width		GSM 900MHz	25MHz, Supports from 0.2 to 20MHz adjusted by WIFI
		DCS 1800MHz	75MHz, Supports from 0.2 to 20MHz adjusted by WIFI
		UMTS 2100MHz	60MHz, Supports from 0.2 to 20MHz adjusted by WIFI
Gain		70dB
Automatic Gain Control		31dB
MGC (Step Attenuation)		31dB@ 1dB/Step
Output Power		17±3dBm
Spurious Emission	9 kHz -150 kHz/1kHz	≤-36dBm
	150 kHz - 30 MHz/10kHz	≤-36dBm
	30 MHz - 1 GHz/100kHz	≤-36dBm
	1 GHz- 12.75 GHz/1MHz	≤-30dBm
ACPR		Uplink Fully comply with 3GPP 36.106
		Downlink Fully comply with 3GPP 36.106
Unwanted emissions		Fully comply with 3GPP 36.106
VSWR		≤2
Ripple	GSM 900MHz	≤3dB
	DCS 1800MHz	≤3dB
	UMTS 2100MHz	≤3dB
Noise Figure		≤8dB
Delay		≤5μs
I/O Impedance		50Q
RF Connector(Customers to Choose)		N-Type (Female)
Operating Temperature		-25°~+55°
Power Supply		DC 5V
Power consumption		≤75W
Environment Conditions		IP43
Humidity		≤90%
Weight		1.5kg
Remote NMS and WIFI Function		Support(Customzied)
Size		268×170×71mm

Product Usage

How It Works

Wireless network signal travels through the air in the form of waves. The outdoor antenna is designed to receive the weak signal

from the air and transmit it to the indoor booster. The booster amplifies the signal based on its frequency and emits the

amplified signal through the indoor antenna making it available for use.

FAQ

Q1 Could you send us antenna sample for qulification?
A : Yes, we will consider the antenna sample qulification as the first step of our long term coorperation, we will rebate the sample charge in further mass production order.

Q2 What's the minimum order of your company?
A : Our company didn't define the min order, we will offer any quantity demands.

Q3 May I visit your company?
A : We will be always right here waiting for you.

Q4 Are you a manufacture or a trading company?
A : We've manufactured mobile signal booster with Professional Technology for ten more years.

Q5 Do you accept customizable antenna?
A : Yes, we accept OEM & ODM.

Q6 What't your sample lead time?
A : We will ship within 15days after been paid.

Q7 What is your payment terms?

A : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
