Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-C03-800/1800
Document: 800+1800MHz C03 Mobile Sign...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+70---85+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
800MHz Frequency Range: |
832-862MHz / 791-821MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
Indoor Antenna: |
Ceiling Antenna * 2 |
Outdoor Antenna: |
Log Periodic Antenna |
Color: |
Black And Gold ,Customized |
Power: |
17-20dBm |
Gain: |
70dB |
Products Type: |
Amplificador Celular Cellboost, Mobile Single Booster Cell Phone Signal |
800MHz Frequency Range: |
832-862MHz / 791-821MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
Indoor Antenna: |
Ceiling Antenna * 2 |
Outdoor Antenna: |
Log Periodic Antenna |
Color: |
Black And Gold ,Customized |
Power: |
17-20dBm |
Gain: |
70dB |
Products Type: |
Amplificador Celular Cellboost, Mobile Single Booster Cell Phone Signal |

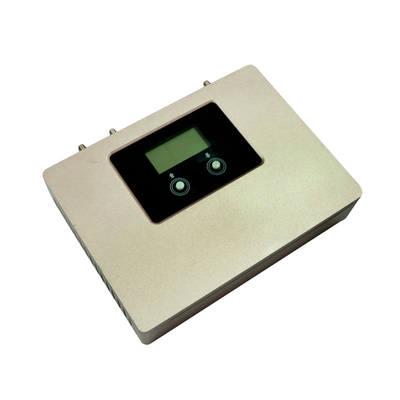

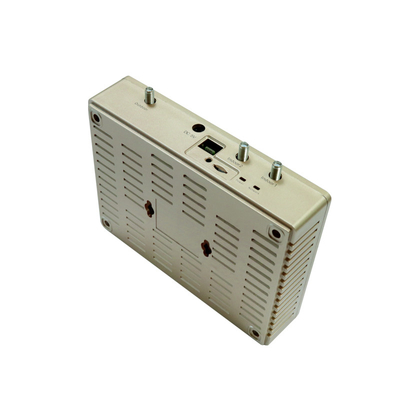

800/1800MHz 4G Signal Booster Cell Phone Repeater Kit With Indoor and Outdoor Antenna
Selling Point
1. Smart LCD : Show the real-time signal strength.
2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz, 1920-1980MHz |
|
Downlink |
791-821MHz, 2110-2170MHz |
|
|
Frequency Bandwidth |
30MHz & 60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
800+1800MHz C03 Mobile Signal Repeater.pdf
Product Description
Features:
1. Cost-effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.Expansion and extension of the signal of the base station. Optimization of the quality of the signal and source
3. High linear design, ALC function design, low interference to BTS.
4. Support any cellular devices (voice & data & video)
5. Wideband signal booster, or customize selective band booster.
6. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G, etc
Advantages:
1. Smart Function, Intelligent mode setting smart function called which can be activated via the front panel. users can adjust gain and choose working band by LED panel, This smart function is easier than DIP Switch, can set up parameters, It is a simple, safe, and effective way.
2. Auto Level Control
The 30dB ALC is used to maintain steady output power even when the donor source signal fluctuates.
3. ODM/OEM service is available.

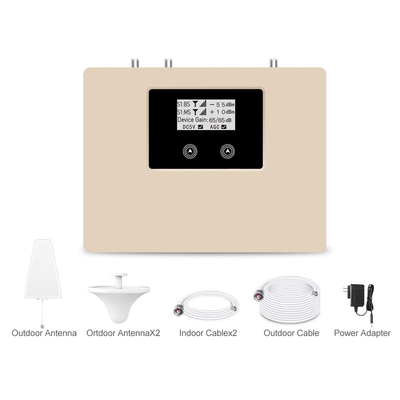

Packaging Including:
1. Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Ceiling antenna * 2
5. 5 meters cable * 2
6. 20 meters cable
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. Does the signal booster work have radiation or not ?
Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
5. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
Shipping
●We will send your parcel as soon as posiible after payment confirmed, Within 48 hours for normal,Except weekend and Chinaese holidays.
●Please provide your correct address,full name,and zip code.
●We generally would declare the parcel with lower value to aviod or lessen the Customs Taxs.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax.
●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years gaurantee period for our booster.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
