Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: MS-D
Document: DCS 1800MHz B011A Signal Re...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Brand Name: |
ATNJ |
Frequency Range: |
1710-1785MHz/1805-1880MHz |
Gain: |
80dB |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
Output Power: |
23-27dbm |
RF Connect Type: |
N/Female |
Color: |
Grey |
Coverage: |
200-700m2 |
Power Supply: |
AC 100-240V |
Products Type: |
Cellular Repeater, Signal Blocker |
Brand Name: |
ATNJ |
Frequency Range: |
1710-1785MHz/1805-1880MHz |
Gain: |
80dB |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
Output Power: |
23-27dbm |
RF Connect Type: |
N/Female |
Color: |
Grey |
Coverage: |
200-700m2 |
Power Supply: |
AC 100-240V |
Products Type: |
Cellular Repeater, Signal Blocker |

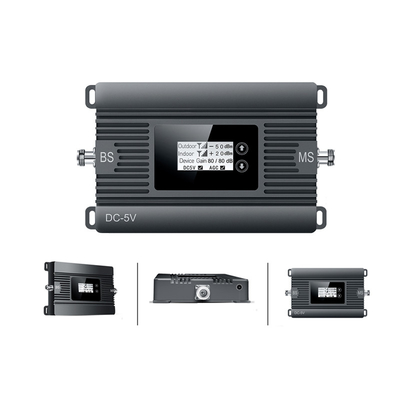

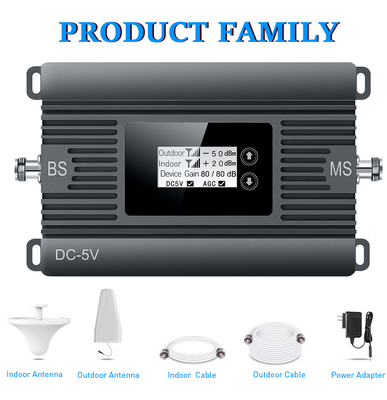

ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
Technical Specifications
SPECIFICATIONS | parameters | |
Frequency Range (Customers to Choose) | Uplink | 1710-1785MHz |
Downlink | 1805-1880MHz | |
Frequency Bandwidth (3dB Bandwidth) | 75Mhz | |
Gain | 80dB | |
Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
Auto Gain Control | 20dB Min. | |
Output Power(Customers to Choose) | 27dBm | |
Spurious Emission | ≤ -15dBm/30kHz | |
9kHz~1GHz: ≤ -36dBm/30kHz | ||
1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
In-band Ripple | ≤ 3dB | |
VSWR | <=2 | |
I/O Impedance | 50 Ω | |
Noise Figure | ≤ 5dB | |
System Delay | ≤ 5μs | |
RF Connector(Customers to Choose) | N (Female) | |
Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
Weight | ≤0.8 kg(Net) | |
Alarm Monitoring System | Alarm for uplink self-oscillation | |
Indication LED | Power supply |
Further detail pls click here for downloading the products specification:
DCS 1800MHz B011A Signal Repeater.pdf
Selling Point
Product Description
We have 10 years of experience packing and shipping abroad.
We would make sure the goods arrive safely.
We would help you choose the shipping option that makes the most sense for you.
Provide the destination of your shipment, sort your results by time or cost to find the most cost-effective shipping service.
A1 : We are factory, with trading service. We provide OEM/OEM service.
Q2 : Can I have a sample order? What is your MOQ?
A2 : Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
Q3 : Is it easy to set up your items?
A3 : Yes. We have a user manual and support technical support 24/7.
Q4 : What is your warranty time?
A4 : We promise 1-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Q5 : Do you accept OEM order and how long will you shipping after place an order?
A5 : We can manufacture according to customer's request and usually we can deliver goods 15-20 days after we receive your deposit.
Q6 : What is your payment terms?
A6 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
