| Brand Name: | ATNJ |
| Model Number: | AS-C03-900/1800 |
| MOQ: | 5Pcs |
| Price: | USD+70---85+kit |
| Packaging Details: | Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
Out Power Show 20dBm EGSM900 1800MHz Smart Mobile Signal Booster 2G 4G Repeater
With the help of this mobile phone repeater for home you´ll improve the quality of GSM calls. Some providers also use these frequencies for 3G and 4G mobile Internet, so, in this case, the signal repeater will improve 2G/3G&4G network as well.
Among other distinctive and helpful features of signal repeater, 2G/3G & 4G there are:

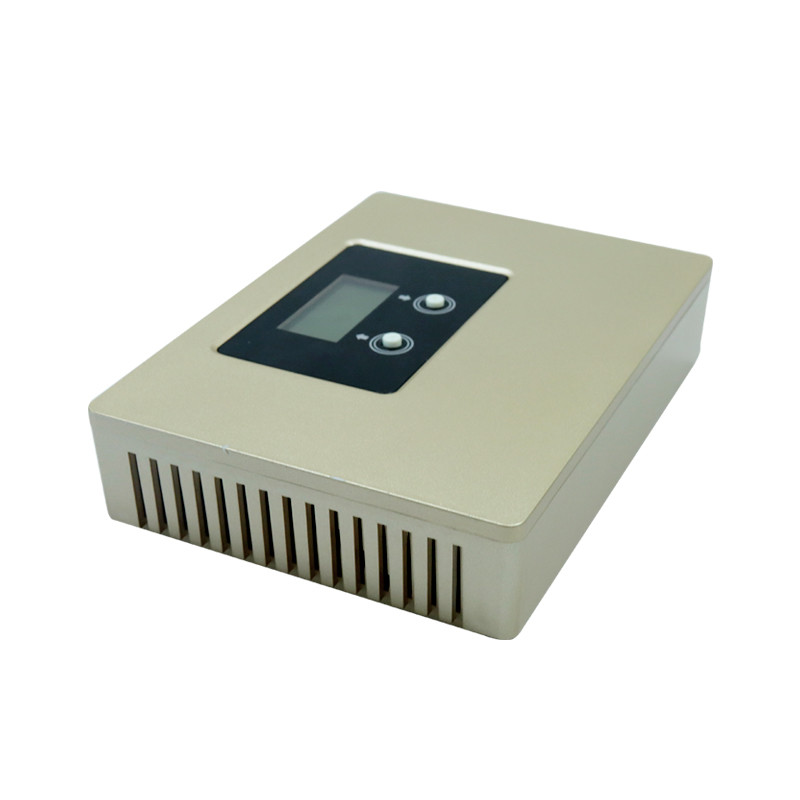

LCD screen showing outdoor signal and output value. The system will guide you through installation process and show you error tips with solutions.
Automatic adjustment of gain and signal basing on the individual signal reception conditions.
Sleep mode helping to save energy when you do not use mobile 2G/3G/ 4G Internet.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1710-1785MHz |
|
Downlink |
935-960MHz, 1805-1880MHz |
|
|
Frequency Bandwidth |
25MHz & 75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|

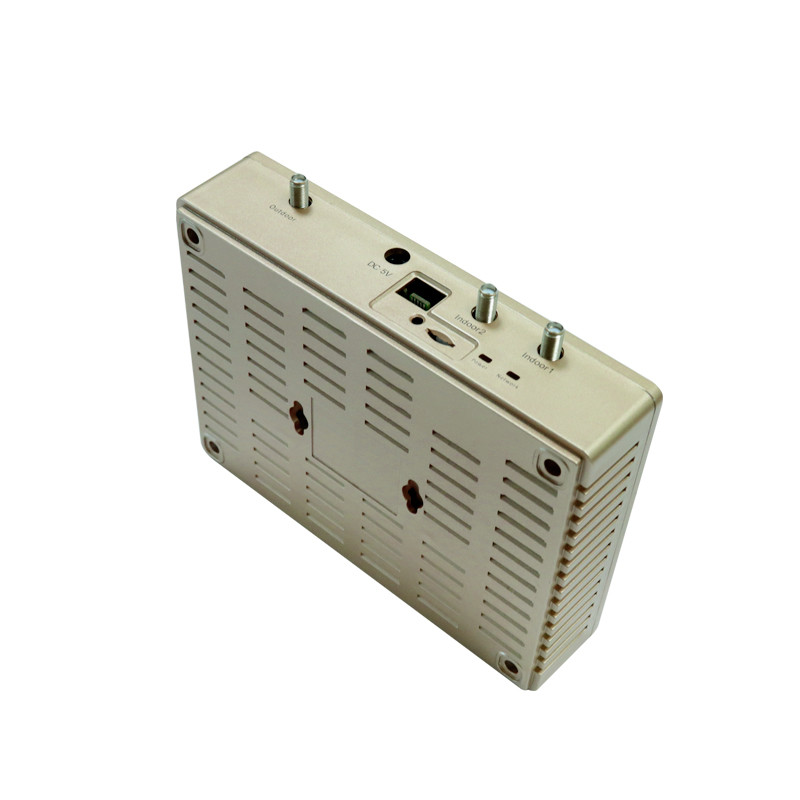

RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+1800MHz C03 Mobile Signal Repeater.pdf
Product Description
The advantages of this GSM LTE amplifier include:
LCD Display. Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
Sleep mode. In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.
Automatic adjustment of operation. The E900/1800 amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.
Compact size and high-tech design. The signal amplifier has a small size, light weight, advanced design and intelligent LCD display. It fits perfectly into any interior.
How Booster/Repeater Works?
1) The outside antenna receives the signal from the nearest mobile base station.
2) The outside antenna sends the received signal through the coax cable to the installed Repeater.
3) The repeater accepts the low signal and improves it.
4) The improved signal goes to the inside antenna through the connection coax cable.
5) The inside antenna send the improved good signal to your mobile phone.
Packaging Including:
1. Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Ceiling antenna * 2
5. 5 meters cable * 2
6. 20 meters cable
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
Shipping
●We will send your parcel as soon as posiible after payment confirmed, Within 48 hours for normal,Except weekend and Chinaese holidays.
●Please provide your correct address,full name,and zip code.
●We generally would declare the parcel with lower value to aviod or lessen the Customs Taxs.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax.
●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years gaurantee period for our booster.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
|
