Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB1800/2100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Products Type: |
4G Signal Booster |
Color: |
Gold Or Black Or White Or Cuztomized |
Device Connect Type: |
N/Female |
Weight: |
3.5kg |
OEM ODM Support: |
Yes |
Products Type: |
Signal Booster For Mobile Phone, Repetidor |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Products Type: |
4G Signal Booster |
Color: |
Gold Or Black Or White Or Cuztomized |
Device Connect Type: |
N/Female |
Weight: |
3.5kg |
OEM ODM Support: |
Yes |
Products Type: |
Signal Booster For Mobile Phone, Repetidor |

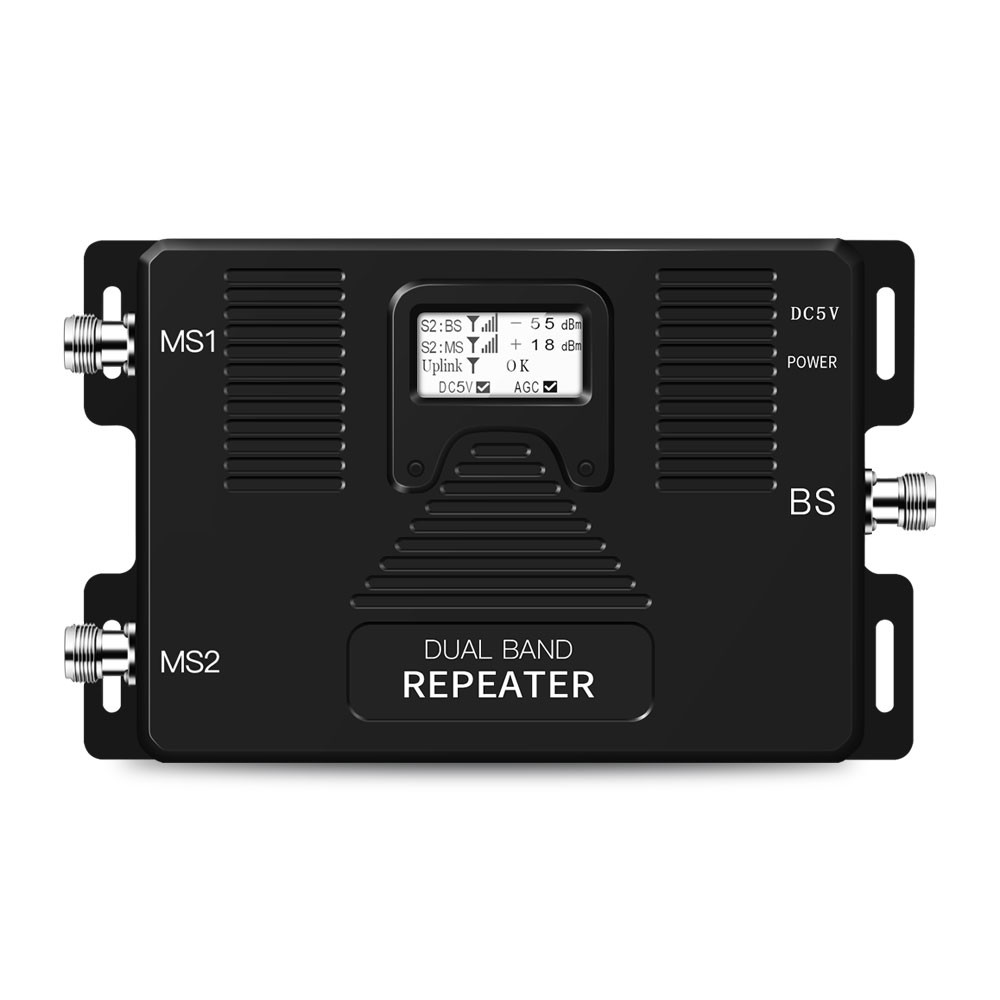

Dual Band 1800MHz 2100MHz Mobile Signal Boosters Output Power 17dBm
Customized Dual Output 1800+2100MHz mobile signal booster 2G 3G 4G cellular amplifier
General:
A mobile phone signal repeater provides the ultimate solution in any area where celluar commnuications cannot work well due to leak of signals.The repeater device features easy installation and operation,build-in door antennaand no interference.it could also improve indoor electromagnetism enviroments,protract cellular battery life and reduce radiation of cellphones.A mobile phone repeater is ideal use for house,home,office use.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz, 1920-1980MHz |
|
Downlink |
1805-1880MHz, 2110-2170MHz |
|
|
Frequency Bandwidth |
75MHz&60MHz |
|
|
Booster Gain |
68±3dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
17±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<= 2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Packing Weight |
≤3.5 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Intelligent LCD Guide |
Done |
|
Further detail pls click here for downloading the products specification:
1800+2100MHz A032 mobile signal repeater.pdf
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
We are manufacturer, and have our own factory.
FAQ:
Q1:Do you have CE or any other certification?
A:Yes,we CE, , ROHS and FCC certification,etc.
Q2:Can you give me a discount?
A:Please discuss with our sales.
Q3:How about gain and output power of your device?
A:Different models, gain and output power are different,for more details, please contact us.
Q4:How long is warranty period?
A:The warranty is 12 months. And we offer 7*24 technical support .
Q5:how many square meters can be covered?
A:For different models, the covered square meters are different.
Q6:Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
Q7:How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
