Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: A021-900/2100
Document: A021 900-2100.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+86---110+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
Band8: UL 890-915MHz; DL: 935-960MHz |
2100MHz Frequency Range: |
Band1: UL 1920-1980MHz; DL: 2110-2170MHz |
Connector: |
Two N Female Output |
Certification: |
CE ROHS CCC TUV ISO |
Trademark: |
ATNJ |
Products Type: |
Dual Band 900MHz And 2100MHz |
900MHz Frequency Range: |
Band8: UL 890-915MHz; DL: 935-960MHz |
2100MHz Frequency Range: |
Band1: UL 1920-1980MHz; DL: 2110-2170MHz |
Connector: |
Two N Female Output |
Certification: |
CE ROHS CCC TUV ISO |
Trademark: |
ATNJ |
Products Type: |
Dual Band 900MHz And 2100MHz |

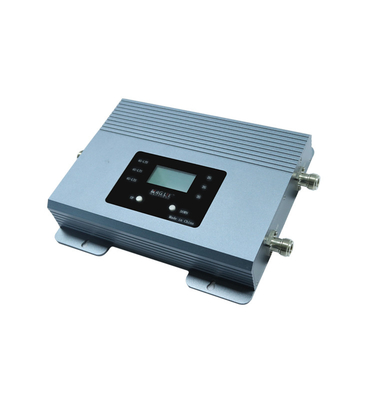

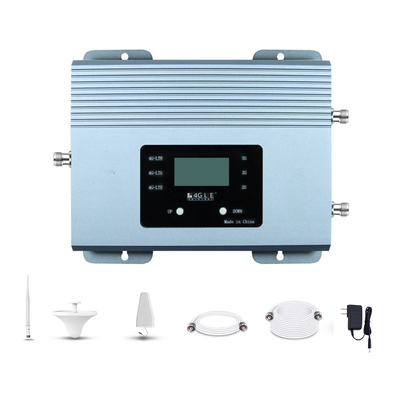

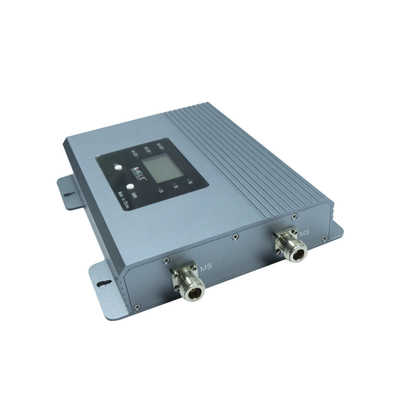

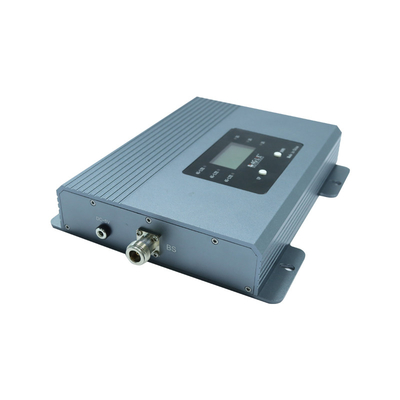

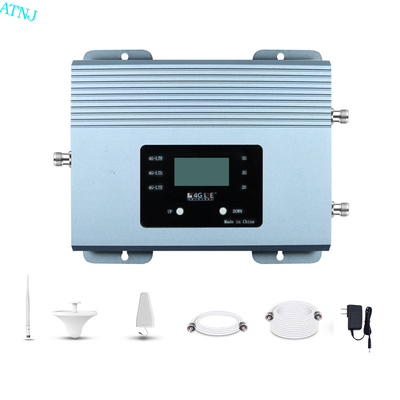

Real time output show 20dBm GSM900 LTE 4G 2100MHz Dual Band Smart Mobile Signal Booster 2G 3G 4G Repeater
Customized Dual Output 900+2100MHz mobile signal booster 2G 3G cellular amplifier
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
Feature:
- Strong output power, wide coverage area
- LCD display signal in real time
- High gain can support multiple loads
Technical Specifications
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 890-915MHz, 1920-1980MHz |
| Downlink | 935-960MHz, 2110-2170MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 25MHz&60MHz | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 3dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | N(Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Dimensions | 165*130*40 (mm) | |
| Weight | ≤0.8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Origin | Shenzhen | |
Further detail pls click here for downloading the products specification:
900+2100MHz A021 Mobile Signal Repeater.docx.pdf
We are manufacturer, and have our own factory.
FAQ:
Q1. Are mobile signal boosters safe?
CE and RoHS approvals guarantee that the product does not contain any hazardous substances.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
| Sample | 3-5 business days |
| <20 pcs | 7-15 days |
| 20-200 pcs | 15-24 days |
| >200 pcs | Negotiate |
Q5: Delivery Date of the sample by DHL/FedEx
| USA/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 5-7 days |
| African | 3-7 days |
Q6.Payment Method
T/T, Western Union, Paypal, and Credit Card are available, but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
