Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-BS-G
Document: EGSM 900MHz B07 Signal Repe...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+120---130+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Booster Gain: |
68±2dB |
Booster Power: |
17--20dBm |
Frequency Range: |
890-915MHz，935-960MHz |
Connector Type:: |
SMA/F |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G Voice |
Trademark: |
ATNJ |
Products Type: |
Signal Booster, Amplificateur De Signal Portable |
Booster Gain: |
68±2dB |
Booster Power: |
17--20dBm |
Frequency Range: |
890-915MHz，935-960MHz |
Connector Type:: |
SMA/F |
Material: |
Zinc Alloy ,Plastic |
Support Network: |
2G Voice |
Trademark: |
ATNJ |
Products Type: |
Signal Booster, Amplificateur De Signal Portable |

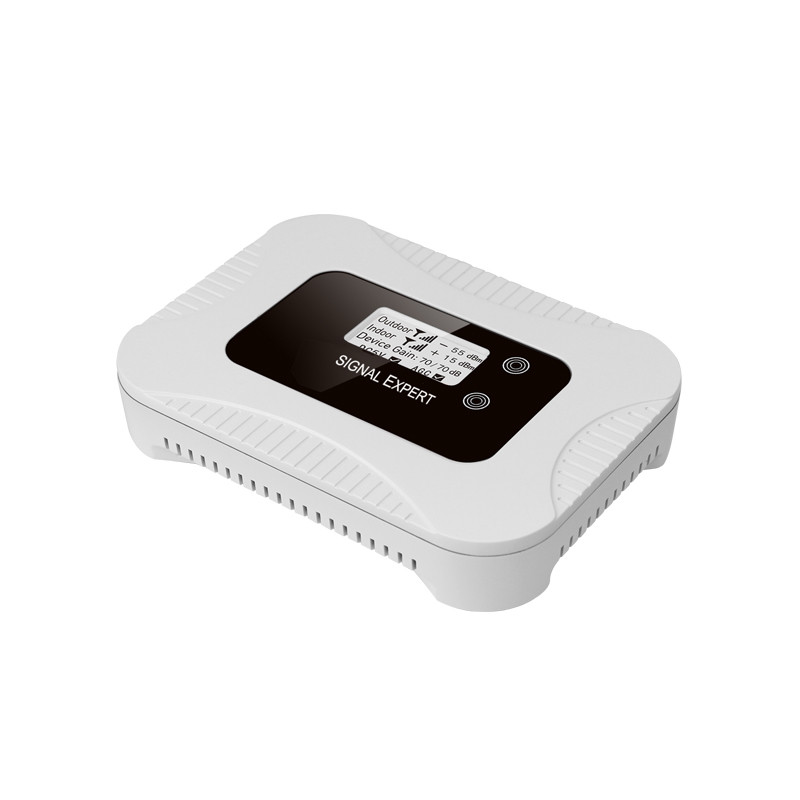

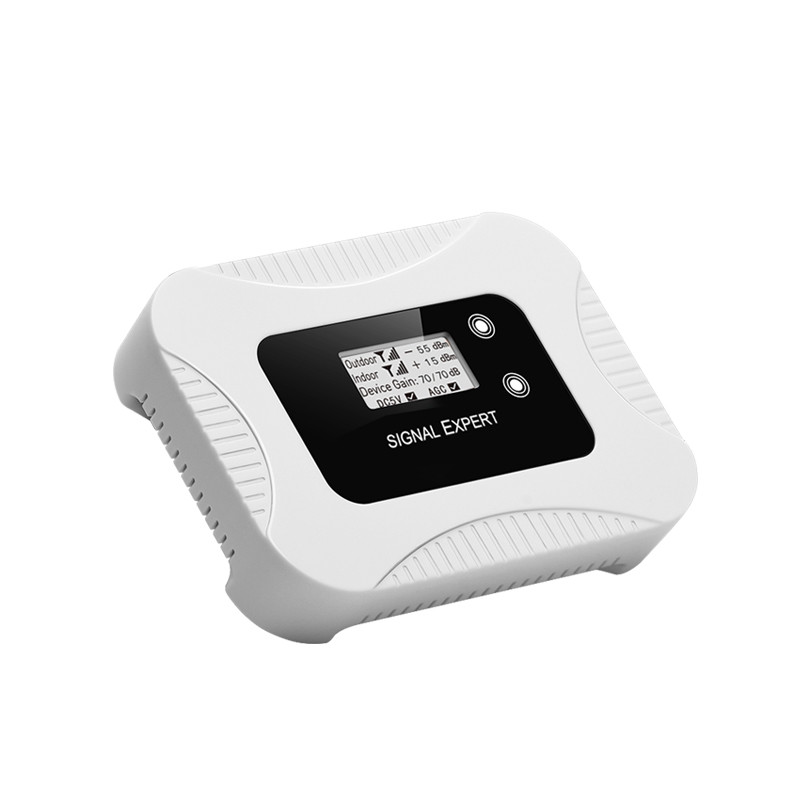

2G Voice 900MHz Cell Tower Signal Booster With ALC AGC Function
Mobile Signal Booster Repeater Amplifier Cell Tower Signal Booster 2G
Model No :AS-BS-G
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 8) 900MHz -- Uplink frequency: 890-915MHz/Downlink frequency : 935-960MHz
Network support : 2G Voice
Gain :70±2dB
Power Supply :AC110V～220V;DC+5V/2A

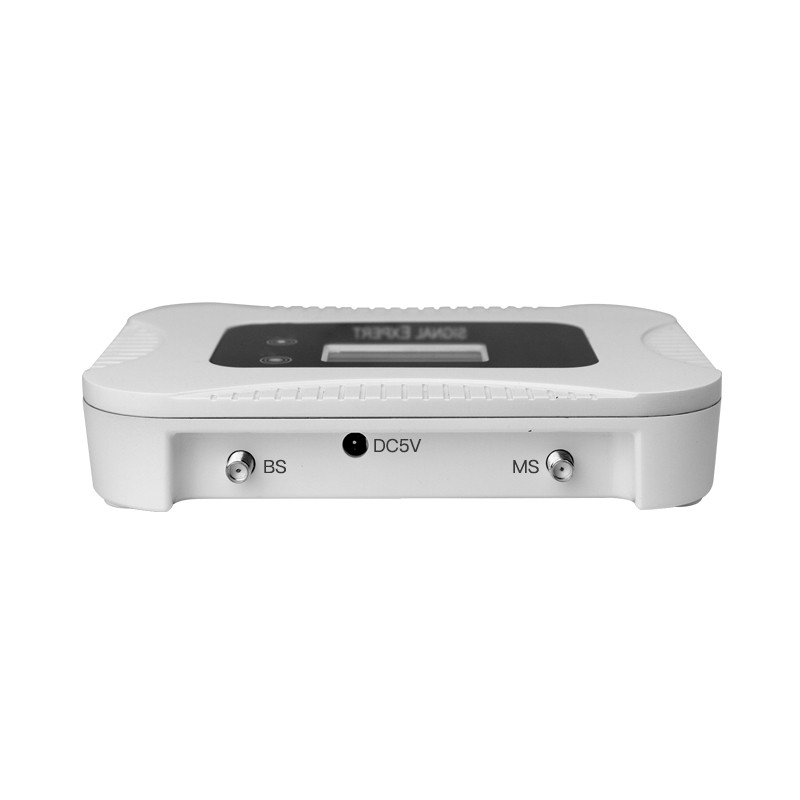

Connector Type: SMA-F
Wide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted
GlobaL application ATNJ factory 900MHz 2G signal repeater for your selection:
GSM 900MHz 2G Pico repeater is applied specifically in small area indoor DAS system. The base station signal is coupled and amplified by Pico repeater into in building system. The amplified signals is transmitted by indoor antenna. Meanwhile the indoor antenna receives the cell phone signal, and send the signal to the base station as uplink. This method can eliminate the signal dead spot, reject the interference, provide the stable signal communication for cell phone users. This Pico repeater mainly solves the problem spot problem in building. The coverage area is as large as 3000 square meters in open space, and 1000 square meters in partial obstacle area, 500 square meters in complete obstacle area. The edge power level for coverage area is above 85dBm. The repeater output power level is less than 20dBm.
Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.
Pico Repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 100M2-1000M2,which is a very economical solution. The output power is up to 20dBm per carrier.
Meanwhile, it can also boost the speed of GPRS.
| Single Band Repeater with AGC/MGC | ||||
| Model | AS-BS-G | |||
| Frenquecy Range | UplinK:890~915MHz Downlink:935~960MHz | |||
| Working System | Band8 GSM 900MHz | |||
| Gain | 70dB | |||
| Device Output Power | 17-20dBm | |||
| Bandwidth | Wide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted | |||
| Ripple in Band | ≤4dB | |||
| Noise Figure @ Max.Gain | ≤6dB | |||
| V.S.W.R | ≤2dB | |||
| MTBF | >50000Hours | |||
| Power Supply | AC110V～220V;DC+5V/2A | |||
| Power Comsumption | <20W | |||
| Impedance Matching | 50ohm | |||
| Mechanical Specification | ||||
| RF Connector | SMA/F | |||
| Cooling | Heatsink Convection Cooling | |||
| Dimension | 170*130*26(mm) | |||
| Net Weight | 0.35KG | |||
| Installation Type | Wall Installation or Desk | |||
| Environment Conditions | IP40 | |||
| Certification: | ISO, RoHS, CE | |||
| Operating Temperature | -10°C~55°C | |||
Further detail pls click here for downloading the products specification:
GSM 900MHz B07 Signal Repeater.pdf
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Please feel free to contact us if there are any other questions.
