Customized 5 Watt GSM Network Booster 2G 900MHz Cellular Apmifier

Name: Customized 5 Watt GSM Network Booster 2G 900MHz Cellular Apmifier
Brand: Shenzhen Atnj Communication Technology Co., Ltd.
SKU: AT-37-G
Price: 1,150.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: AT-37-G

Trading Properties

Minimum Order Quantity: 5Pcs

Price: USD+1100--1200+kit

Payment Terms: T/T,Western Union,Paypal,Bank transfering

Supply Ability: 1000+unit+per day.

Mobile Signal Boosters

LTE Cell Signal Booster

Cellular Signal Booster

Specifications

Frequency Range:	890-915MHz / 935-960MHz	Material:	Zinc Alloy ,Plastic
Booster Bandwidth:	Wide Range	Support network:	2G 3G, Voice
Booster Warranty:	3 Years	Products Type:	Repeater Ac 12000, Repeaters Gsm
High Light:	5W GSM Network Booster , 900MHz GSM Network Booster , 900MHz GSM Signal Repeater

Product Description

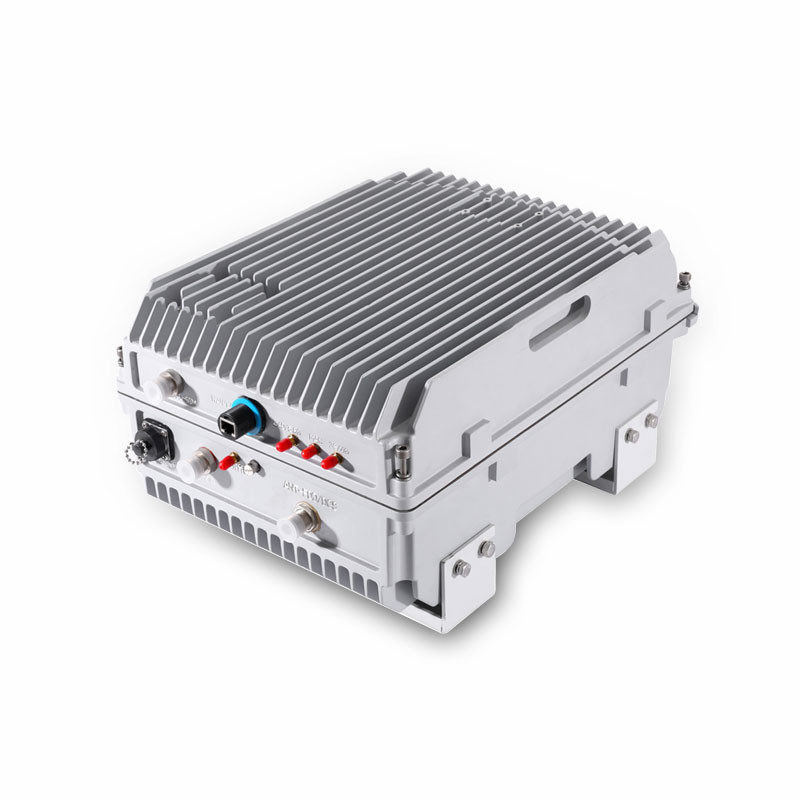

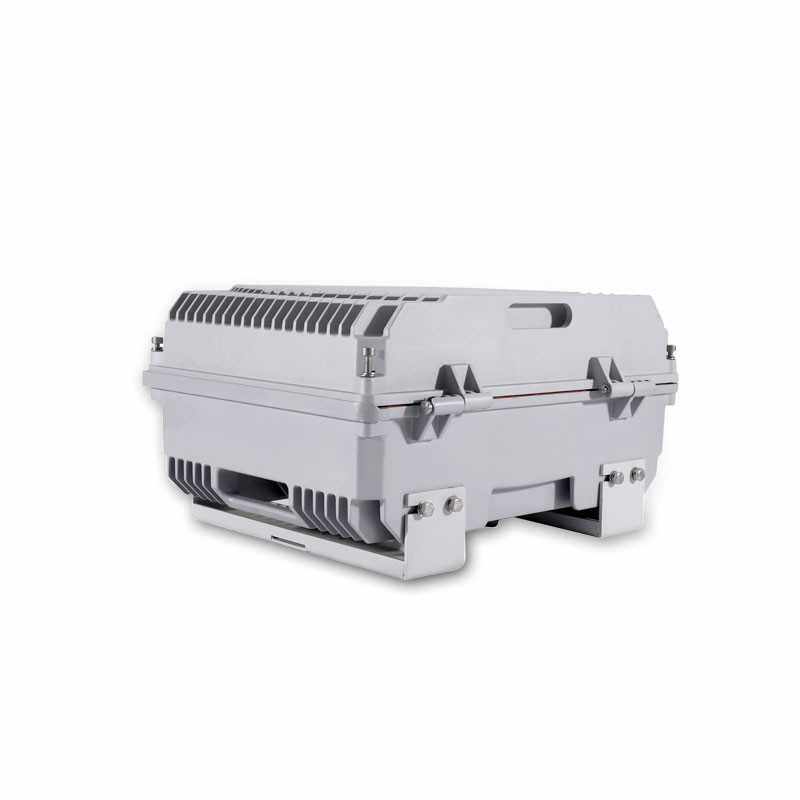

Customized 5 Watt GSM Network Booster 2G 900MHz Cellular Amplifier

5 Watt Customized GSM mobile signal booster 2G 900MHz cellular amplifier

Frequency Combinations

Band 800: Uplink:824-849 MHz Downlink: 869-894 MHz (B20 800 available)
Band 900: Uplink:880-915 MHz Downlink:925-960 MHz
Band 1800: Uplink:1710-1785 MHz Downlink:1805-1880 MHz
Band 1900: Uplink:1850-1910 MHz Downlink:1930-1990 MHz
Band 2100: Uplink:1920-1980 MHz Downlink:2110-2170 MHz
Band 2300: Uplink:2305-2315 MHz Downlink:2350-2360 MHz
Band 2600: Uplink:2500-2570 MHz Downlink:2620-2690 MHz

Technical Specifications

Band Options: Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power: 5W/10W/20W
Power Supply: AC adapter
Size: 308×219×135mm
Weight: 7.0kg

Single Band Repeater Specifications (Model AT-37-G)

Frequency Range	Uplink: 890-915MHz Downlink: 935-960MHz
Working System	Band8 GSM 900MHz
Gain	85dB
Device Output Power	37dBm
Bandwidth	Wide Range
Ripple in Band	≤4dB
Noise Figure @ Max.Gain	≤6dB
V.S.W.R	≤2dB
MTBF	>50000 Hours
Power Supply	AC110V-220V; DC+24V5A
Power Consumption	<20W
Impedance Matching	50ohm
RF Connector	N/F
Cooling	Heatsink Convection Cooling
Dimension	170×130×26(mm)
Net Weight	0.35KG
Installation Type	Wall Installation or Desk
Environment Conditions	IP55X
Origin	Shenzhen
Operating Temperature	-10°C to 55°C

For detailed product specifications, click here to download.

Key Selling Points

One device connects with several antennas to cover large area
Wide Coverage Up To 3000 ㎡
Max Output Power: 33dBm Support 2 to 5 Bands
Industrial Design IP65 level waterproof
Full Intelligent LCD Guide
Three years warranty, worry-free after-sales

Product Features

High output 5W, stable fast speed signal, perfect for large area or high building signal improvement
Easy installation process
Die cast aluminum alloy outer shell for efficient heat dissipation, waterproof, dust proof, IP55 level
Energy saving: automatically enters dormancy status when no phone signal detected; activates in 0.2 seconds when signal present
Upgrade intelligent WTR chip integrated circuit, reduced attenuation, higher load capacity, faster speed
Free settings depending on environment, maximum coverage up to 6000sqm

Product Images

GSM Network Booster installation diagram

We are manufacturer and have our own factory.

Frequently Asked Questions

Q1: I am in Romania and which band/frequency should I choose?

Frequency band selection guide for Romania

Typically, frequencies used by mobile operators in Romania are 900/1800MHz for 2G, 900/2100MHz for 3G, and 800/1800/2100/2600MHz for 4G and part of 5G. Contact us to confirm the suitable model for your location.

Q2: Do you have CE or any other certification?

Yes, we have CE, ROHS, and FCC certification, etc.

Q3: Can you give me a discount?

Please discuss with our sales team.

Q4: How about gain and output power of your device?

Different models have different gain and output power specifications. For more details, please contact us.

Q5: How long is warranty period?

The warranty is 12 months, and we offer 7×24 technical support.

Q6: How many square meters can be covered?

Coverage area varies by model. Different models cover different square meters.

Q7: Can I use your device in suburbs or remote areas?

Yes, as long as you can find a good signal source, our signal booster can help solve signal problems in remote areas.
