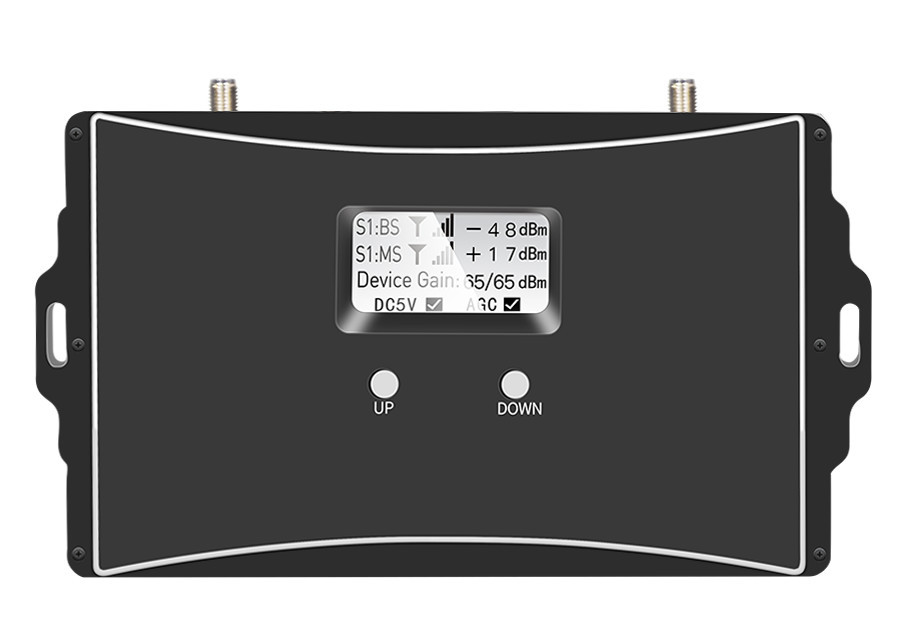

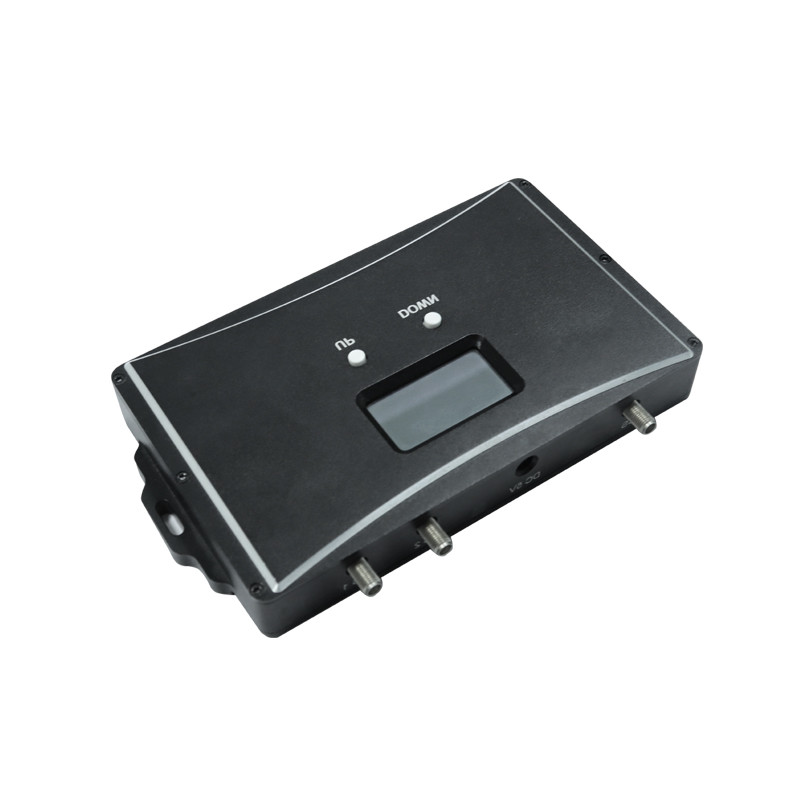

70dB Gain Dual Band Selective Repeater With LCD Real Time Display

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: JS-900/1800

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+75---85+kit

Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)

Delivery Time: 1-3 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

70dB Band Selective Repeater

,

70dB Cell Signal Booster

,

1800MHz Band Selective Repeater

900MHz Frequency Range:
890-915MHz / 935-960MHz
1800MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
Gain:
70dB
Output Power:
20dBm
Color:
Black , Customized
Products Type:
Cell Phone Booster, Ceiling Antenna
900MHz Frequency Range:
890-915MHz / 935-960MHz
1800MHz Frequency Range:
1710-1785MHz / 1805-1880MHz
Gain:
70dB
Output Power:
20dBm
Color:
Black , Customized
Products Type:
Cell Phone Booster, Ceiling Antenna
70dB Gain Dual Band Selective Repeater With LCD Real Time Display

70dB Gain Dual Band Selective Repeater With LCD Real Time Display



2G 4G Dual Band Mobile Signal Booster 900 / 1800MHz 70dB Metal Cellular Repeater Amplifier



Selling Point



1. Intelligent to guide the installation with LCD


2. Real time display the signal strength.


3. Automatic dormancy when no user make the calling


4. Automatic alarm when installation mistake and provide the according solution


5. Automatic adjust the system gain to avoid the repeater self-excitation


6. Initiative reminding when the device was damaged.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

890-915MHz , 1710-1785MHz

Downlink

935-960MHz , 1805-1880MHz

Frequency Bandwidth (3dB Bandwidth)

25MHz & 75MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

900+1800MHz AT005 mobile signal booster.pdf



Please Check Frequency before Buying How to check?



- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band


- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 1







Product Description





Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 0Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 1Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 2Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 3Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 4Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 5Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 6Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 7





Installation Approaches



1. Fix up outdoor antenna reception on housetop and point to signal tower;



2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;



3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;



4. Plug power adaptor into AC power socket and finish installation.







Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 8





Accessories



a. One dual band signal booster;



b. Two indoor antenna;



c. One outdoor antenna;



d. 20meter cable and 5meter cable;



e. User manual;



f. Power adapter.





Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 9





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.







Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 10

Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 11Mobile Signal Booster 70dB Gain Dual Band 800/1800MHz Cellular 2G 4G Repeater Amplifier 12





FAQ:



1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.



2. Why choose us for cooperation?

We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.



3. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.


4. Does the signal booster work have radiation or not ?

Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.


5. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.

6. Please feel free to contact us if any other questions.
