Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-5 Bands
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+1800---2300+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
Customized |
Gain: |
85dB |
Output Power: |
27dBm |
Color: |
Black ,Cuztomized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
N/Female Connector |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Packing Size: |
48x46x18cm |
Trademark: |
ATNJ |
Weight: |
8.5kg |
Products Type: |
Mobile Signal,repetidor De Seal Celular Para 3g 4g En Zona Rural |
Frequency Range: |
Customized |
Gain: |
85dB |
Output Power: |
27dBm |
Color: |
Black ,Cuztomized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
RF Connect Type: |
N/Female Connector |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Packing Size: |
48x46x18cm |
Trademark: |
ATNJ |
Weight: |
8.5kg |
Products Type: |
Mobile Signal,repetidor De Seal Celular Para 3g 4g En Zona Rural |

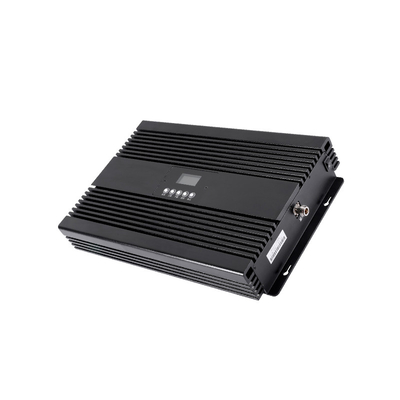

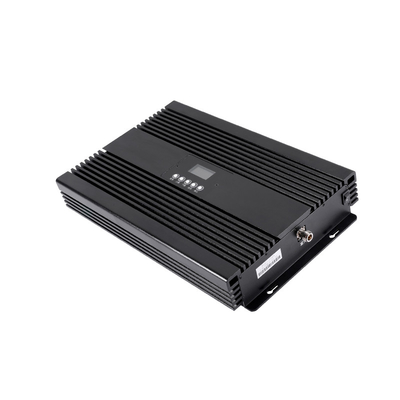

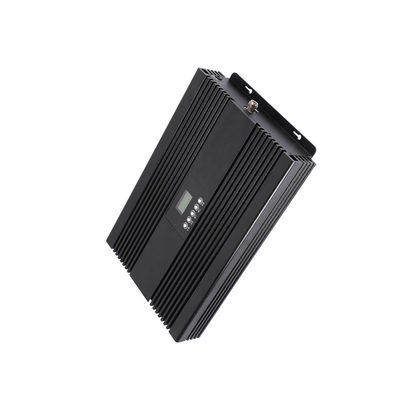

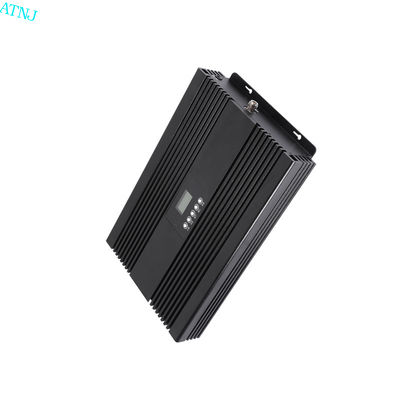

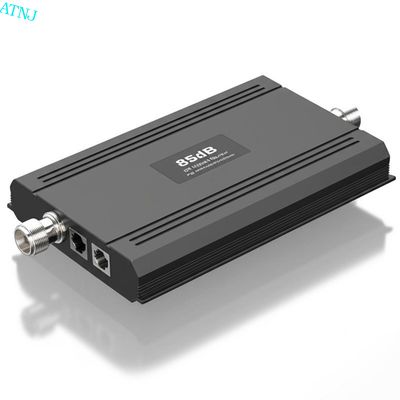

85dB 5G Signal Booster
Full Netcom 2G 3G 4G 5G Multi Band Repeater Aellular Signal Amplifier Indoor Repeater
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m² without block or obstruct.
7. Support any cellular devices (voice & data )
8. Wide band signal booster, or customize selective band booster.
|
CDMA 850 |
825-835MHz/870-880MHz(Uplink / Downlink ) |
|
GSM 900 |
889-915MHz/934-960MHz(Uplink / Downlink ) |
|
DCS 1800 |
1710-1755MHz/1805-1850MHz(Uplink / Downlink ) |
|
WCDMA 2100 |
1940-1955MHz/2130-2145MHz(Uplink / Downlink ) |
|
FDD-LTE 1800 |
1755-1785MHz/1850-1880MHz(Uplink / Downlink ) |
|
TDD-LTE 2600 |
2575-2675MHz(Uplink / Downlink ) |
|
|
Uplink |
Downlink |
|
Max Gain |
75 |
80 |
|
Max Gain error |
3± |
3± |
|
ALC Working Range |
≥20 |
≥20 |
|
Passband Ripple |
≥6 |
≥6 |
|
Receiver Sensitivity |
≥90 |
... |
|
Max Power |
20±3 |
27±3 |
|
Spurious Emission |
≤-36dBm/100KHz |
≤-36dBm/100KHz |
|
Intermodulation Attenuation |
≤-45 |
≤-45 |
|
VSWR |
≤25 |
≤25 |
|
System Delay |
≤2μs |
|
|
|
|
|
5 Band Mobile signal booster Parameter index
|
Working Voltage |
DC24V |
|
Working Current |
<5A |
|
Power Supply |
AC 100~240V 50/60Hz |
|
Working Temperature |
-25°c~+55°c |
|
Working Relative Humidity |
≤85°c |
|
RF connector |
N-K |
|
FDDI connector |
FC/APC |
|
Dimensions |
416X268X71mm |
|
Weight |
8.5kg |
Further detail pls click here for downloading the products specification:
Multi-Band High Power RF Repeater.pdf
5 Band Mobile signal booster Installation Diagram
Signal Booster Structure Size
Where To Use
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
