Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB1800/2100
Document: 1800+2100MHz A032 mobile s...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Products Type: |
Signal Booster 4G |
Color: |
Gold & Black & White & Customized |
Weight: |
4kg |
Warranty: |
3 Years |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Products Type: |
Signal Booster 4G |
Color: |
Gold & Black & White & Customized |
Weight: |
4kg |
Warranty: |
3 Years |

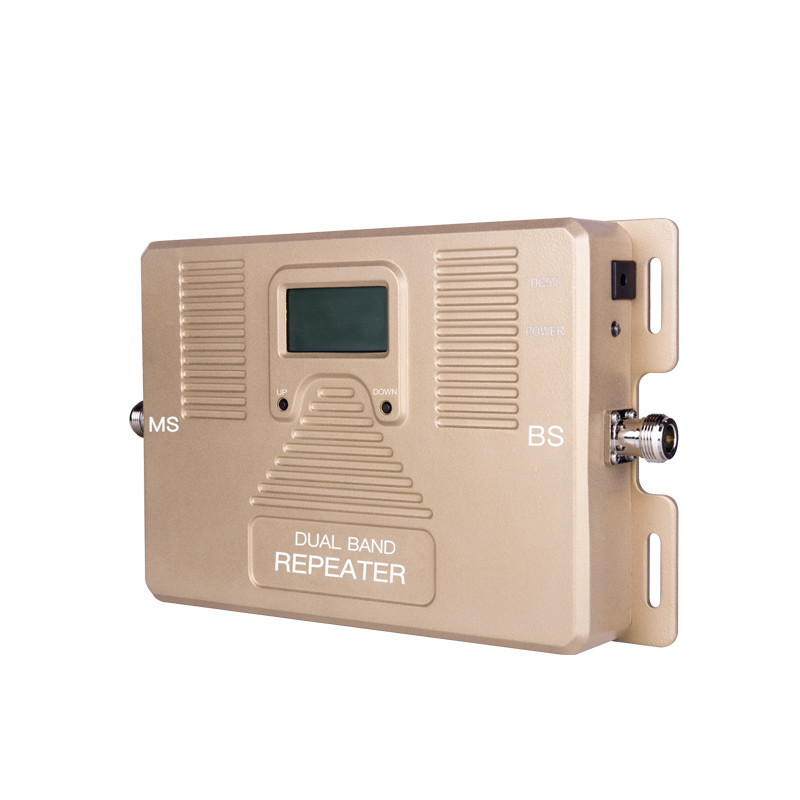

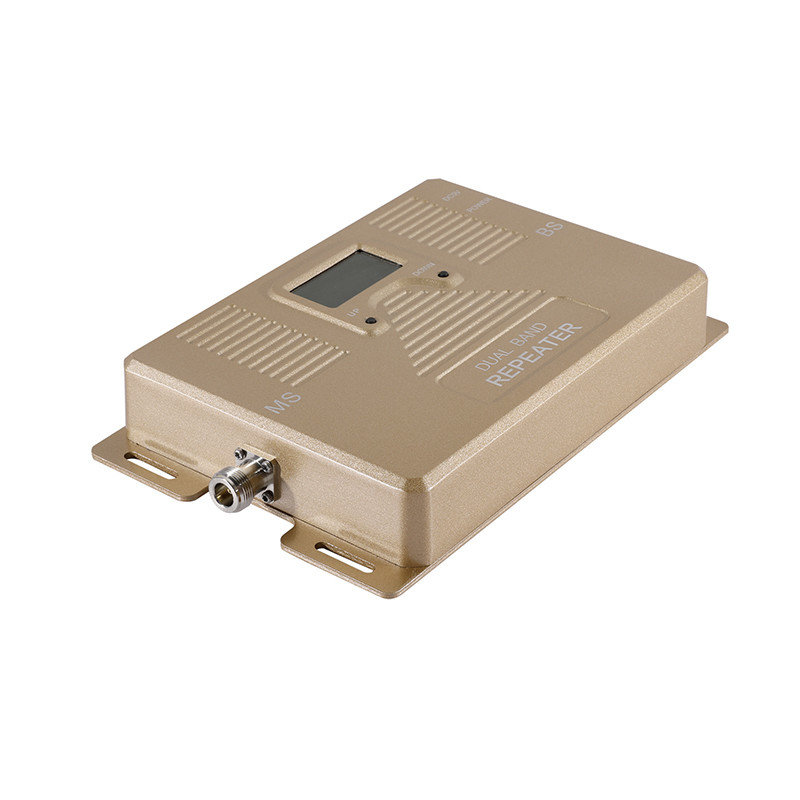

1800MHz 2100MHz Dual Band Booster 2G 3G 4G Output Power 20dBm
Dual Band Booster 2G 3G 4G 1800 / 2100MHz Cell Phone Signal Repeater Amplifier
General
The 1800/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz, 1920-1980MHz |
|
Downlink |
1805-1880MHz, 2110-2170MHz |
|
|
Frequency Bandwidth |
75MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
1800+2100MHz A032 mobile signal repeater.pdf
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Product Description
Technique supporting:
1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.
2. If cannot call out,please adjust the direction of outdoor antenna.
3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.
Accessories:
1. One dual band signal booster;
2. One indoor antenna;
3. One outdoor antenna;
4. 20 meter cable and 5 meter cable;
5. User manual;
6. power adapter.
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Note : Please be sure the place where you are going to install is DCS1800MHz WCDMA 2100MHz And make sure you can get at least 2 bars 2G and 4G signal of outdoor before you buy, otherwise this product can’t help you. It needs outdoor good signal to improve your indoor signal.
FAQ:
1.
Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2.
Q: Does the signal booster work have radiation or not ?
A: Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
3.
Q: Can I install a signal repeater myself?
A: Absolutely. There is no technical expertise required to install your mobile signal repeater kit. Each kit contains everything needed to improve the mobile coverage in your home/office and includes instructions that will guide you through the simple steps necessary to install your repeater.
4.
Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
