Product Details:
|
| Booster Gain: | 70dB | Booster Power: | 17--20dBm |
|---|---|---|---|
| Frequency Range: | 880-915MHz，925-960MHz | Connector Type:: | SMA/F Connector |
| Material: | Zinc Alloy ,Plastic | Booster Bandwidth: | 25MHz |
| Support Network: | 2G 3G, Voice | Warranty: | 3 Years |
| Trademark: | ATNJ | Origin: | Shenzhen,CN |
| Highlight: | 25MHz GSM Signal Booster,TUV GSM Signal Booster,25MHz Mobile GSM Repeater |
||
Bandwidth 25MHz GSM Signal Booster For Home
Home Design Band8 900MHz GSM signal Booster Repeater for Voice Calling
Model No :AS-EGSM
|
Single Band Repeater with AGC/MGC |
||||
|
Model |
AS-EGSM |
|||
|
Frenquecy Range |
UplinK:880~915MHz Downlink:925~960MHz |
|||
|
Working System |
EGSM 900MHz |
|||
|
Gain |
70dB |
|||
|
Device Output Power |
17-20dBm |
|||
|
Bandwidth |
Wide Band |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC:90~265V; 50/60Hz DC:9V 3A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
SMA Female |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP40 |
|||
|
LCD Intelligent Guide |
Done |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
GSM 900MHz B07 Signal Repeater.pdf
Signal Booster Description:
When the cellphone is connected to the external antenna and the booster, it will think that the cell tower is nearby. Data rates are improved, and dropped calls will be prevented. And best of all, the phone's battery life will be extended, because the phone is not using its full power to find signal. An antenna is mounted outside the vehicle and gets the signal from the network before it is blocked by glass and metal.
Eliminate dropped calls and increase data speeds with a signal booster.
Indoor Single Band Signal Repeater (Signal Booster) series is an ideal solution for one wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Do not dismantle machine, maintain or displace accessories by yourself, because in this way, the equipment may be damaged or even get an electric shock.
Signal Booster Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.

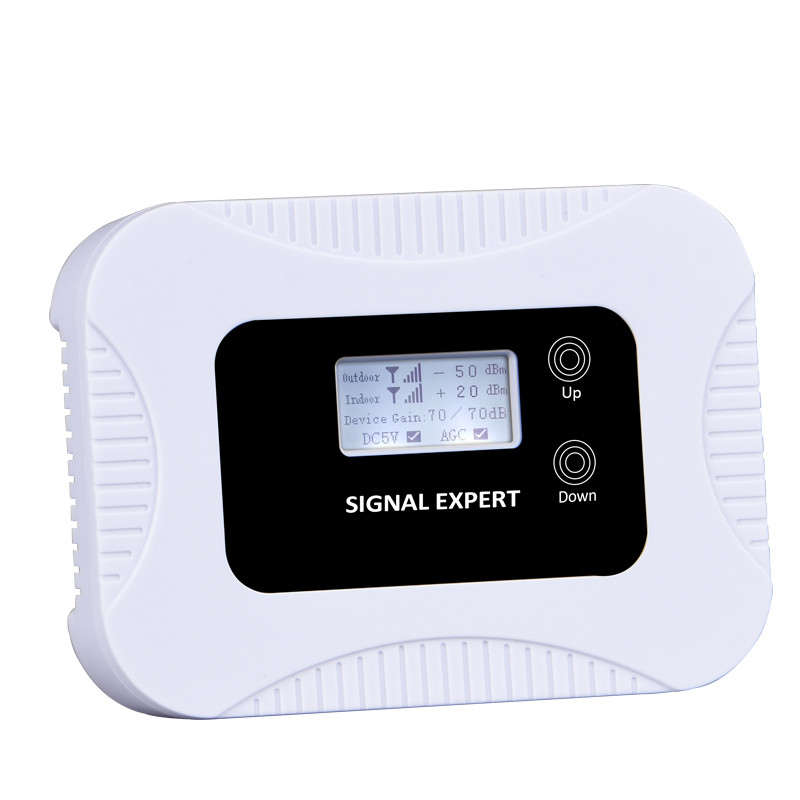

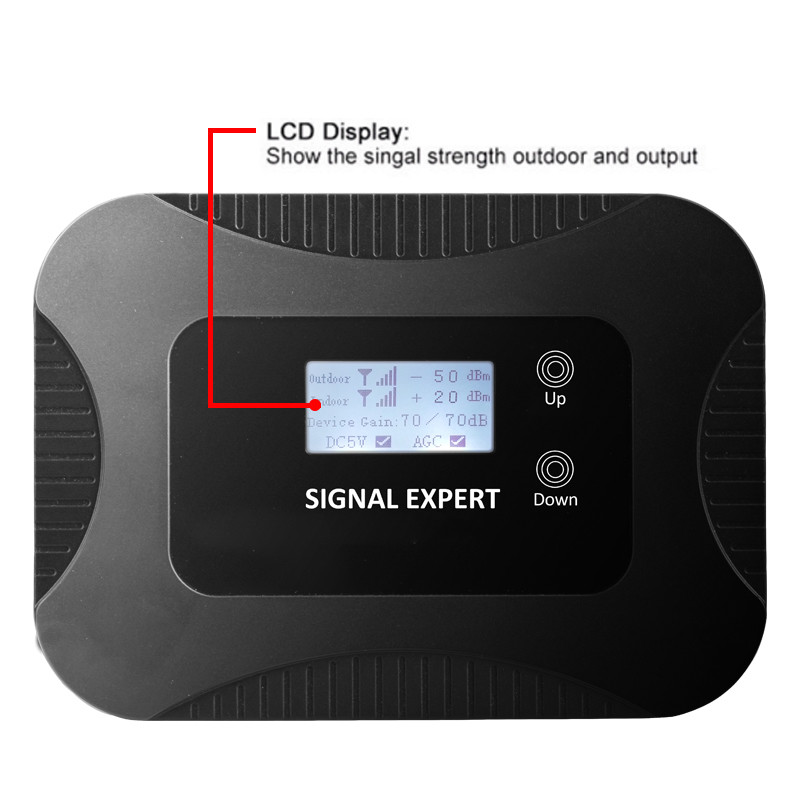

Product Pictures
FAQ
1. What is your advantage?
---Your inquiry will be replied in 24hours .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 36months guarantee .
2. What is our Payment methods?
We agree T/T, Western Union, PayPal.L/C for old customers.
3. What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Certificates?
We have CE, ROHS, FCC certificates .
5. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Please feel free to contact us if there are any other questions.
