Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
832-862MHz，791-821MHz |
Color: |
Black ,White Customized |
Interface: |
SMA/F Connector |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Warranty: |
3 Years |
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
832-862MHz，791-821MHz |
Color: |
Black ,White Customized |
Interface: |
SMA/F Connector |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Warranty: |
3 Years |

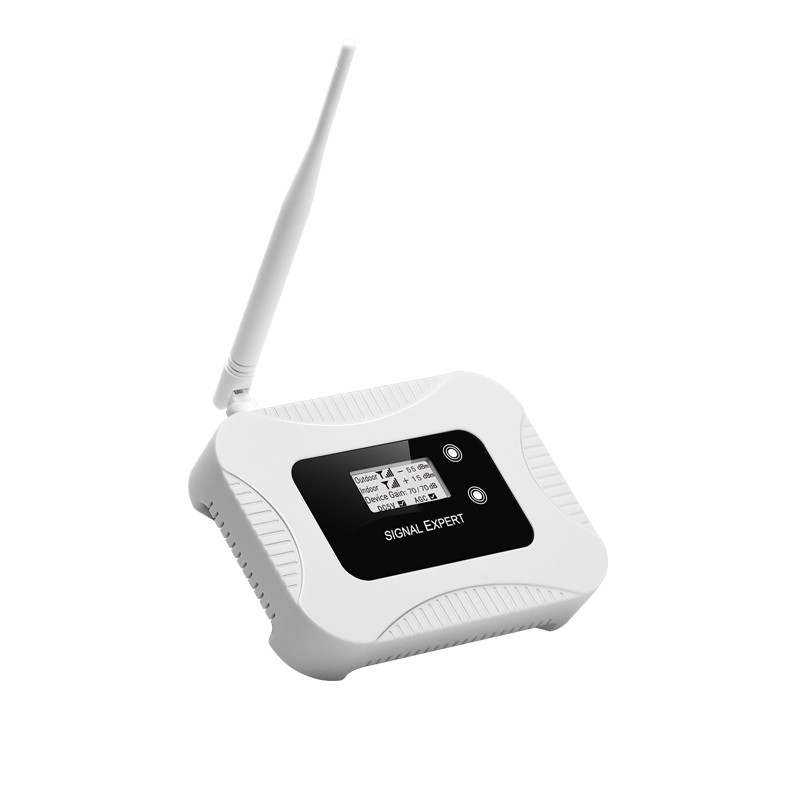

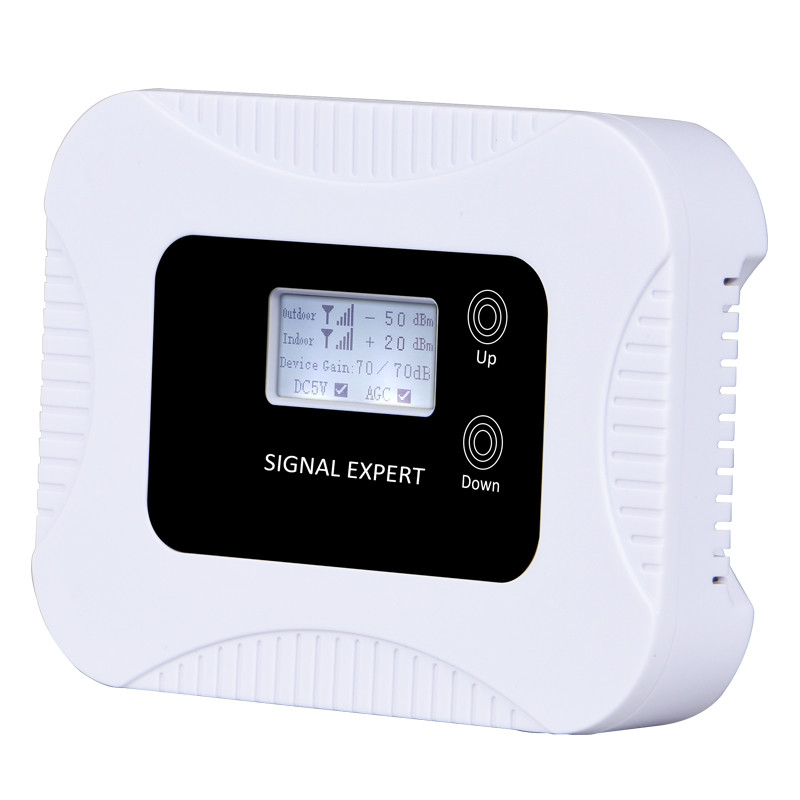

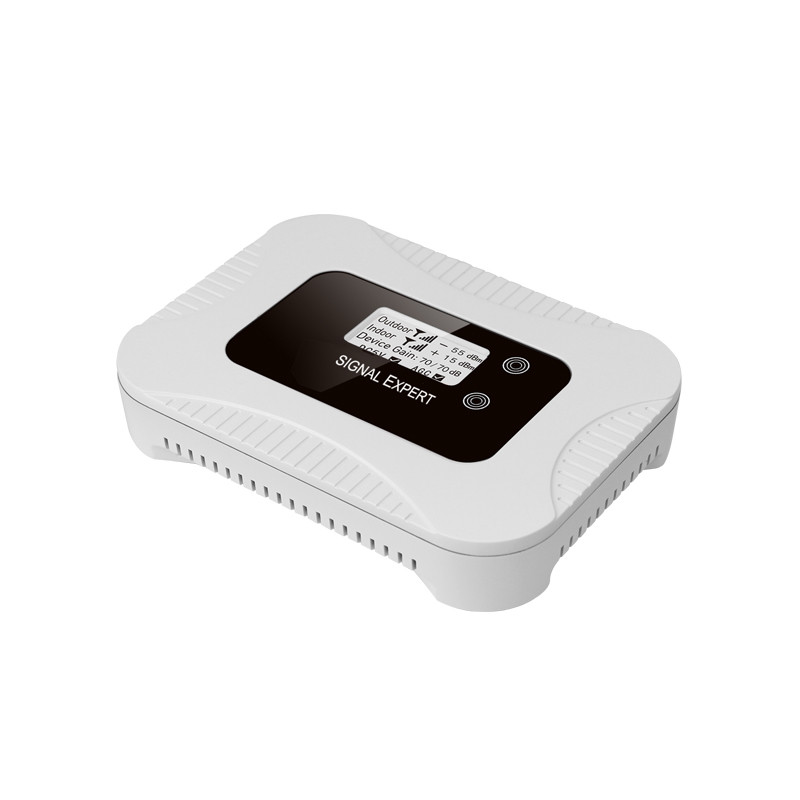

Frequency Bandwidth 75MHz 4G LTE Signal Booster Manual Gain Adjust
Mobile Signal Booster Amplifier LTE Cellular Signal Repeater 800MHz
Model No :AS-800
Description
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz |
|
Downlink |
791-821MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
17±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(F) |
|
|
Operating Temperature |
- 10°C ~ + 55°C |
|
|
Origin |
Shenzhen,CN |
|
|
HS Code |
8543709200 |
|
Further detail pls click here for downloading the products specification:
LTE 800MHz B07 Signal Repeater.pdf
4G Mobile Signal Repeater Features:
1. Isolation Inspection. When first power on the repeater, the device will automatically detect the isolation between the donor antenna and service antenna. The users could easier see the status and make the adjustment accordingly.
2. Input&Output Signal Strength Indication. The specific number of uplink and downlink measured in Output Power(dBm). Easy for users’ understanding.
3. Manual Gain Adjustment. The users or engineers could reduce the gain of the repeater manually via the buttons below the screen. The uplink and downlink gain could be set independently. “+” is increasing the gain, “-” is decreasing the gain.
4. Automatic Gain Control. Automatic Gain Control (AGC) is a dynamic gain adjustment feature with 31dB range.
5.Smart Mode = AUTO Mode. The repeater could automatically change the gain according to the specific environment when the smart function is on. Please note that when the SMART is on, users could not able to set the gain manually. Gain reduce 31dB automatically at first, then AGC Alarm RED when AGC control 5dB-10dB, ISO Alarm RED when AGC control 20dB-25dB, Repeater will Auto Shut Down. Auto restart after two minutes.
6. MANU Mode, users can set the gain manually. AGC Alarm RED when AGC control 5dB-10dB ;
ISO Alarm RED when AGC control 20dB-25dB, Repeater will Auto Shut Down.
Auto restart after two minutes.
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
4. Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
5. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
