Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: AS-850
Document: CDMA 850MHz B07 Signal Repe...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
850MHz |
Color: |
Black ,White Cuztomized |
Interface:: |
SMA/F Connector |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Warranty: |
24 Months |
Coverage: |
100-350 Square Meters |
Products Type: |
Cellular 850mhz Booster, Signal Booster Housing |
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
850MHz |
Color: |
Black ,White Cuztomized |
Interface:: |
SMA/F Connector |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Warranty: |
24 Months |
Coverage: |
100-350 Square Meters |
Products Type: |
Cellular 850mhz Booster, Signal Booster Housing |
Mobile Network Booster Repetido De Sinal De Celula 3G Signal Booster
Model No :AS-850
Can control gain automatically. Avoid base station interference
(Band 5) 850MHz -- Uplink frequency: 824-849MHz/Downlink frequency :869-894MHz
Network support : 2G3G, Calling and Voice
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.
Description
Specifications |
Parameters |
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz |
Downlink |
869-894MHz |
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
Gain |
70dB |
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
Auto Gain Control |
20dB Min. |
|
Output Power(Customers to Choose) |
17±3dBm |
|
Spurious Emission |
≤ -15dBm/30kHz |
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
In-band Ripple |
≤ 3dB |
|
VSWR |
<=2 |
|
I/O Impedance |
50 Ω |
|
Noise Figure |
≤ 5dB |
|
System Delay |
≤ 5μs |
|
RF Connector(Customers to Choose) |
SMA(F) |
|
Operating Temperature |
- 10°C ~ + 55°C |
|
Origin |
Shenzhen,CN |
|
Trademark |
ATNJ |
Further detail pls click here for downloading the products specification:
CDMA 850MHz B07 Signal Repeater.pdf
Signal Booster Description:
You are probably wondering what a cell phone signal booster actually is. This is a common reaction that people have, and we are taking a moment to explain it to you. In the current age of mobile technologies, where the personal devices are wireless and private, every device is backed by a “backbone” wireless network carrier, which could be one of the many major carriers in the country, such as Vodafone. Over the years, the carriers have developed their infrastructure well and have been able to cover most of the country. But there are large parts of the country where the signal coverage is weak or reaches sparingly. This is where the cell phone repeater comes into play. They resolve calls data and LTE reception mainly. In terminology, we call correspondingly 2G 3G and 4G signal.
A cell phone booster is a device that gathers the signal from the air, usually through an outdoor unit (such as an antenna), and “conveys” this signal to an indoor unit that is supposed to boost the signal. This conveying is done through a wired connection between the outdoor antenna and the indoor unit. The indoor cell phone booster, in turn, is provided with external power through a power outlet and has a complex circuitry that allows it to amplify the weak signal that has been received by the outdoor antenna. The indoor unit then sends the electrical signal to the indoor antenna that is directly connected to the unit, and the antenna converts the electrical signal to waves of the same frequency as were received by the outdoor unit. This, the frequency range of the waves does not change, and the cell phones do not notice any difference, except for a dramatic increase in the signal power that they are receiving.
Thus, as we can see, cell phone signal boosters are devices that literally boost the cell phone signal that you are receiving. This is done through some complex circuitry that works through the use of external power and boosts the signal to usable levels.

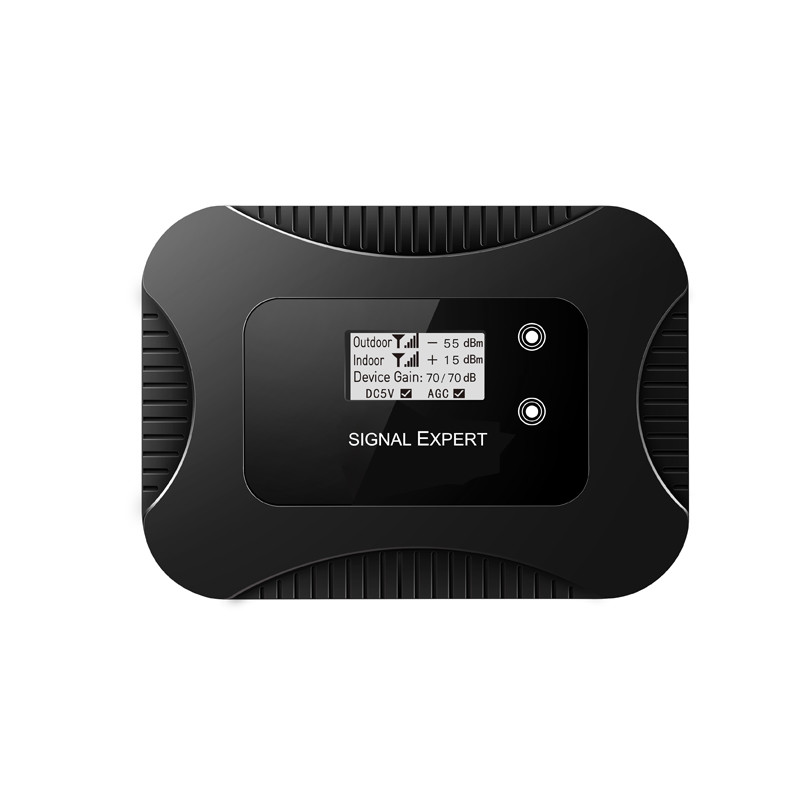

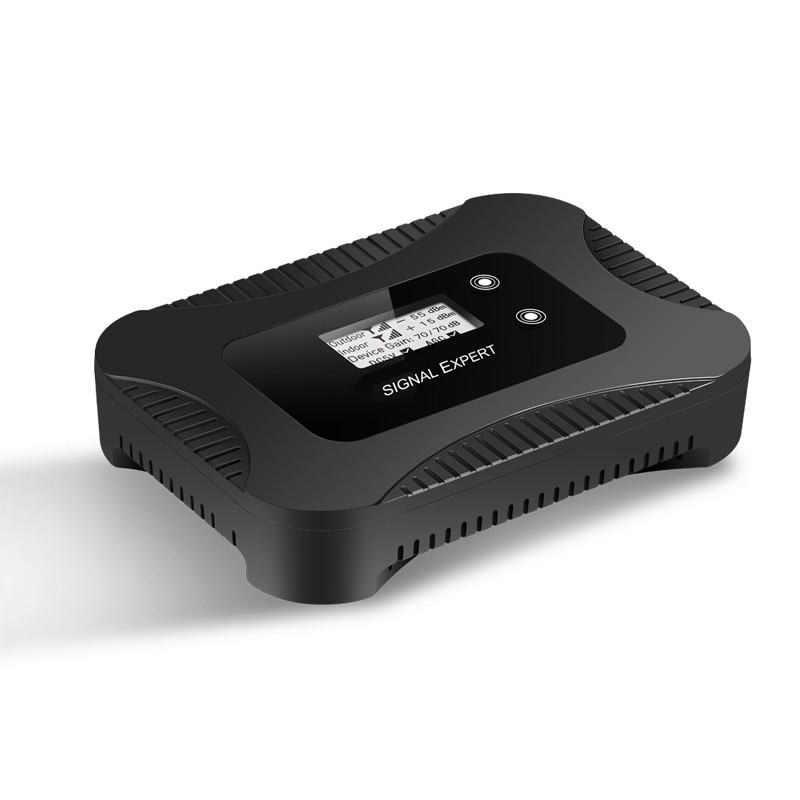

Product Images
FAQ
1. What is your advantage ?
--- Your inquiry will be replied in 24hours .
--- Well-trained and experienced staffs to answer all your inquires in fluent English .
--- OEM&ODM, for any of your customized products we can help you to design and put into product .
--- All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Certificates ?
We have CE, ROHS, CCC certificates .
