| Brand Name: | ATNJ |
| Model Number: | JS-DB850/1900 |
| MOQ: | 5Pcs |
| Price: | USD+100---120+kit |
| Packaging Details: | Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
70dB Gain 2G 3G 4G Repeater Amplifier Band5 Band2 850MHz 1900MHz
Dual Band Signal Booster Band5 Band2 850/1900MHz 2G 3G 4G Repeater Amplifier
General
The 850/1900MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz, 1850-1910MHz |
|
Downlink |
869-894MHz, 1930-1990MHz |
|
|
Frequency Bandwidth |
25MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
850+1900MHz A032 mobile signal repeater.pdf
Selling Point
The repeater for mobile network 3G & 4G is used to amplify poor mobile Internet. The device features LCD screen guiding you through setup. It covers up to 3000 ft2, being effective for small private houses or other locations like offices, garages, shops, etc. The repeater amplifies signals at two frequency bands at the same time 850 MHz and 1900 MHz which are mostly used for providers in such countries as North and South America, Canada.
Among other distinctive and helpful features of JS-DB850/1900, 3G & 4G there are:

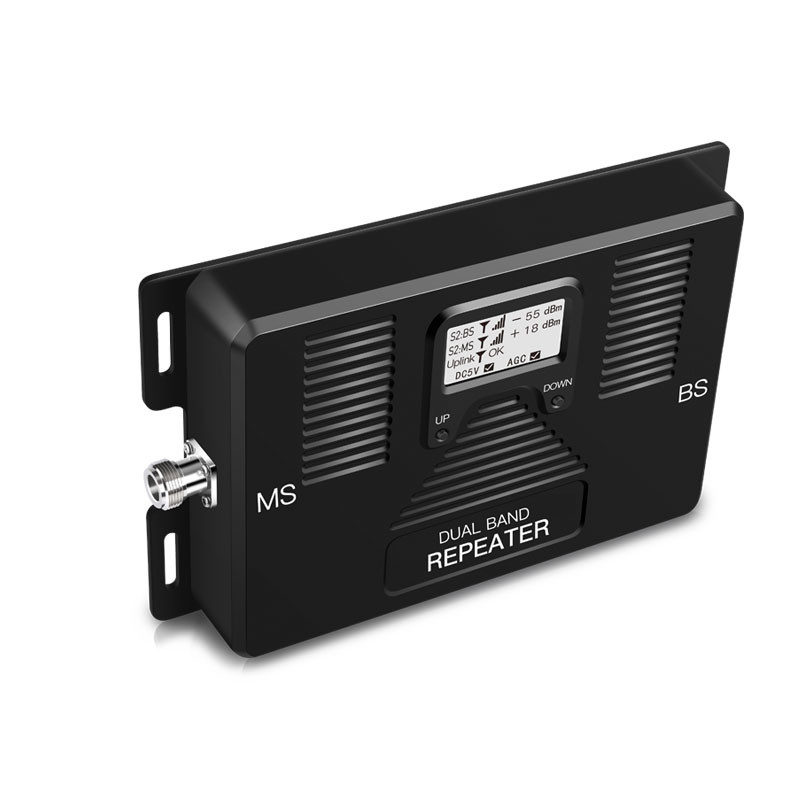

LCD screen showing outdoor signal and output value. The system will guide you through installation process and show you error tips with solutions.
Automatic adjustment of gain and signal basing on the individual signal reception conditions.
Sleep mode helping to save energy when you do not use mobile 2G/3G/ 4G Internet.
Product Description
With ALC AGC Function
Can control gain automatically. Avoid base station interference
Network support : CDMA 2/3G + PCS 3/4G
Gain : 70dB
Power Supply : AC110V～220V; DC+5V/2A
Connector Type : N-female connector

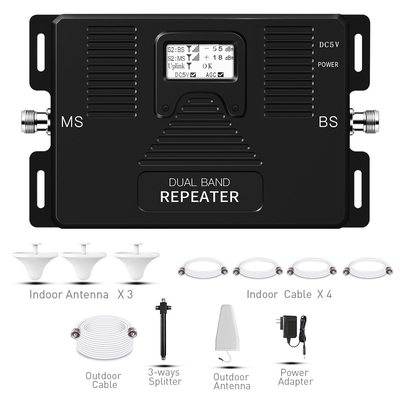

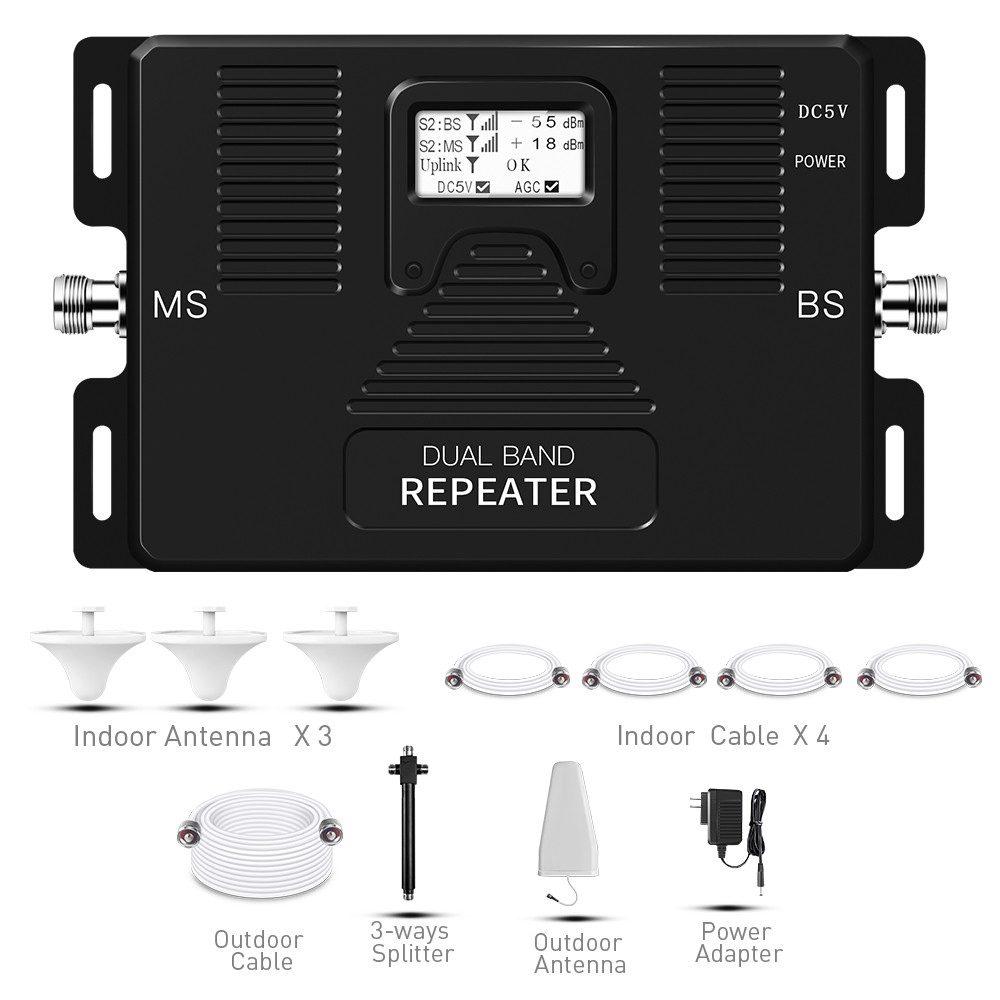

Accessories
a. Dual band signal booster;
b. Indoor Ceiling antenna;
c. Outdoor Log-periodic antenna;
d. 20meter cable
e. 5meter cable;
f. User manual;
g. Power adapter.
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. How many square meters can be covered?
For different models, the covered square meters are different.
5. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
6. How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
|
| Brand Name: | ATNJ |
| Model Number: | JS-DB850/1900 |
| MOQ: | 5Pcs |
| Price: | USD+100---120+kit |
| Packaging Details: | Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
70dB Gain 2G 3G 4G Repeater Amplifier Band5 Band2 850MHz 1900MHz
Dual Band Signal Booster Band5 Band2 850/1900MHz 2G 3G 4G Repeater Amplifier
General
The 850/1900MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz, 1850-1910MHz |
|
Downlink |
869-894MHz, 1930-1990MHz |
|
|
Frequency Bandwidth |
25MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
850+1900MHz A032 mobile signal repeater.pdf
Selling Point
The repeater for mobile network 3G & 4G is used to amplify poor mobile Internet. The device features LCD screen guiding you through setup. It covers up to 3000 ft2, being effective for small private houses or other locations like offices, garages, shops, etc. The repeater amplifies signals at two frequency bands at the same time 850 MHz and 1900 MHz which are mostly used for providers in such countries as North and South America, Canada.
Among other distinctive and helpful features of JS-DB850/1900, 3G & 4G there are:
LCD screen showing outdoor signal and output value. The system will guide you through installation process and show you error tips with solutions.
Automatic adjustment of gain and signal basing on the individual signal reception conditions.
Sleep mode helping to save energy when you do not use mobile 2G/3G/ 4G Internet.
Product Description
With ALC AGC Function
Can control gain automatically. Avoid base station interference
Network support : CDMA 2/3G + PCS 3/4G
Gain : 70dB
Power Supply : AC110V～220V; DC+5V/2A
Connector Type : N-female connector
Accessories
a. Dual band signal booster;
b. Indoor Ceiling antenna;
c. Outdoor Log-periodic antenna;
d. 20meter cable
e. 5meter cable;
f. User manual;
g. Power adapter.
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. How many square meters can be covered?
For different models, the covered square meters are different.
5. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
6. How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
