Product Details:
|
| Frequency Range: | According To Customer's Need,(Band 3)1800MHz -- Uplink Frequency: 1710-1785MHz/Downlink Frequency : 1805-1880MHz(Band 41) 2600MHz -- Uplink Frequency: 2496-2690MHz/Downlink Frequency : 2496-2690MHz | Gain: | 80dB |
|---|---|---|---|
| Output Power: | 27dBm | Color: | Black ,Cuztomized |
| AGC Intelligent Function: | Done,31dB @ 1dB/ Step | ALC Intelligent Function: | Done |
| RF Connect Type: | N/Female Connector | Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
| Weight: | 5kg | Packing Size: | 48x46x18cm |
| Trademark: | ATNJ | Origin: | Shenzhen，CN |
| Highlight: | 2600MHz Dual Band Signal Booster,1800MHz Dual Band Signal Booster,TUV 2600MHz Mobile Signal Repeater |
||

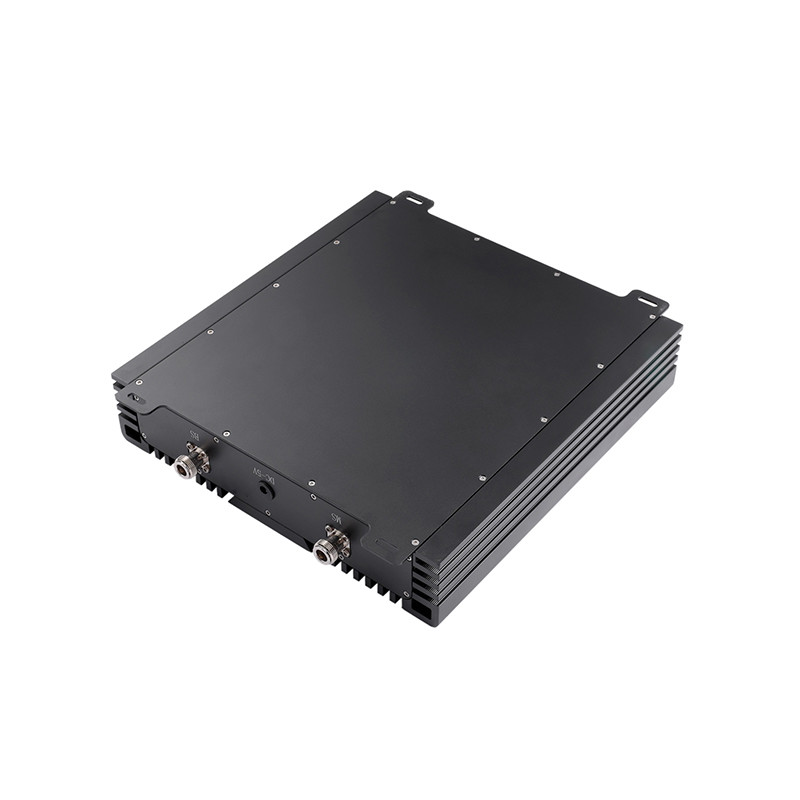

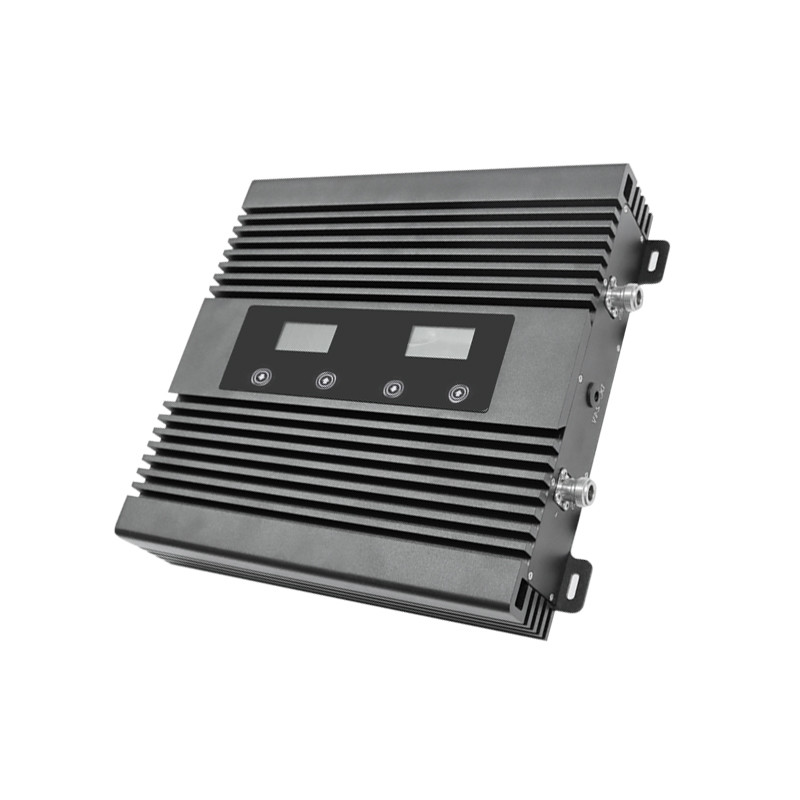

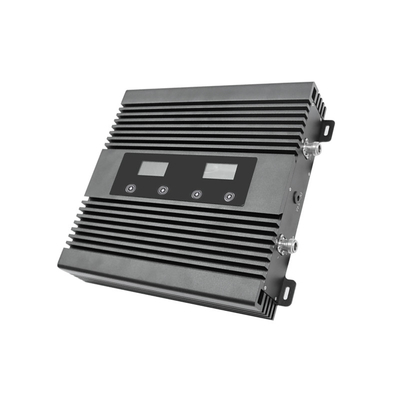

1800MHz 2600MHz Dual Band Signal Booster
2G 4G 5G Dual Band 1800/2600MHz Cell Phone Booster Ampilifier Mobile Signal Repeater
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz,2496-2690MHz |
|
Downlink |
1805-1880MHz, 2496-2690MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz&75MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
HS Code |
8543709200 |
|
Further detail pls click here for downloading the products specification:
1800+2600 A012 Signal Repeater.pdf
Product Description
HOW IT WORK?
The outdoor antenna installed on the roof receives mobile phone’s signal and transmits it to the amplifier host through coaxial jumpers. The host amplifies the mobile signal and transmits it to the indoor space through the indoor antenna.
No inter-linkage between coaxial cable and mobile phone is needed, and mobile phones inside the house can get better mobile signals.
Boost: 4G 5G Network
Coverage: 350-800 Square Meters
Suitable For: Russia,Spain,France,Ukraine,Europe,Asia,etc
Warranty: 3 Years
Eliminate dropped calls and increase data speeds with a signal booster.
Indoor Dual Band Signal Repeater (Signal Booster) series is an ideal solution for both two wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Downtown areas of the cities, congested with many high-rise buildings are usually the weak or blind areas.
Do not open the booster; touch the module of booster, even not to open the cover of module to touch the electronic component, the components will be damaged due to electrostatic.
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m² without block or obstruct.
7. Support any cellular devices (voice & data )
8. Wide band signal booster, or customize selective band booster.
Customer Notification
Shipping
● We will send your parcel as soon as possible after payment confirmed, Within 48 hours for normal,Except weekend and Chinese holidays.
● Please provide your correct address,full name,and zip code.
● We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
