Home /Products/4G Signal Repeater/LTE 800MHz 4G Signal Repeater

LTE 800MHz 4G Signal Repeater

5Pcs
MOQ
USD+40---49+kit
Price
LTE 800MHz 4G Signal Repeater
Features Gallery Product Description Chat Now
Features
Specifications
Device Gain: 70dB
Device Power: 17±3
Frequency Range: 832-862MHz，791-821MHz
Color: Black And White
Interface:: SMA/F Connector
Material: Alloy ,Plastic
ALC+AGC Intelligent Function: Done
Warranty: 3 Years
Trademark: ATNJ
Highlight:

LTE 800MHz 4G Signal Repeater

,

862MHz 4G Signal Repeater

,

821MHz Mobile Signal Amplifier
Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-800
Document: LTE 800MHz B07 Signal Repea...er.pdf
Payment & Shipping Terms
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Product Description

LTE 800MHz 4G Signal Repeater



Mobile Signal Booster Amplifier LTE800MHz Cellular Signal Repeater



Model No :AS-800

Can control gain automatically. Avoid base station interference

(Band 20) 800MHz -- Uplink frequency: 832-862MHz/Downlink frequency :791-821MHz
Network support : 4G, Network
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.



Description

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

1710-1755MHz

Downlink

2110-2155MHz

Frequency Bandwidth (3dB Bandwidth)

75MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

17±3dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(F)

Operating Temperature

 - 10°C ~ + 55°C

Alarm Monitoring System

Alarm for uplink self-oscillation

Production Capacity

10000/Per Month

Further detail pls click here for downloading the products specification:

LTE 800MHz B07 Signal Repeater.pdf

Selling Point

2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.



Product Images

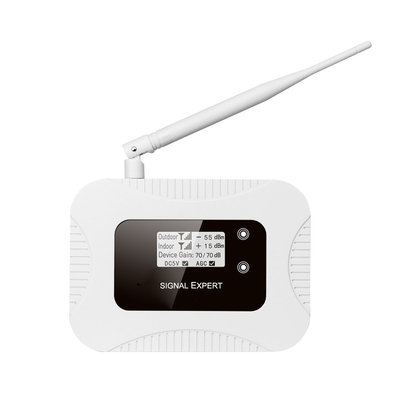

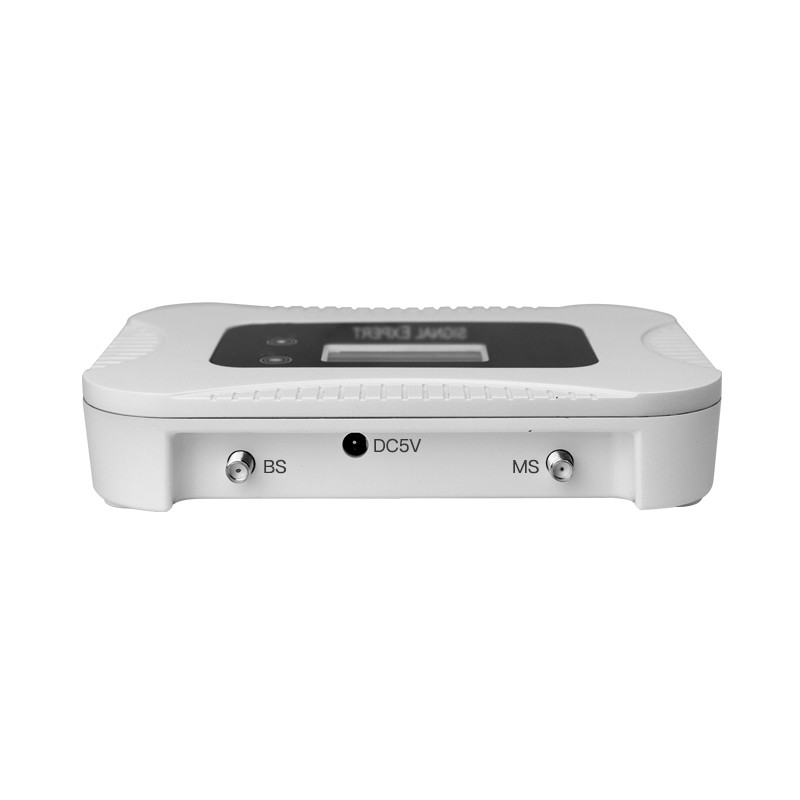

LTE 800MHz 4G Signal Repeater 0LTE 800MHz 4G Signal Repeater 1

LTE 800MHz 4G Signal Repeater 2

LTE 800MHz 4G Signal Repeater 3LTE 800MHz 4G Signal Repeater 4



FAQ



1. What is your advantage ?



--- Your inquiry will be replied in 24hours .

--- Well-trained and experienced staffs to answer all your inquires in fluent English .

--- OEM&ODM, for any of your customized products we can help you to design and put into product .

--- All our products with 12months guarantee .



2. What is our Payment methods ?



We agree T/T, Western Union, PayPal.L/C for old customers .



3. What is our Shipping & Trade terms ?



Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .



Delivered time: 1-3 business days for sample, 10-25 days for mass order .

Trade terms: EXW, FOB , CIF etc .



4. What is our Certificates ?



We have CE, ROHS, CCC certificates .



Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
