Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB900/1800/P
Document: 900+1800MHz C03 Mobile Sign...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+70---85+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Delivery Time: 2 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
Color: |
Black And Gold Or Cuztomized |
Warranty: |
3 Years |
Packing Size: |
52x21x16cm |
Products Type: |
Atnj Repeater, Signal Booster Signal Booster |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
Color: |
Black And Gold Or Cuztomized |
Warranty: |
3 Years |
Packing Size: |
52x21x16cm |
Products Type: |
Atnj Repeater, Signal Booster Signal Booster |
ALC MGC AGC Cell Phone Signal Amplifier Dual Band 900MHz 1800MHz
Dual Band Cell Phone Signal Amplifier 2G 4G 900 / 1800MHz Cellular Repeater Booster
Selling Point

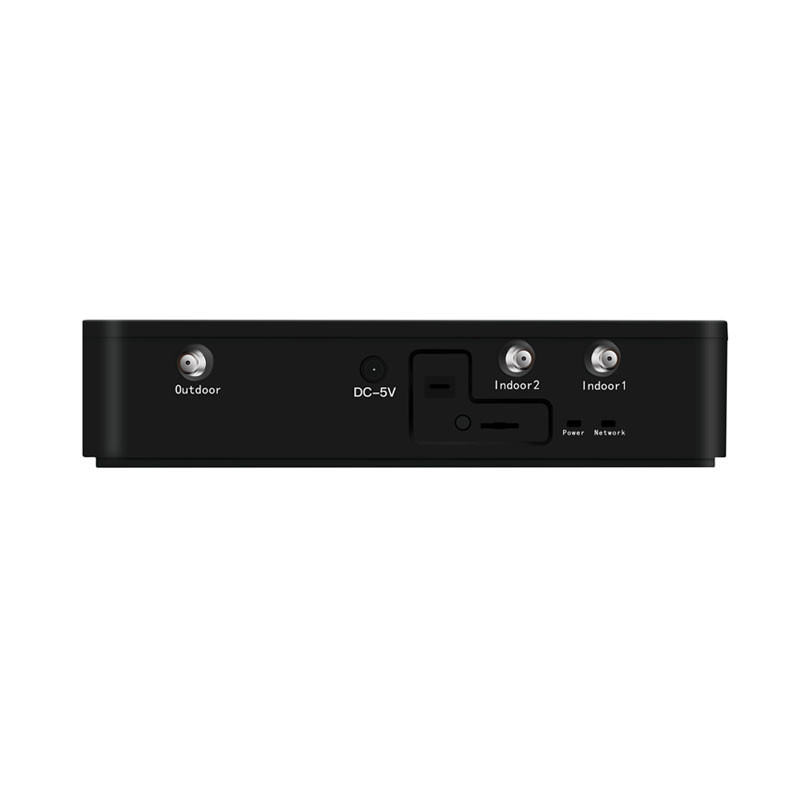

Latest generation LCD amplifier is used to amplify weak GSM signals on two different frequencies. The LCD screen displays signal strength, setup advice, error messages, power and ALC data. In addition, the signal booster has another port for additional internal antenna, allowing the user to evenly redistribute the amplified signal.
This model guarantees effective reinforcement in medium-sized homes and offices, shops and other properties up to 300 m² (3200 ft²).
The device amplifies GSM signals simultaneously on 900 and 1800 MHz. 900 MHz is the most common GSM signal transmission frequency in the European Union and around the world. 1800 MHz is mainly used as a complementary frequency to 900 MHz, and in some regions as the main frequency. Therefore, the dual-band amplifier is suitable for users of mobile operators operating on different frequencies.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1710-1785MHz |
|
Downlink |
935-960MHz, 1805-1880MHz |
|
|
Frequency Bandwidth |
25MHz&75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+1800MHz C03 Mobile Signal Repeater.pdf
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Product Description
2G 4G signal booster (B3+B8)
Gain : 70db
Max power : 20dbm
ALC functon
The ALC function can prevent excessive signal output and cause interference.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.

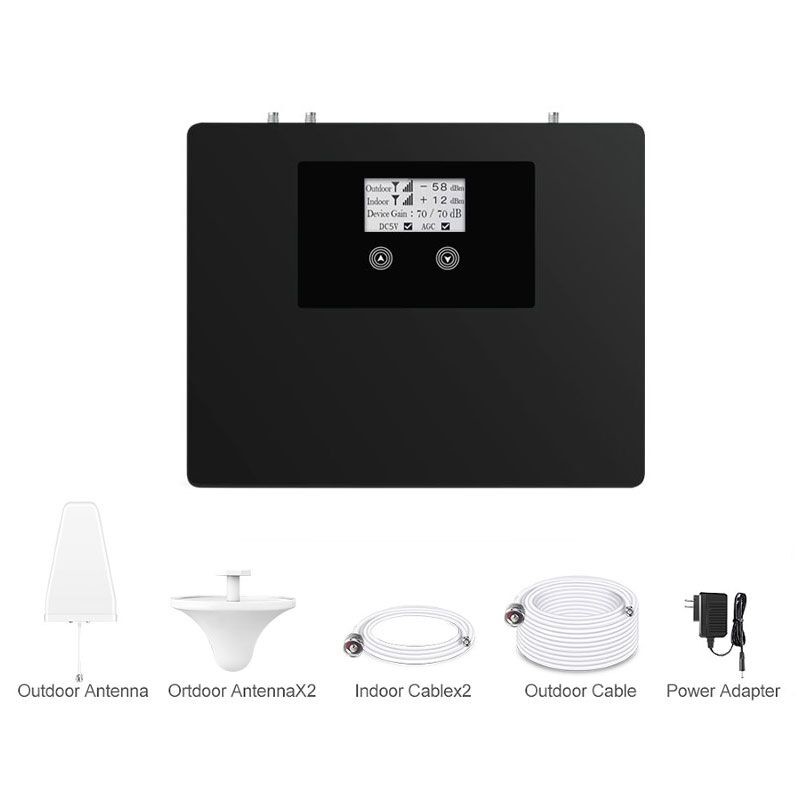

Packaging Including:
1. GSM 900MHz DCS 1800MHz Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Omni antenna and Ceiling antenna
5. 5 meters cable
6. 20 meters cable
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
5. Please feel free to contact us if any other questions.
