Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: 5D-FB 20M cable
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+12--15+kit
Packaging Details: Standard neutral packing10*10*5cm(1pcs),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Impedance: |
50OHm |
Length: |
20M |
Cable: |
5D-FB |
Weight: |
1.0Kg |
Frequency Range: |
DC-6GHz |
Outer Conductor: |
Dual Al Foil (20*0.05)mm |
Jacket: |
Polyvinyl Chloride(PVC) |
Dielectric: |
PE(Foam Polyethylene FPE ) |
VSWR: |
30~3000MHZTest At Both Ends Of The Whole Roll≤1.3 |
Products Type: |
4g Signal Repeater |
Impedance: |
50OHm |
Length: |
20M |
Cable: |
5D-FB |
Weight: |
1.0Kg |
Frequency Range: |
DC-6GHz |
Outer Conductor: |
Dual Al Foil (20*0.05)mm |
Jacket: |
Polyvinyl Chloride(PVC) |
Dielectric: |
PE(Foam Polyethylene FPE ) |
VSWR: |
30~3000MHZTest At Both Ends Of The Whole Roll≤1.3 |
Products Type: |
4g Signal Repeater |

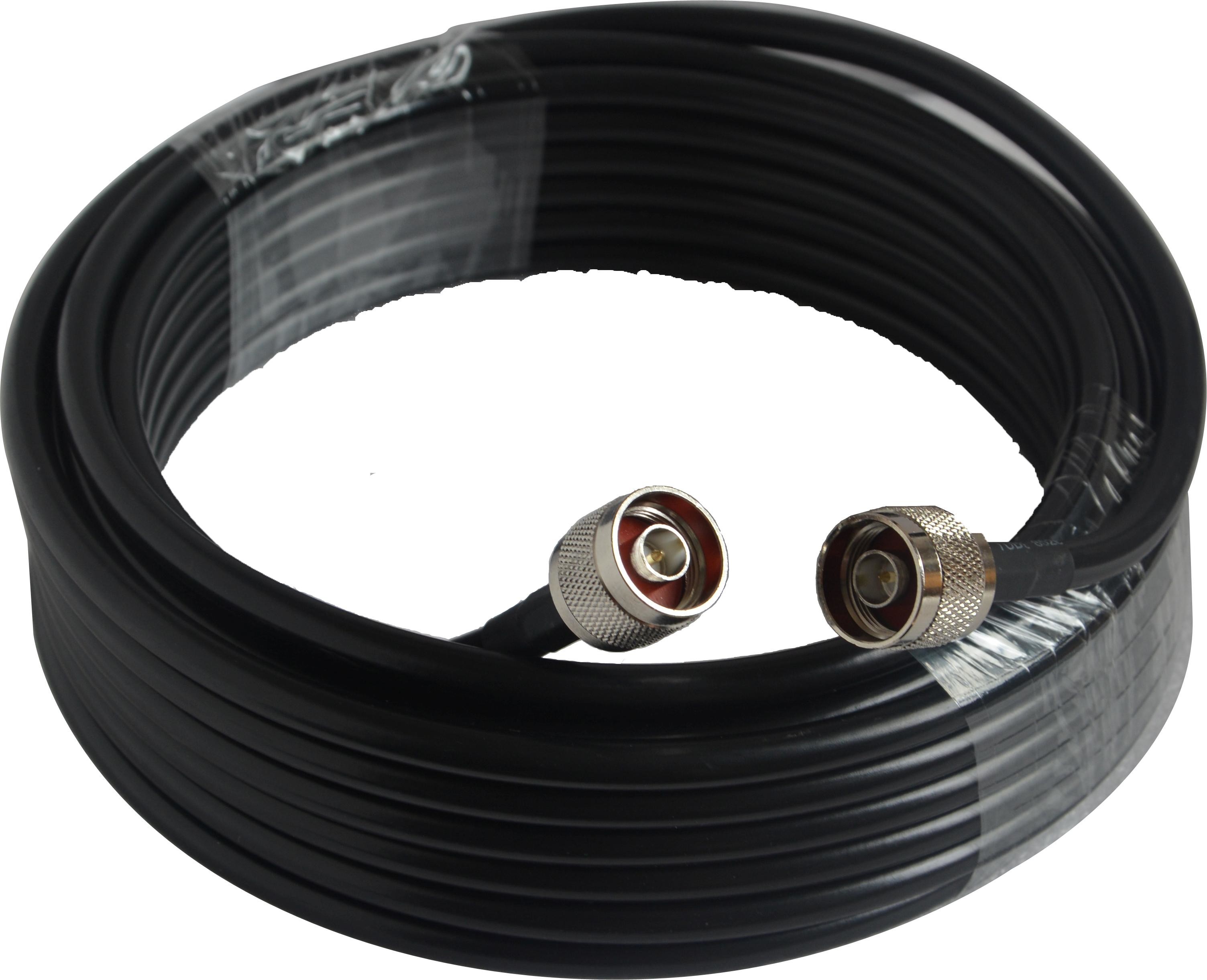

5D FB 20M Signal Booster Coaxial Cable Assembly Impedance 50 Ohm
The low loss coaxial cable offers similar performance compared to corrugated copper cables but provides high flexibility and simplified connectorization. This 50 Ohm coax cable has a bare copper center conductor and stranded outer conductor. Low loss is achieved through use of the 90 percent braided shield. A foam pvc serves as insulation.
ATNJ 5D-FB 20M Coaxial Cable can be used in almost any application where handing characteristics, improved shielding, and low loss is required.
|
Decay ( 20℃, sea level test conditions )
|
||
|
frequency
|
Attenuation dB/100m
|
note
|
|
100
|
6.4
|
|
|
400
|
13.4
|
|
|
900
|
22.6
|
|
|
1500
|
29
|
|
|
1800
|
35.6
|
|
|
2500
|
41.3
|
|
|
3000
|
45.4
|
|
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
We are manufacturer, and have our own factory.
FAQ :
Q5 : What is your payment terms?
A5 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
