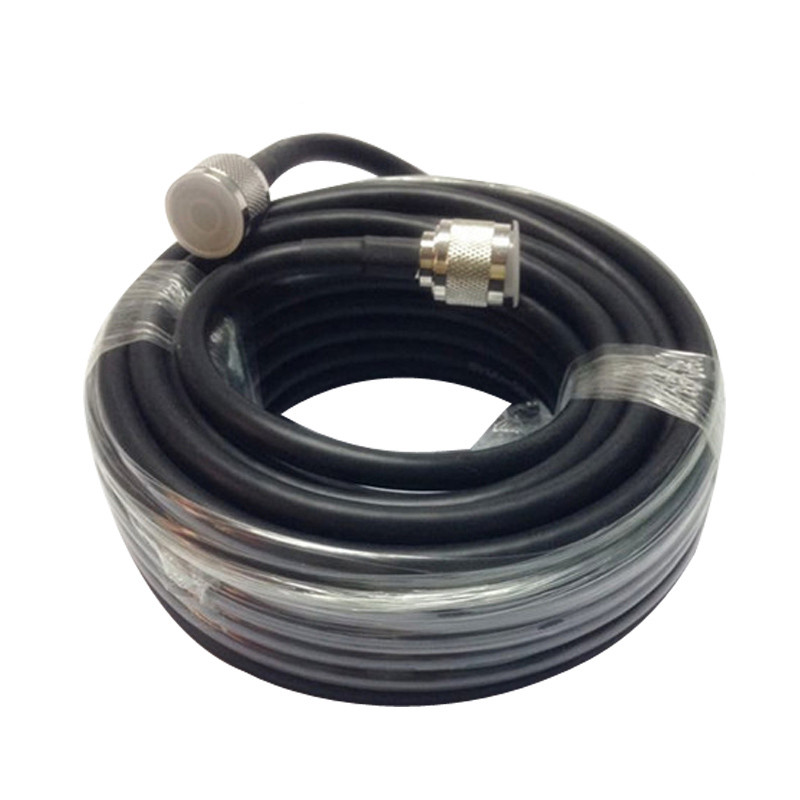

ATNJ 5D FB Coaxial 50 OHm Mobile Signal Booster Cable Assembly
| Impedance: | 50OHm | Length: | 15M |
| Cable: | 5D-FB | Weight: | 0.85 Kg |
| Packing size: | 15*15*10CM | Frequency Range: | DC-6GHz |
| Warranty: | 12 Months | Products type: | Gsm Repeater Booster |
| High Light: | 50 Ohm Mobile Signal Booster Cable,50 Ohm Network Booster Cable,5D FB Mobile Signal Booster Cable |
||
ATNJ 5D FB Coaxial 50 Ohm Mobile Signal Booster Cable Assembly
The low loss coaxial cable offers similar performance compared to corrugated copper cables but provides high flexibility and simplified connectorization. This 50 Ohm coax cable has a bare copper center conductor and stranded outer conductor. Low loss is achieved through use of the 90 percent braided shield. A foam pvc serves as insulation.

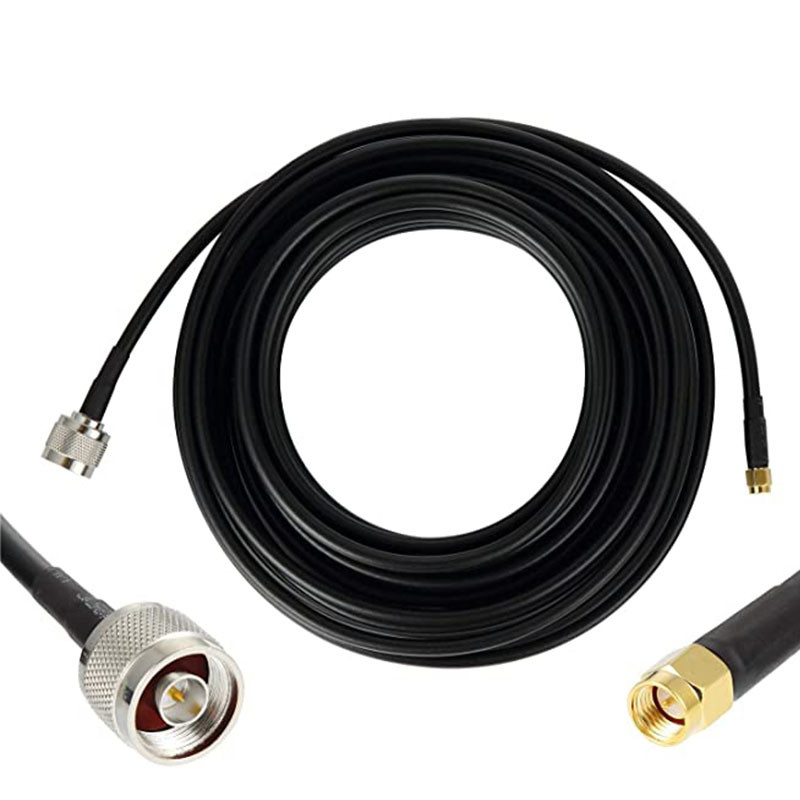

15meters RF coaxial cable
| Type of coaxial cable: 5D-FB, RoHS compliance | |||||||||
| Legend: | |||||||||
|
5D-FB 1.Inner conductor 2. Dielectric 3.Outer conductor 4. Jacket |
|
||||||||
| Main Electrical properties: | |||||||||
| Characteristic impedance | 50±2Ohm | ||||||||
| Rated capacitance | 81±2 pf/m | ||||||||
| Velocity | 80% | ||||||||
| Delay | 3.75ns/m | ||||||||
| Operating frequency | 1~6000GHz | ||||||||
| Attenuation at typical frequencies:(dB/100m) | |||||||||
| 100MHz | 400 MHz | 900 MHz | 1800MHz | 2500MHz | 3000MHz | ||||
| 3.30 | 7.60 | 15.0 | 26.3 | 33.0 | 37.8 | ||||
| VSWR 50~3000MHz | 1.25Max. | ||||||||
| Mechanical Construction: | |||||||||
| Inner conductor: CCA | 1.80±0.02mm | ||||||||
| Dielectric: foam PE | 4.95±0.10mm | ||||||||
| Outer conductor: AP+AA | 5.60±0.10mm(16*7/0.15mm) | ||||||||
| Jacket :PVC Black | 7.50±0.15mm | ||||||||
| Engineering data: | |||||||||
| Maximum Pull Tension | 42 Ibs | ||||||||
| Minimum bending radius | 91mm | ||||||||
| Operating temperature | -25~+70°C | ||||||||
| Reel Length |
Customized |
||||||||
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
We are manufacturer, and have our own factory.
