| Brand Name: | ATNJ |
| Model Number: | AS-P |
| MOQ: | 5Pcs |
| Price: | USD+40---49+kit |
| Packaging Details: | Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

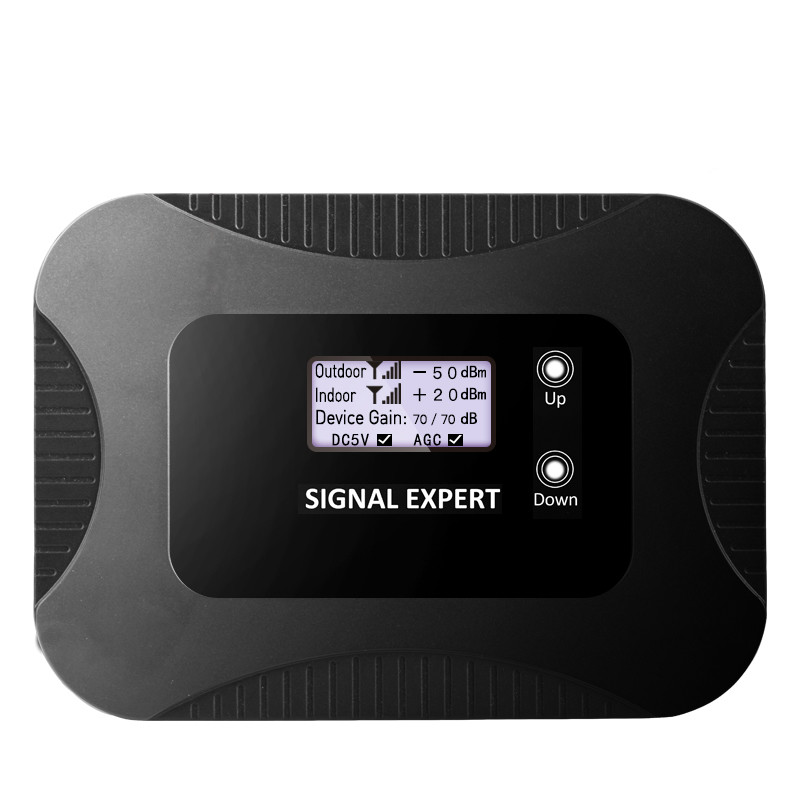

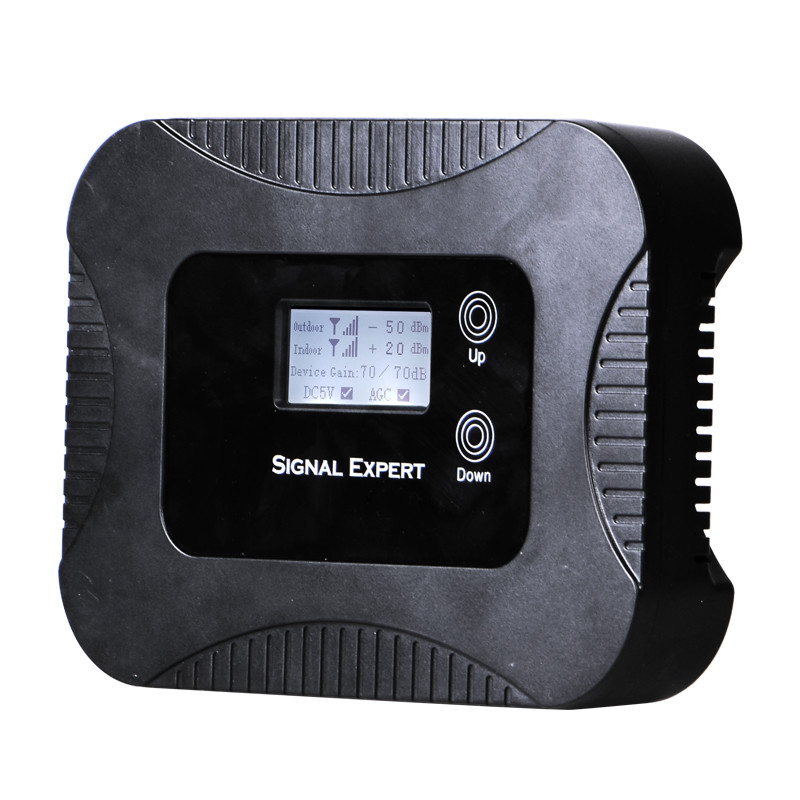

1900MHz 3G Signal Booster Portable Repeater Output Power 17dbm
Cellular Repeater Amplifier Mobile Signal Booster 1900MHz
The 1900MHz PCS Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Description
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 1850-1910MHz |
| Downlink | 1930-1990MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 60MHz | |
| Gain | 70dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 17±3dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 3dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | SMA(F) | |
| Operating Temperature | - 10°C ~ + 55°C | |
| Dimensions | 165*130*40 (mm) | |
| HS Code | 8543709200 | |
Further detail pls click here for downloading the products specification:
PCS 1900MHz B07 Signal Repeater.pdf
Products Spect:
Model No :MS-1900
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 2) 1900MHz -- Uplink frequency: 1850-1910MHz /Downlink frequency : 1930-1990MHz
Network support :2G, 3G
Gain :70dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: N-female connector.
Feature:
- Strong output power, wide coverage area .
- LCD display signal in real time .
- High gain can support multiple loads .
Shipping
● We will send your parcel as soon as possible after payment confirmed, Within 48 hours for normal,Except weekend and Chinese holidays.
● Please provide your correct address,full name,and zip code.
● We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Feedback
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.
|
| Brand Name: | ATNJ |
| Model Number: | AS-P |
| MOQ: | 5Pcs |
| Price: | USD+40---49+kit |
| Packaging Details: | Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
1900MHz 3G Signal Booster Portable Repeater Output Power 17dbm
Cellular Repeater Amplifier Mobile Signal Booster 1900MHz
The 1900MHz PCS Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Description
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 1850-1910MHz |
| Downlink | 1930-1990MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 60MHz | |
| Gain | 70dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 17±3dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 3dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | SMA(F) | |
| Operating Temperature | - 10°C ~ + 55°C | |
| Dimensions | 165*130*40 (mm) | |
| HS Code | 8543709200 | |
Further detail pls click here for downloading the products specification:
PCS 1900MHz B07 Signal Repeater.pdf
Products Spect:
Model No :MS-1900
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 2) 1900MHz -- Uplink frequency: 1850-1910MHz /Downlink frequency : 1930-1990MHz
Network support :2G, 3G
Gain :70dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: N-female connector.
Feature:
- Strong output power, wide coverage area .
- LCD display signal in real time .
- High gain can support multiple loads .
Shipping
● We will send your parcel as soon as possible after payment confirmed, Within 48 hours for normal,Except weekend and Chinese holidays.
● Please provide your correct address,full name,and zip code.
● We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
● Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Feedback
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.
