Elbow RF SMA Type Male To Female Connector For Network Booster

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: SMA Male-Female

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+1--3+kit

Packaging Details: Standard neutral packing3.5x3.5x3.5cm(1pcs),

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

SMA Type Male To Female Connector

,

Elbow RF Network Booster Connector

,

Elbow RF Male To Female Connector

Impedance:
50OHm
RF Connect Type:
SMA Male-Female
Description:
SMA Male To SMA Female Right Angle RF Adapter
Number Of Cores:
Single-Core
Material:
Copper
Insulator:
PTFE/Plastic
Working Temp:
-40'C~+150'C
Products Name:
Cell Phone Booster
Impedance:
50OHm
RF Connect Type:
SMA Male-Female
Description:
SMA Male To SMA Female Right Angle RF Adapter
Number Of Cores:
Single-Core
Material:
Copper
Insulator:
PTFE/Plastic
Working Temp:
-40'C~+150'C
Products Name:
Cell Phone Booster
Elbow RF SMA Type Male To Female Connector For Network Booster



                                            Elbow RF SMA Type Male To Female Connector For Network Booster


  The connector housing and pin in center are made of pure brass to ensure a lower VSWR for higher transmission efficiency;SMA Male with A pin in center to SMA Female with A hole in center.
The SMA adapters Made of pure brass, has good connectivity. Antenna connectors for 4G LTE antenna devices, cellular repeater and other test equipment are widely used in low-frequency devices.

Product Description

Temperature range

-40~+85°C

Vibration

100m/s2 (10~500Hz)

Impedance

50 OHM

Frequency Range

DC – 11GHz

Working Voltage

2700V max

Break-down Voltage

4000V rms @ sea level

Contact resistance

≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contact

Average power

3KW max

Insulation resistance

≥10000M OHM

VSWR

≤ 1.10

Durability (mating)

≥500 (cycles)

Further detail pls click here for downloading the products specification:

ATNJ Mobile Signal Repeater.pdf

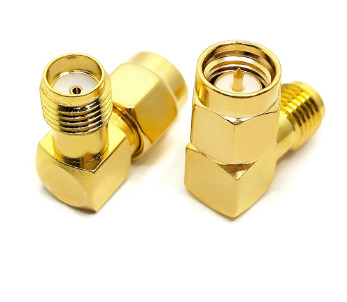

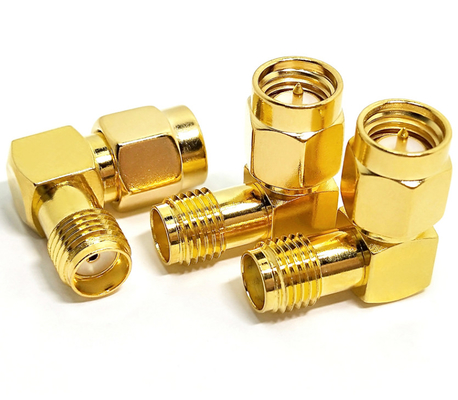

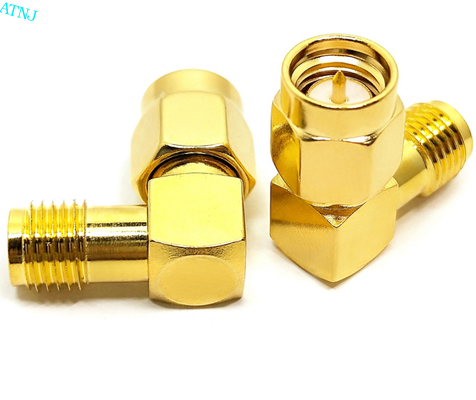

Elbow RF SMA Type Male To Female Connector For Network Booster 0Elbow RF SMA Type Male To Female Connector For Network Booster 1Elbow RF SMA Type Male To Female Connector For Network Booster 2



Elbow RF SMA Type Male To Female Connector For Network Booster 3Elbow RF SMA Type Male To Female Connector For Network Booster 4Elbow RF SMA Type Male To Female Connector For Network Booster 5

Elbow RF SMA Type Male To Female Connector For Network Booster 6



FAQ :


Q1 : How to select RF connectors?
A1 :
N type male female crimp connector for LMR195 LMR200 LMR240 LMR300 LMR400 LMR600 RG8U RG58 Cable
Q2 : Are you trading company or manufacturer?
A2 : We are factory.



Q3 : How long is your delivery time?

A3 : Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity and custom requirement.


Q4 : Can your company accept customize?
A4 : Welcome OEM & ODM.


Q5 : What is your payment terms?
A5 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.


Q6 : Can you send a sample for us to develop?

A6 : Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
