Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material

5Pcs
MOQ
USD+40---49+kit
Price
Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material
Features Gallery Product Description Request A Quote
Features
Specifications
Device Gain: 70dB
Output Power: 17dbm
Frequency Range: 1920-1980MHz，2110-2170MHz
Color: Black ,White Customized
Interface:: SMA/F
Products Type: Signal Amplifier
Coverage: 100-300m2
Product Name: CDMA/GSM/DCS/WCDMA/LTE Mobile Phone Signal Booster/Repeater
Highlight:

2100MHz 3G Signal Repeater

,

ROHS 3G Signal Repeater

,

2100MHz Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-D
Document: WCDMA 2100MHz B07 Signal Re...er.pdf
Payment & Shipping Terms
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Product Description

Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material



Mobile Signal Booster 2100MHz Cellular Repeater Amplifier Band1



Selling Point

2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.



Description

Specifications Parameters
Frequency Range (Customers to Choose) Uplink 1920-1980MHz
Downlink 2110-2170MHz
Frequency Bandwidth (3dB Bandwidth) 75MHz
Gain 70dB
Automatic gain control (Step Attenuation) 31dB @ 1dB/ Step
Auto Gain Control 20dB Min.
Output Power(Customers to Choose) 17±3dBm
Spurious Emission ≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple ≤ 3dB
VSWR <=2
I/O Impedance 50 Ω
Noise Figure ≤ 5dB
System Delay ≤ 5μs
RF Connector(Customers to Choose) SMA(F)
Operating Temperature  - 10°C ~ + 55°C
Dimensions 165*130*40 (mm)
Indication LED Power supply

Further detail pls click here for downloading the products specification:

WCDMA 2100MHz B07 Signal Repeater.pdf

Product Images

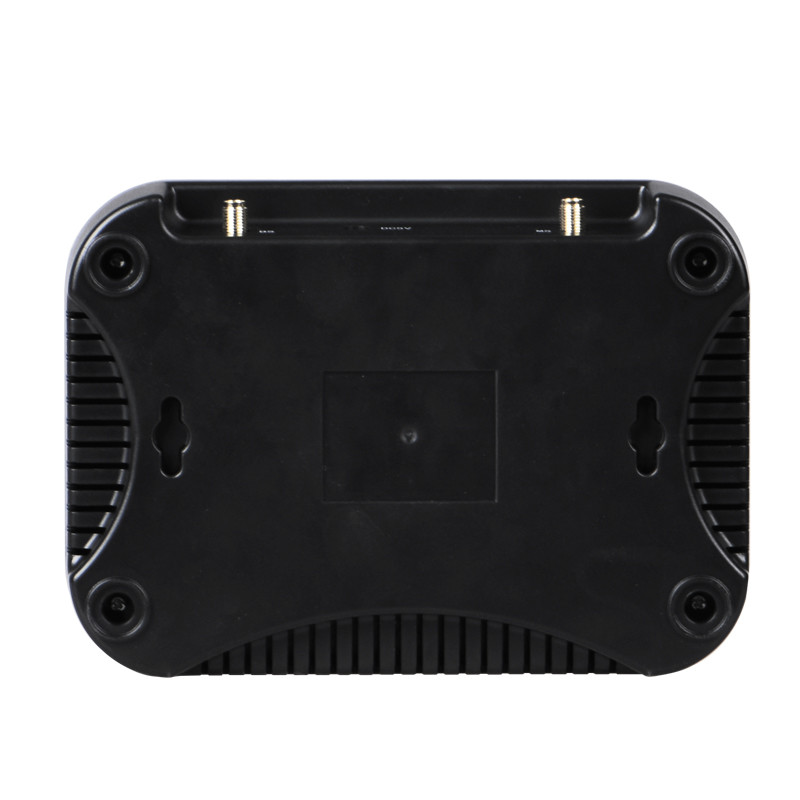

Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material 0Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material 1

Feature:



- Strong output power, wide coverage area .

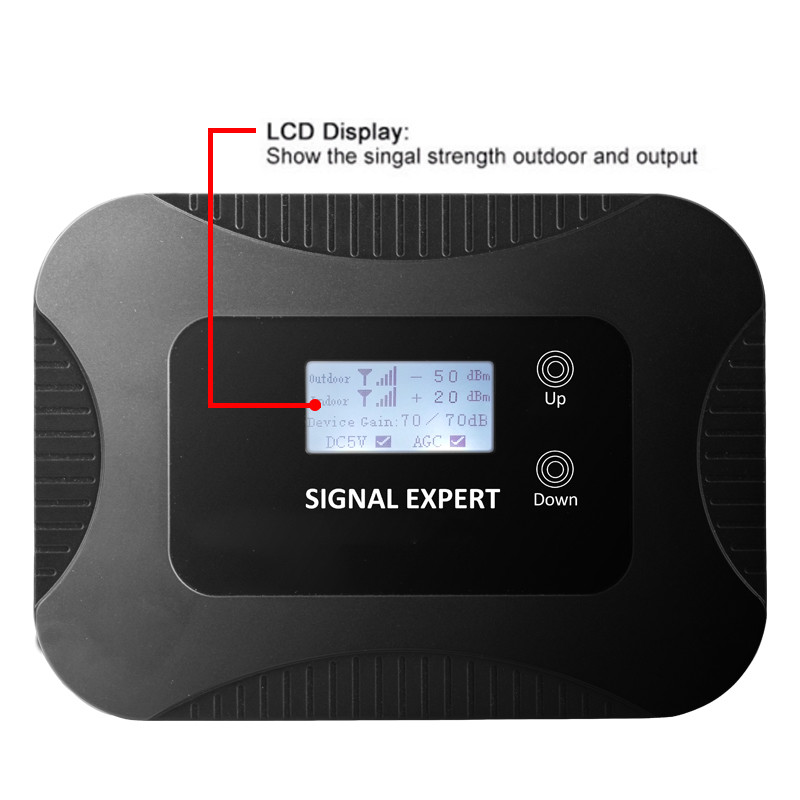

- LCD display signal in real time .

- High gain can support multiple loads .

Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material 2Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material 3

Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material 4Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material 5Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material 6



FAQ




1.  Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2.  Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3.  Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4.  What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5.  Please feel free to contact us if any other questions.
