Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB900/2100/P
Document: 900+2100MHz C03 Mobile Sign...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+70---85+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Color: |
Black Or Gold Or Customized |
Warranty: |
36 Months |
Packing Size: |
52x21x16cm |
Products Type: |
Outdoor Antenna, Lintratek |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Color: |
Black Or Gold Or Customized |
Warranty: |
36 Months |
Packing Size: |
52x21x16cm |
Products Type: |
Outdoor Antenna, Lintratek |
Dual Band 70dB Gain Mobile Range Extender Bi Directional Amplifier
LCD Display Dual Band Repeater 2G 3G 4G 900 / 2100MHz 70dB Mobile Signal Amplifier
Selling Point
Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.
Pico Repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 100M2-1000M2,which is a very economical solution. The output power is up to 20dBm per carrier.
Meanwhile, it can also boost the speed of GPRS.
The advantages of this dual band repeater include:

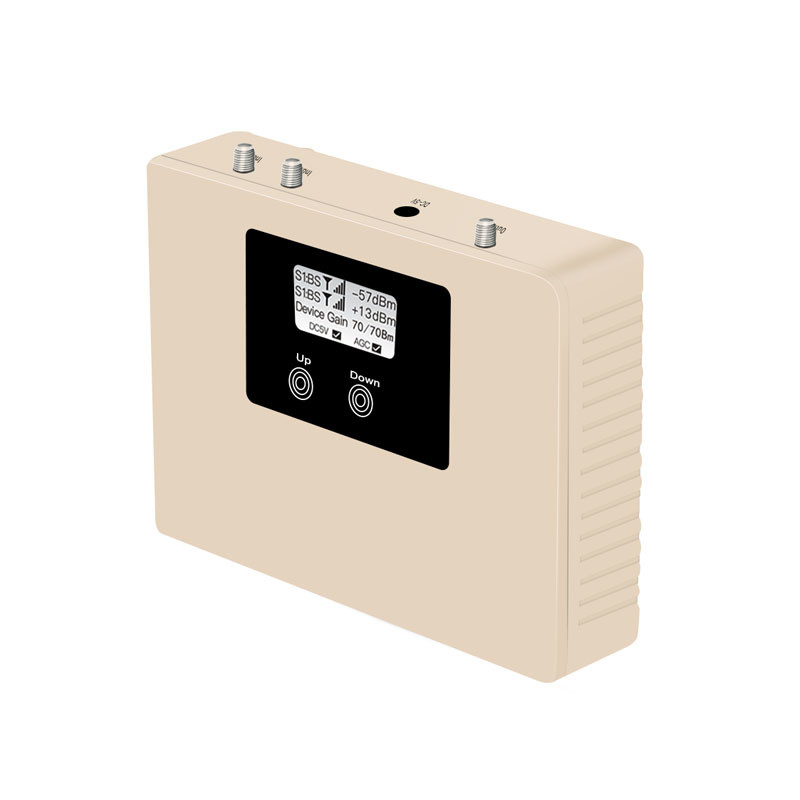

LCD Display.
Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
Sleep Mode.
In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.
Automatic Adjustment Of Operation.
Dual band repeater can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz, 1920-1980MHz |
|
Downlink |
935-960MHz, 2110-2170MHz |
|
|
Frequency Bandwidth |
25MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
900+2100MHz C03 Mobile Signal Repeater.pdf
Product Description
Model No : JS-DB900/2100/P
Can control gain automatically. Avoid base station interference
Network support : GSM 2G + WCDMA 3G/4G
Installation Approaches
1. Fix up outdoor antenna reception on housetop and point to signal tower;
2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4. Plug power adaptor into AC power socket and finish installation.
Accessories
a. One dual band signal booster;
b. Two indoor antenna;
c. One outdoor antenna;
d. 20meter cable and 5meter cable;
e. User manual;
f. Power adapter.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. How many square meters can be covered?
For different models, the covered square meters are different.
5. How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
6. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
