| Brand Name: | ATNJ |
| Model Number: | ATNJ-FDD/TDD-LTE2.6-65-17 |
| MOQ: | 5Pcs |
| Price: | USD+130---160+kit |
| Packaging Details: | Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

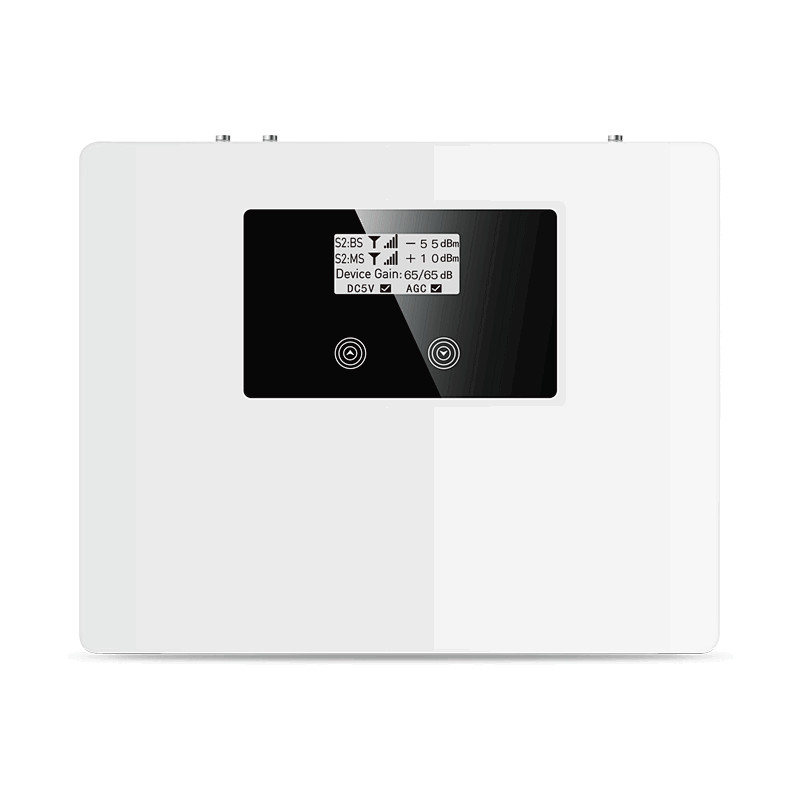

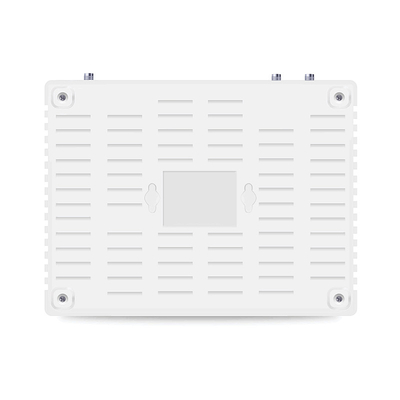

LTE Dual Band Repeater 4G
FDD/TDD1800+2600MHz -LTE2.6-65-17 4G Dual band signal booster
|
FDD1800M Uplink:1710~1735MHz Downlink:1805-1830MHz |
|
TDD2600M Uplink:2575~2675MHz Downlink:2575-2675MHz |
Mobile Signal Booster Echnical parameter
|
Uplink-signal booster |
Downlink |
|
|
Max Gain |
65 |
65 |
|
Max Gain error |
3± |
3± |
|
ALC Working Range |
≥17 |
≥17 |
|
Passband Ripple |
≥6 |
≥6 |
|
Receiver Sensitivity |
≥90 |
... |
|
Max Power |
17±3 |
20±3 |
|
Spurious Emission |
≤-36dBm/100KHz |
≤-36dBm/100KHz |
|
Intermodulation Attenuation |
≤-45 |
≤-45 |
|
Signal Booster VSWR |
≤25 |
≤25 |
|
System Delay |
≤2μs |
Further detail pls click here for downloading the products specification:
1800+2600MHz A034 5G Signal Repeater.pdf
Mobile Signal Booster Parameter index
|
Working Voltage-mobile signal booster |
DC24V |
|
Working Current |
<5A |
|
Signal Booster Power Supply |
AC 100~240V 50/60Hz |
|
Working Temperature |
-25°c~+55°c |
|
Working Relative Humidity |
≤85°c |
|
RF connector |
SMA-K |
|
FDDI connector |
FC/APC |
|
Dimensions |
205X150X38 |
|
Signal Booster Weight |
0.6kg |
Mobile Signal Booster Installation Diagram
|
|
| Brand Name: | ATNJ |
| Model Number: | ATNJ-FDD/TDD-LTE2.6-65-17 |
| MOQ: | 5Pcs |
| Price: | USD+130---160+kit |
| Packaging Details: | Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
LTE Dual Band Repeater 4G
FDD/TDD1800+2600MHz -LTE2.6-65-17 4G Dual band signal booster
|
FDD1800M Uplink:1710~1735MHz Downlink:1805-1830MHz |
|
TDD2600M Uplink:2575~2675MHz Downlink:2575-2675MHz |
Mobile Signal Booster Echnical parameter
|
Uplink-signal booster |
Downlink |
|
|
Max Gain |
65 |
65 |
|
Max Gain error |
3± |
3± |
|
ALC Working Range |
≥17 |
≥17 |
|
Passband Ripple |
≥6 |
≥6 |
|
Receiver Sensitivity |
≥90 |
... |
|
Max Power |
17±3 |
20±3 |
|
Spurious Emission |
≤-36dBm/100KHz |
≤-36dBm/100KHz |
|
Intermodulation Attenuation |
≤-45 |
≤-45 |
|
Signal Booster VSWR |
≤25 |
≤25 |
|
System Delay |
≤2μs |
Further detail pls click here for downloading the products specification:
1800+2600MHz A034 5G Signal Repeater.pdf
Mobile Signal Booster Parameter index
|
Working Voltage-mobile signal booster |
DC24V |
|
Working Current |
<5A |
|
Signal Booster Power Supply |
AC 100~240V 50/60Hz |
|
Working Temperature |
-25°c~+55°c |
|
Working Relative Humidity |
≤85°c |
|
RF connector |
SMA-K |
|
FDDI connector |
FC/APC |
|
Dimensions |
205X150X38 |
|
Signal Booster Weight |
0.6kg |
Mobile Signal Booster Installation Diagram
