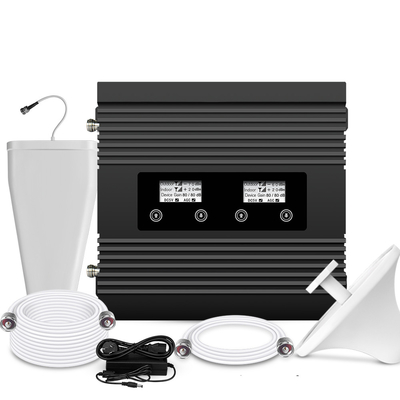

4G- 800MHz 2600MHz Dual Band Signal Booster 4G Cell Phone Repeater For Home Office

Product Details

Place of Origin: China

Brand Name: ATNJ

Model Number: AS-012

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+240---260+kit

Packaging Details: Standard neutral packing,48x46x18cm(1 kit)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

27dBm 2600MHz Dual Band Signal Booster

,

80dB 800MHz 4G Cell Phone Repeater

,

27dBm 2600MHz 4G Cell Phone Booster

Certification:
CE ROHS CCC TUV ISO
Frequency Range:
(Band 20) 800MHz 832-863MHz/ 791-821MHz(Band 41) 2600MHz : 2496-2690MHz/ 2496-2690MHz
Products Name:
Signal Booster
Gain:
80dB
Output Power:
27dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
ALC Intelligent Function:
Done
Power Supply:
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter)
Certification:
CE ROHS CCC TUV ISO
Frequency Range:
(Band 20) 800MHz 832-863MHz/ 791-821MHz(Band 41) 2600MHz : 2496-2690MHz/ 2496-2690MHz
Products Name:
Signal Booster
Gain:
80dB
Output Power:
27dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
ALC Intelligent Function:
Done
Power Supply:
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter)
4G- 800MHz 2600MHz Dual Band Signal Booster 4G Cell Phone Repeater For Home Office

800MHz 2600MHz Dual Band Signal Booster 4G Cell Phone Repeater



Dual Band 4G Cell Phone Booster Ampilifier 800/2600MHz Mobile Signal Repeater



You are probably wondering what a cell phone signal booster actually is. This is a common reaction that people have, and we are taking a moment to explain it to you. In the current age of mobile technologies, where the personal devices are wireless and private, every device is backed by a “backbone” wireless network carrier, which could be one of the many major carriers in the country, such as Vodafone. Over the years, the carriers have developed their infrastructure well and have been able to cover most of the country. But there are large parts of the country where the signal coverage is weak or reaches sparingly. This is where the cell phone repeater comes into play. They resolve calls data and LTE reception mainly. In terminology, we call correspondingly 2G 3G and 4G signal.



Dual Band Signal Booster​ Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

832-862MHz,2496-2690MHz

Downlink

791-821MHz, 2496-2690MHz

Frequency Bandwidth (3dB Bandwidth)

30MHz&75MHz

Gain

80dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

27dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter)

Dimensions

165*130*40 (mm)

Antenna

Log Periodic Antenna +Ceiling Antenna

Further detail pls click here for downloading the products specification:

800+2600 A009 Repeater.pdf

Dual Band Signal Booster Description

HOW IT WORK?

The outdoor antenna installed on the roof receives mobile phone’s signal and transmits it to the amplifier host through coaxial jumpers. The host amplifies the mobile signal and transmits it to the indoor space through the indoor antenna.

No inter-linkage between coaxial cable and mobile phone is needed, and mobile phones inside the house can get better mobile signals.


Boost: 4G Network

Coverage: 350-800 Square Meters

Suitable For: Russia,Spain,France,Ukraine,Europe,Asia,etc

Warranty: 3 Years!
