700MHz 4G Signal Repeater
| Frequency Range: | Uplink:703-748MHz,Downlink:758-803MHz | Gain: | 70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
| Output power: | 17-20dBm | Color: | White,Blue,Cuztomized |
| AGC Intelligent function: | Done,31dB @ 1dB/ Step | ALC Intelligent function: | Done |
| MGC: | Done | Bandwidth: | Supports 10MHz From 0.2 To 10MHz Bandwidth Adjusted |
| In-band Ripple: | ≤ 3dB | VSWR: | <=2 |
| Noise Figure: | ≤ 5dB | System Delay: | ≤ 5μs |
| RF Connect Type: | SMA/Female | Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
| Inter-Modulation Attenuation ACPR: | ≤ -40dBc / 30kHz (measured Under Rated Output Power) | Weight: | 1.85kg |
| Packing size: | 54x19x16cm | ||
| High Light: | 700MHz 4G Signal Repeater,70dB 4G Signal Repeater,20dBm 700MHZ Signal Booster |
||
700MHz 4G Signal Repeater
Digital Band28 700MHz LTE 4G Mobile Signal Booster Selected Band Cellular Amplifier Signal Repeater For Mobile Operator
Technical Specifications
Digital Selected Band28 700MHz specially for mobile provider need.
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
703-748MHz |
|
Downlink |
758-803MHz |
|
|
Frequency Bandwidth (Adjustable) |
10MHz from 0.2 to 10MHz bandwidth adjusted |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
Single band LTE 700MHz RF Repeater.pdf
Selling Point
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.

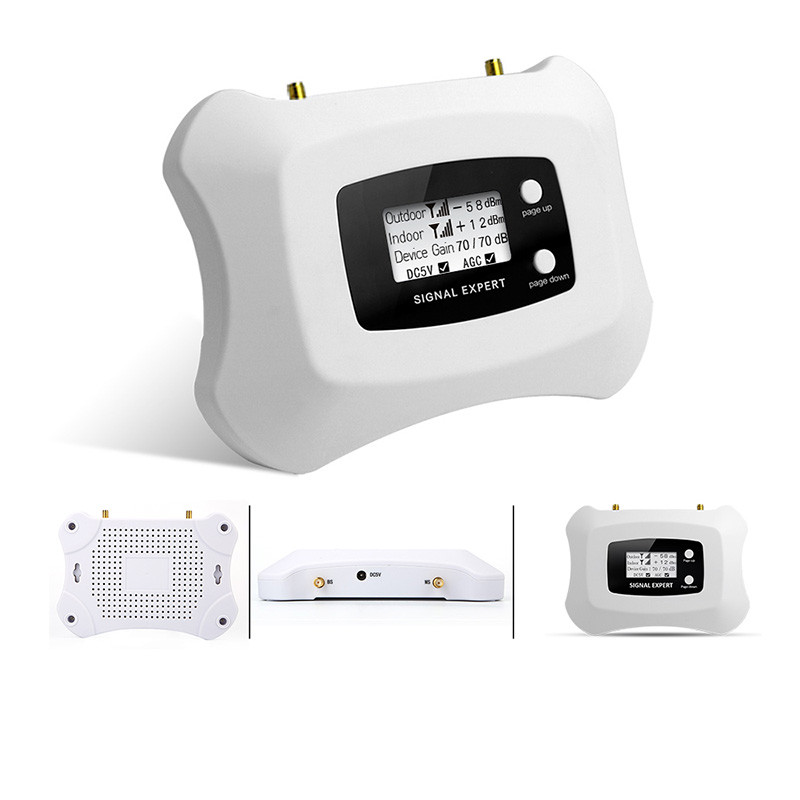

1, Intelligent to guide the installation with LCD

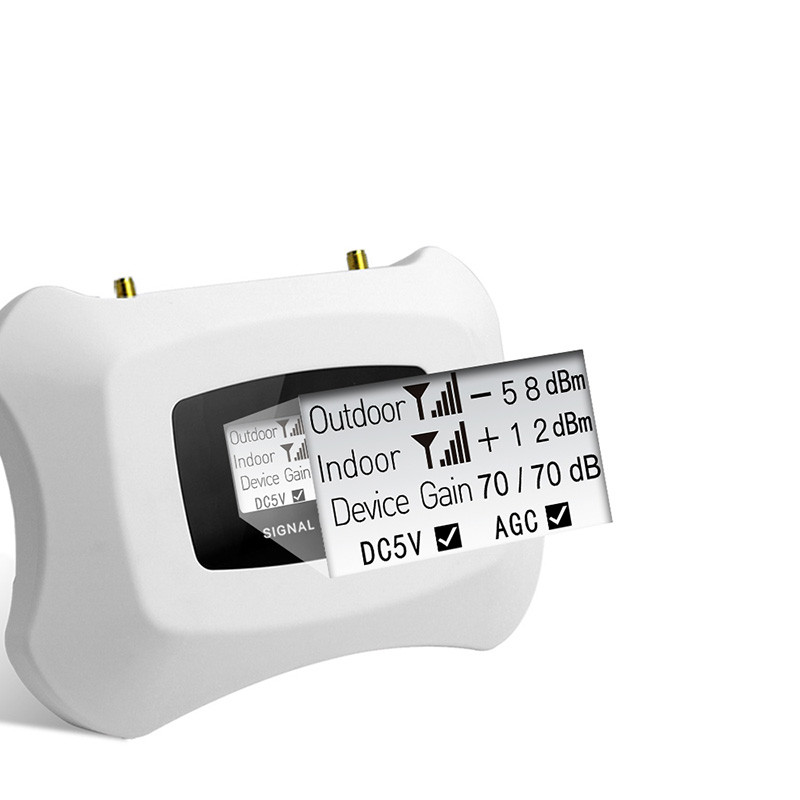

2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
7, Supports 10MHz from 0.2 to 10MHz bandwidth adjusted
Product Description
We will send the correct plug adapter which is suitable for you according with the shipping address.

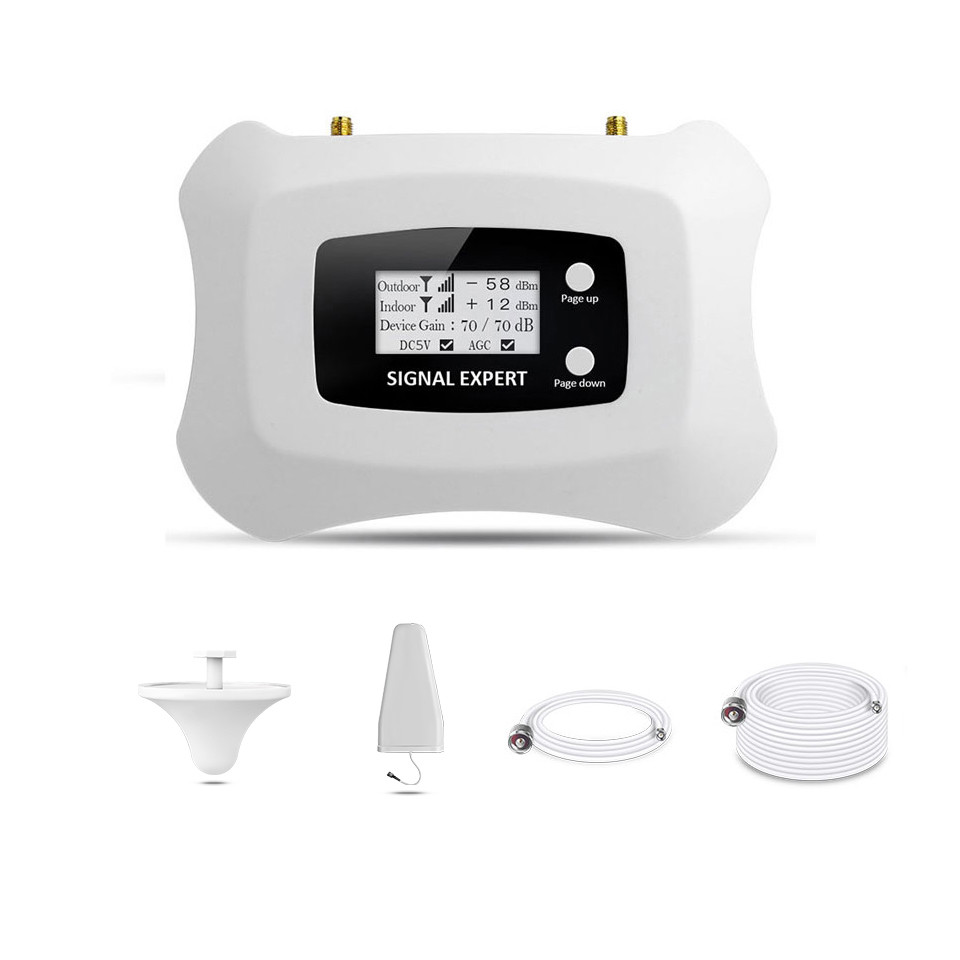

Easy to Install In 6 steps!
[1] Install the outdoor antenna on the roof, Face to signal tower.
[2] Connects one end of 15 meters coaxial cable with outdoor antenna.

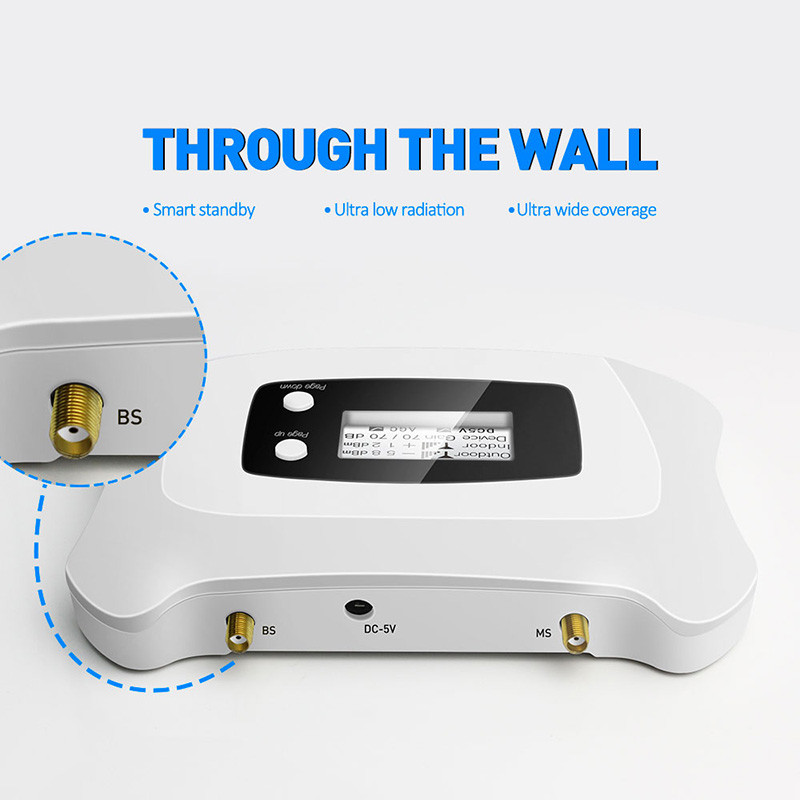

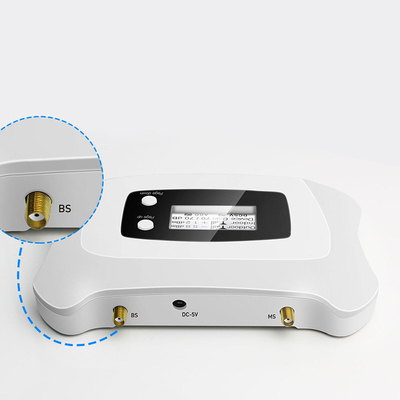

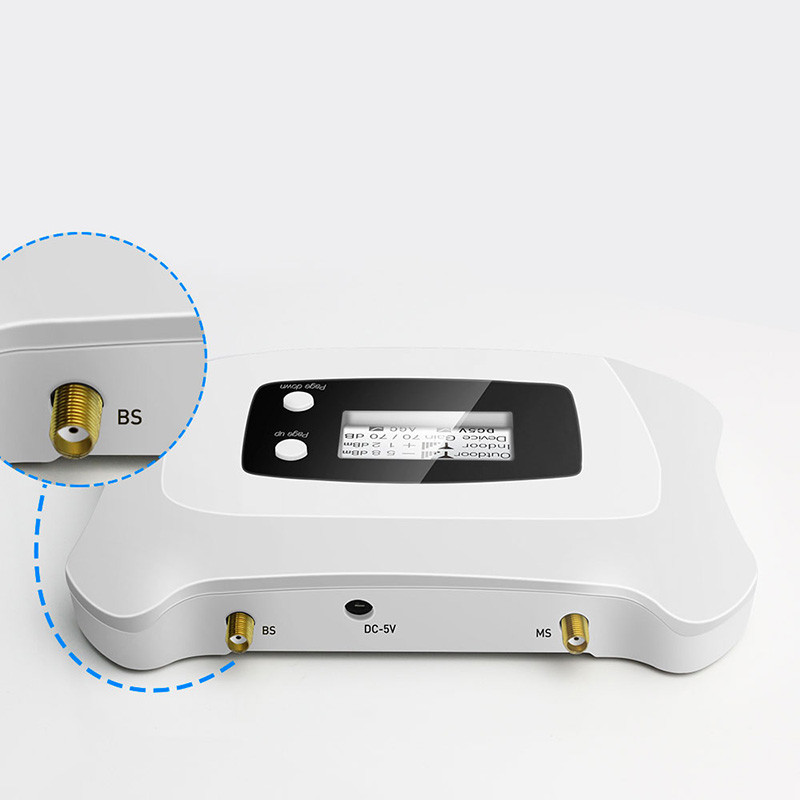

[3] The other end of 15 meters coaxial cable connects "BS" port.
[4] 5m Cable connect indoor antenna and "MS" port.
[5] Find an appropriate position to place the inside antenna.
[6] Power up and it is done. Cell phone signal would be full bars in moment.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
-
