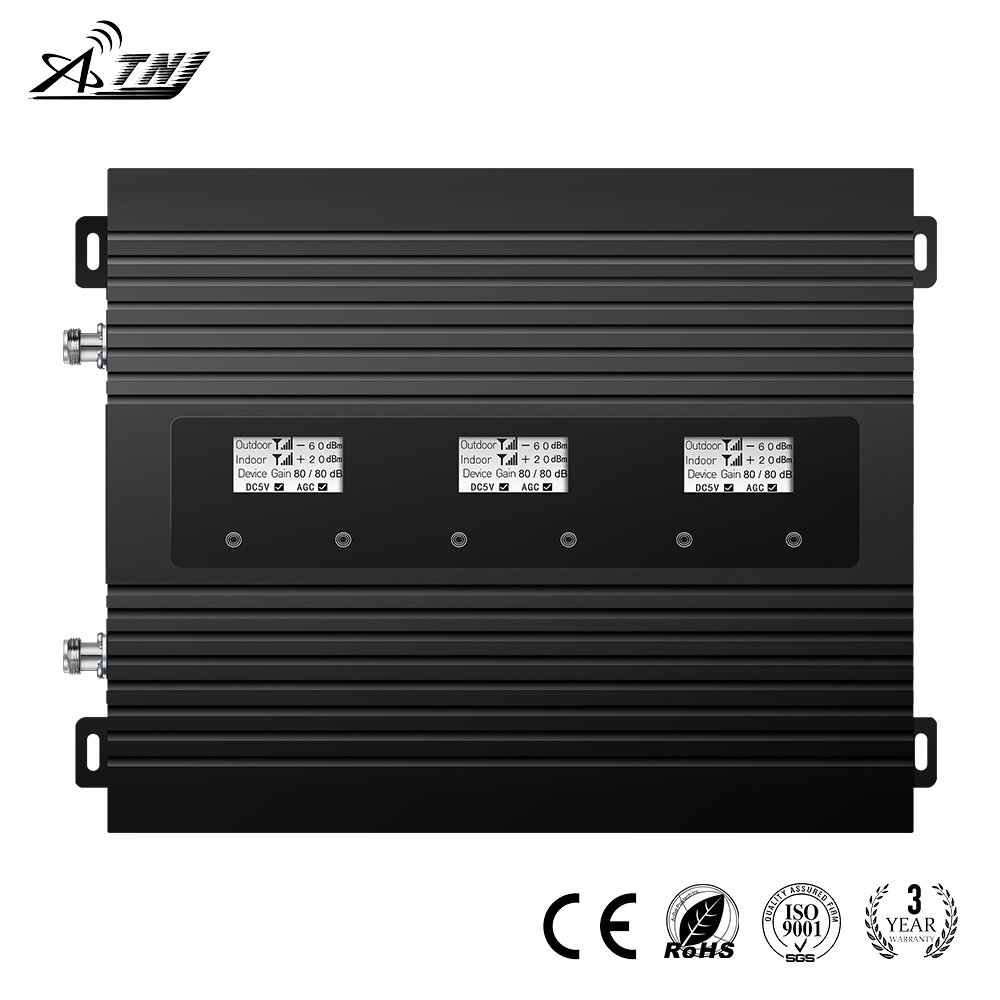

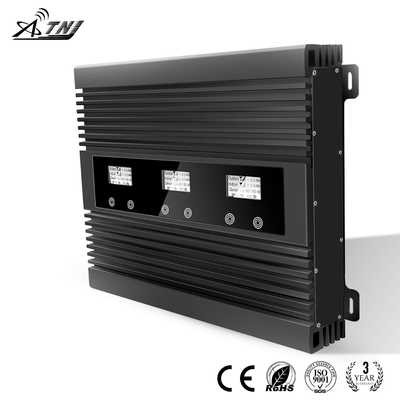

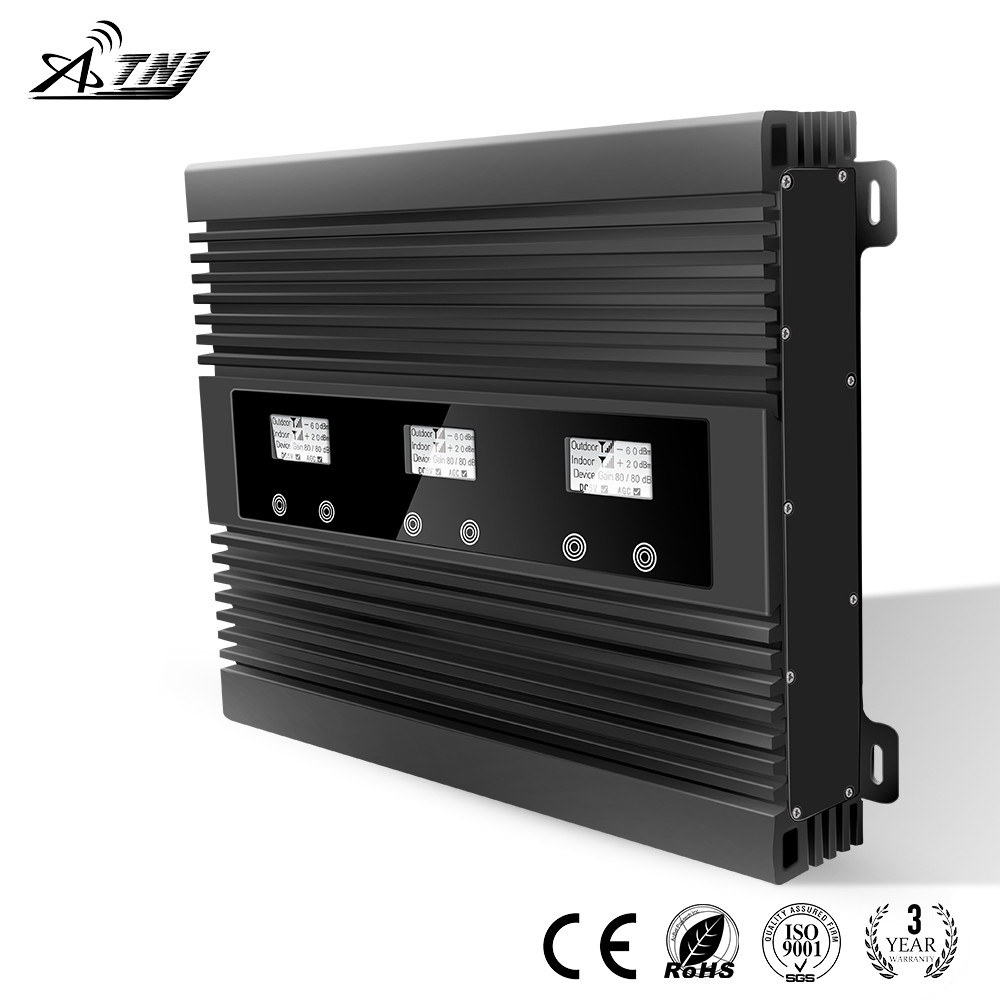

850MHz 1700MHz 1900MHz Multi Band Repeater Mobile Amplifier Repeater
2G 3G 4G Multi-band Mobile Signal Booster 850/1700/1900MHz Amplifier Repeater
You are probably wondering what a cell phone signal booster actually is. This is a common reaction that people have, and we are taking a moment to explain it to you. In the current age of mobile technologies, where the personal devices are wireless and private, every device is backed by a “backbone” wireless network carrier, which could be one of the many major carriers in the country, such as Vodafone. Over the years, the carriers have developed their infrastructure well and have been able to cover most of the country. But there are large parts of the country where the signal coverage is weak or reaches sparingly. This is where the cell phone repeater comes into play. They resolve calls data and LTE reception mainly. In terminology, we call correspondingly 2G 3G and 4G signal.
A cell phone booster is a device that gathers the signal from the air, usually through an outdoor unit (such as an antenna), and “conveys” this signal to an indoor unit that is supposed to boost the signal. This conveying is done through a wired connection between the outdoor antenna and the indoor unit. The indoor cell phone booster, in turn, is provided with external power through a power outlet and has a complex circuitry that allows it to amplify the weak signal that has been received by the outdoor antenna. The indoor unit then sends the electrical signal to the indoor antenna that is directly connected to the unit, and the antenna converts the electrical signal to waves of the same frequency as were received by the outdoor unit. This, the frequency range of the waves does not change, and the cell phones do not notice any difference, except for a dramatic increase in the signal power that they are receiving.
Thus, as we can see, cell phone signal boosters are devices that literally boost the cell phone signal that you are receiving. This is done through some complex circuitry that works through the use of external power and boosts the signal to usable levels.
Technical Specifications
|
Specifications
|
Parameters
|
|
Frequency Range (Customers to Choose)
|
Uplink
|
824-849MHz,1710-1755MHz,1850-1910MHz
|
|
Downlink
|
869-894MHz, 2110-2155MHz,1930-1990MHz
|
|
Frequency Bandwidth (3dB Bandwidth)
|
25MHz&75MHz&60MHz
|
|
Gain
|
80dB
|
|
Automatic gain control (Step Attenuation)
|
31dB @ 1dB/ Step
|
|
Auto Gain Control
|
20dB Min.
|
|
Output Power(Customers to Choose)
|
27dBm
|
|
Spurious Emission
|
≤ -15dBm/30kHz
|
|
9kHz~1GHz: ≤ -36dBm/30kHz
|
|
1GHz~12.75GHz: ≤ -30dBm/30kHz
|
|
Inter-Modulation Attenuation ACPR
|
≤ -40dBc / 30kHz (measured under rated output power)
|
|
In-band Ripple
|
≤ 3dB
|
|
VSWR
|
<=2
|
|
I/O Impedance
|
50 Ω
|
|
Noise Figure
|
≤ 5dB
|
|
System Delay
|
≤ 5μs
|
|
RF Connector(Customers to Choose)
|
N(Female)
|
|
Operating Temperature
|
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
|
|
Power Supply
|
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
|
|
Dimensions
|
165*130*40 (mm)
|
|
Weight
|
≤0.8 kg(Net)
|
|
Origin
|
Shenzhen,CN
|
Further detail pls click here for downloading the products specification:
850+1700+1900 A013 Signal Repeater.pdf
Products Spect:
Model No :AS-850/1700/1900H
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 5) 850MHz -- Uplink frequency: 824-849MHz/Downlink frequency : 869-894MHz
(Band 4) 1700MHz -- Uplink frequency: 1710-1755MHz/Downlink frequency : 2110-2155MHz
(Band 2) 1900MHz -- Uplink frequency: 1850-1910MHz/Downlink frequency : 1930-1990MHz
Network support : 2G/3G/4G, Calling
Gain :80±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: N-female connector.
Selling Point
Brand: ATNJ Frequency :GSM 900mhz DCS 1800mhz WCDMA 2100mhz Up Link: 890--915MHZ 1710-1785MHZ 1920-1980MHZ Down Link: 935-960MHZ 1805-1880MHZ 2110-2170MHZ Gain:82dB Output Power: 27dBm Bandwidth:25M/75M/60M Noise Figure:<=6 VSWR:<=3 Connector Type:N Female
What is Included
[1] 850+1700+1900 mhz Tri Band Booster Base Unit [2] AC Power Cord [3] Outdoor Panel Antenna [4] Indoor Panel Antenna [5] 15 +5 Meters White Coax. Cable
We are manufacturer, and have our own factory.
Shipping
●We will send your parcel as soon as possible after payment confirmed, Within 48 hours for normal,Except weekend and Chinese holidays.
●Please provide your correct address,full name,and zip code.
●We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
