2G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display

5Pcs
MOQ
USD+100---120+kit
Price
2G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display
Features Gallery Product Description Request A Quote
Features
Specifications
900MHz Frequency Range: 890-915MHz / 935-960MHz
1800MHz Frequency Range: 1710-1785MHz / 1805-1880MHz
Products Name: GSM Repeater Booster
Color: Gold, Black, White, Customized
RF Connect Type: N/Female
Weight: 4kg
Packing Size: 52x21x16cm
Products Type: Mobile Network Booster Cell Phone Signal Pakistan, Booster Signal
Highlight:

70dB Gain LTE Signal Booster

,

ROHS 70dB GSM Signal Booster

,

65dB GSM DCS LTE Signal Booster
Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB900/1800
Document: 900+1800MHz A032 mobile si...er.pdf
Payment & Shipping Terms
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Product Description

2G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display

2G 4G Dual Band Signal Booster GSM DCS 70dB Metal Cellular Repeater Amplifier

Selling Point


1. Intelligent to guide the installation with LCD


2. Real time display the signal strength.


3. Automatic dormancy when no user make the calling


4. Automatic alarm when installation mistake and provide the according solution


5. Automatic adjust the system gain to avoid the repeater self-excitation


6. Initiative reminding when the device was damaged.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

890-915MHz, 1710-1785MHz

Downlink

935-960MHz, 1805-1880MHz

Frequency Bandwidth

25MHz&75MHz

Gain

65±5dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

17±3dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

900+1800MHz A032 mobile signal repeater.pdf


Product Description


How does it work?

1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.



2G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 02G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 12G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 22G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 32G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 42G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 5

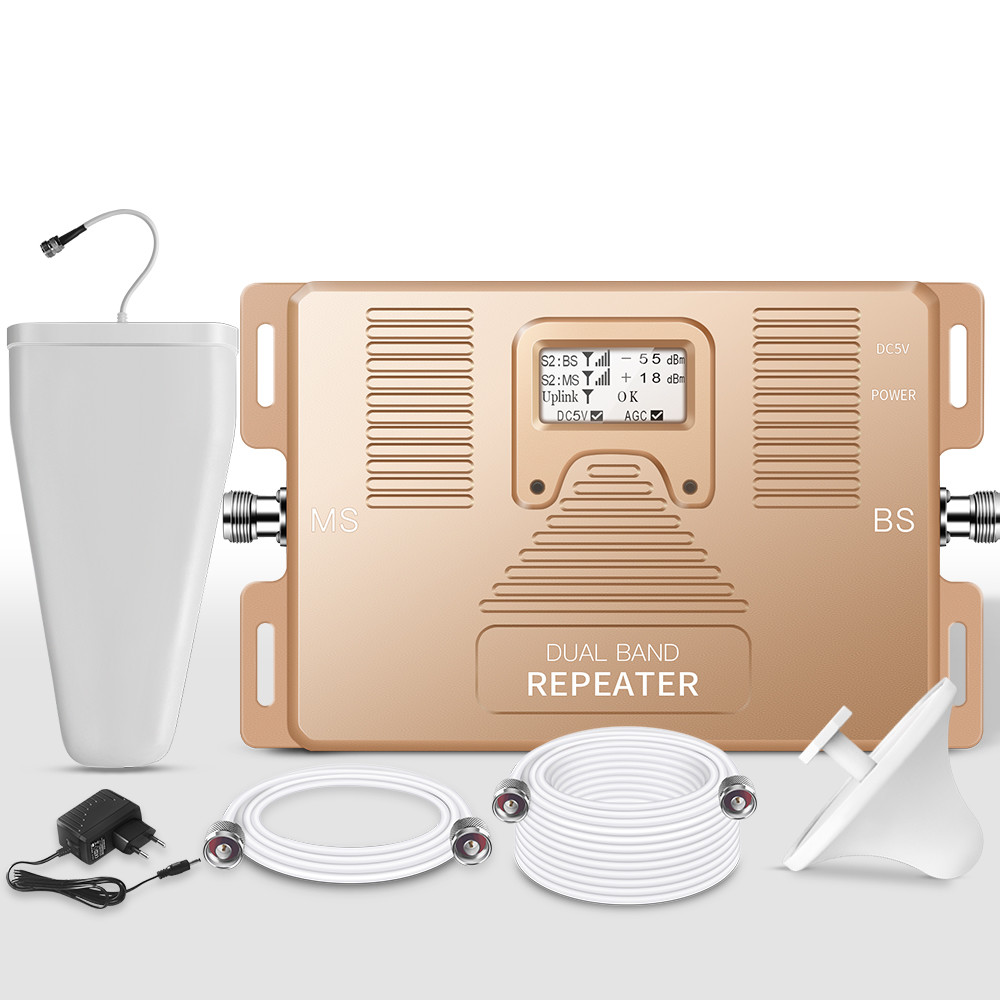

Packaging Including:

1. GSM 900MHz DCS 1800MHz Dual Band Booster
2. Power adapter
3. Outdoor Log-periodic antenna
4. Indoor Ceiling antenna
5. 5 meters cable
6. 20 meters cable




2G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 62G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 72G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 8

2G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 92G 4G GSM DCS 70dB Gain LTE Signal Booster With Smart LCD Display 10


FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?

Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
