Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-W
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Gain: |
70dB |
Output Power: |
17-20dBm |
Color: |
White,Blue,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
Packing Size: |
54x19x16cm |
Products Type: |
Repetidor De Seal Selular 8002700, Repetidor De Seal Selular Frecuencia 8002700 |
Frequency Range: |
1920-1980MHz/2110-2170MHz |
Gain: |
70dB |
Output Power: |
17-20dBm |
Color: |
White,Blue,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
Packing Size: |
54x19x16cm |
Products Type: |
Repetidor De Seal Selular 8002700, Repetidor De Seal Selular Frecuencia 8002700 |
2100MHz Cell Phone Signal Repeater CE ROHS CCC TUV BV ISO Approved
2100MHz Cell Phone Signal Repeatear 3G Mobile Signal Booster Signal Amplifier
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
|
Downlink |
2110-2170MHz |
|
|
Frequency Bandwidth |
60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
Single band WCDMA 2100MHz RF Repeater.pdf
Overview

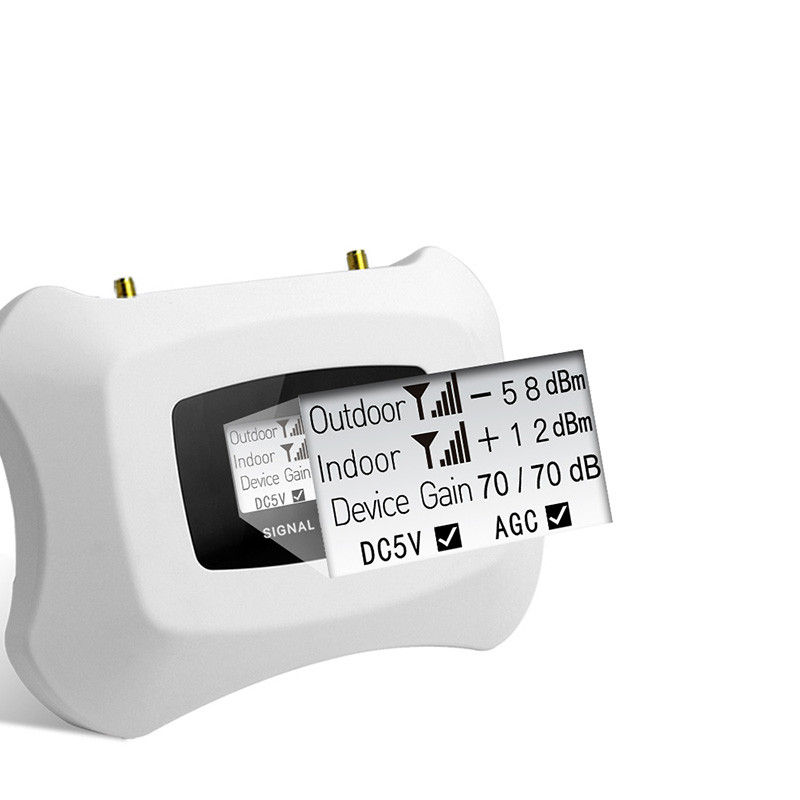

ATNJ2100MHz 3G Booster is one of the latest mobile signal amplifiers that ATNJ has to offer. A smart LCD screen displays the most important parameters of the device such as:
· Error notifications
· Installation guide
Compatible with most of the Europe ,Assia, Africa and Oceania network operators such as Vodafone, O2 and Eir, it operates at a standard 2100 MHz frequency. While specifically designed for improving 2100MHz 3G coverage for voice calls, it also boosts 3G signals, provided your 3G connection also operates at the 2100 MHz frequency. With a coverage area of about 300 m2 (3100 ft2), it is ideal for garages, small offices, homes, shops, and underground cafes, etc.
Here are some of the best features of ATNJ:
· LCD display. Thus, no need to rely on guesswork when you can see the device activity in real-time using an LCD screen. An intelligent display also shows the installation guide.
· Energy saving mode. When the device is not used, it goes into sleep mode and the screen turns off automatically.
· Compact and effective. Small sizew, light weight and modern design of this booster will make it a stylish accessory in your office or home. The LCD display makes it easier than ever for you to keep an eye on the device activity.
· 100% safe for human usage. All of ATNJ boosters are CE and RoHS complied for safety standards. Hence, they emit zero harmful radiations.
Buy ATNJ booster now for the best2100MHz 3G coverage on your iPhone or Android smartphone.
We will send the correct plug adapter which is suitable for you according with the shipping address.

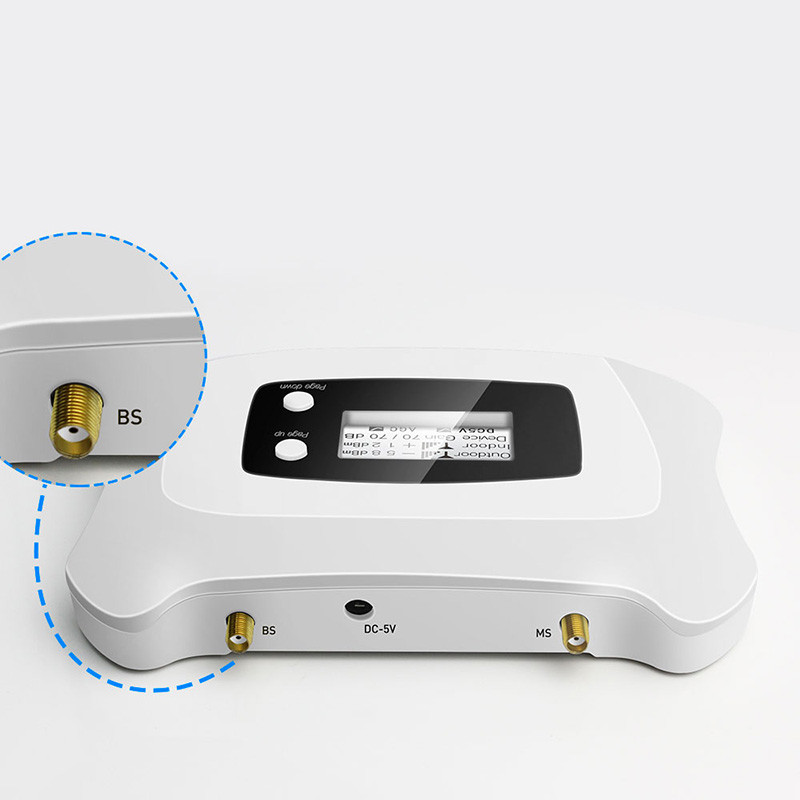

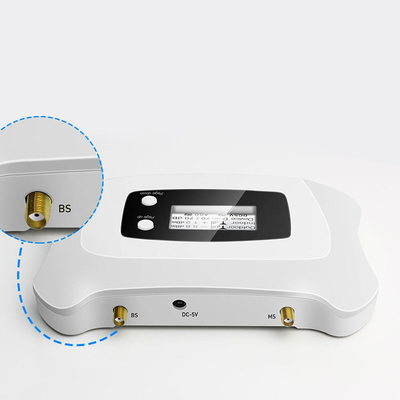

Easy to Install In 6 steps!
[1] Install the outdoor antenna on the roof, Face to signal tower.
[2] Connects one end of 15 meters coaxial cable with outdoor antenna.
[3] The other end of 15 meters coaxial cable connects "BS" port.
[4] 5m Cable connect indoor antenna and "MS" port.
[5] Find an appropriate position to place the inside antenna.
[6] Power up and it is done. Cell phone signal would be full bars in moment.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. How does a mobile phone repeater work?
A mobile phone repeater is a professional device that catches mobile signals from nearby tower, boosting and broadcasting them within the coverage area. The device is bi-directional which has 2 added benefits. On the one hand, it works to improve your signal reception. On the other hand, it amplifies the signal sent from your smartphone to the provider`s tower. The primary purpose of using a signal booster is to improve network coverage for faster 3G and 4G/LTE Internet streaming, social media and browsing as well as GSM voice calls.
