2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: JS-DB850/1700

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+100---120+kit

Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

2G 3G 4G Dual Band Signal Booster

,

70dB Dual Band Signal Booster

,

70dB Mobile Dual Band Repeater

850MHz Frequency Range:
824-849MHz / 869-894MHz
1700MHz Frequency Range:
1710-1755MHz / 2110-2155MHz
Gain:
70dB
Output Power:
20dBm
Color:
Gold,Black,White,Customized
Products Type:
Signal Amplifier 4G, Mobile Network Signal Outdoor Repeater
850MHz Frequency Range:
824-849MHz / 869-894MHz
1700MHz Frequency Range:
1710-1755MHz / 2110-2155MHz
Gain:
70dB
Output Power:
20dBm
Color:
Gold,Black,White,Customized
Products Type:
Signal Amplifier 4G, Mobile Network Signal Outdoor Repeater

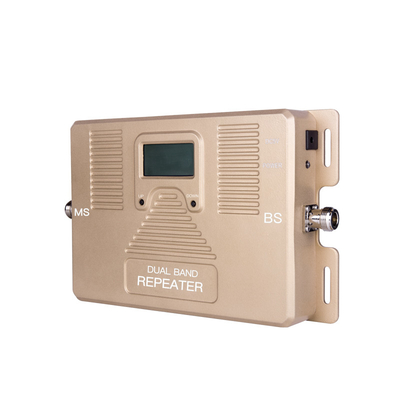

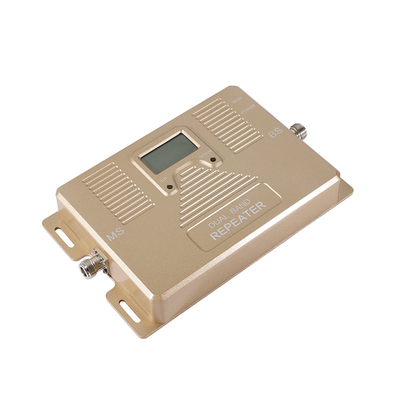

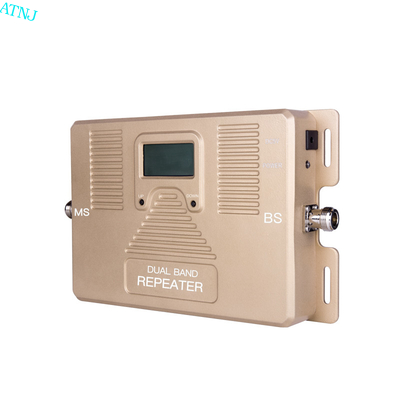

2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color

2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color



850 AWS Dual Band Signal Booster 2G 3G 4G Mobile Phone Extender Repeater Amplify



Selling Point



1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz, 1710-1755MHz

Downlink

869-894MHz, 2110-2155MHz

Frequency Bandwidth

25MHz&45MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

17±3dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

850+1700MHz A032 mobile signal repeater.pdf



Product Description



Signal booster could be used for both phone calls and the latest LTE network at the same time. There is no limit to the number of mobile devices that can benefit from the improved internet.



Not only improves mobile signals, but also reduces excessive radiation from mobile devices in areas with weak GSM/4G signal.



You get all the accessories for installation and you don't need to buy anything else. Installation is simple and quick - it takes about half an hour and no special knowledge is required.



2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color 0

2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color 1

2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color 2

2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color 3



2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color 4

2G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color 52G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color 62G 3G 4G Mobile Dual Band Signal Booster Customized Gold Color 7



We are manufacturer, and have our own factory.



FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.


4 Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.

5. Please feel free to contact us if any other questions.
