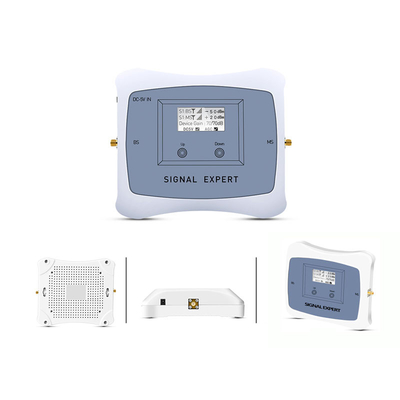

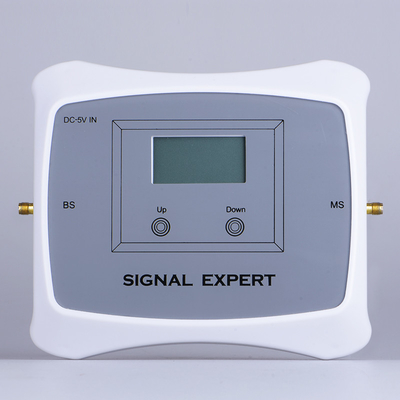

Customized 70dB Gain TDD 4G Signal Extender Band8 900Mhz Band 40 2300MHz LTE Cellular
| 2300MHz Frequency Range: | 2300-2400MHz/ 2300-2400MHz | Products Type: | 4G Signal Booster |
| Gain: | 70dB | Output power: | 20dBm |
| Color: | Grey & Cuztomized | RF Connect Type: | SMA/Female |
| Weight: | 4kg | Products type: | Anteena, Booster Repeater Lte Amplifier Dual Connector |
| High Light: | TDD 4G Signal Extender,70dB Gain 4G Signal Extender,2300MHz Repeater Booster 4G |
||
The Customized 70dB Gain TDD 4G Signal Extender provides an affordable solution to solve indoor signal coverage problems caused by signal fading and attenuation due to architectural obstacles. Its easy installation and maintenance help carriers achieve fast return on investment.
The repeater functions as a relay between the BTS and mobile devices. It captures the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal, and retransmits it via the Indoor Signal Distribution System to weak or blind coverage areas. Mobile signals are also amplified and retransmitted to the BTS in the opposite direction.
| Specifications | Parameters |
|---|---|
| Frequency Range (Customer Selectable) | Uplink: 2300-2400MHz Downlink: 2300-2400MHz |
| Frequency Bandwidth | 100MHz |
| Gain | 70dB |
| Automatic Gain Control (Step Attenuation) | 31dB @ 1dB/Step |
| Auto Gain Control | 20dB Min. |
| Output Power (Customer Selectable) | 20dBm |
| Spurious Emission | ≤ -15dBm/30kHz 9kHz~1GHz: ≤ -36dBm/30kHz 1GHz~12.75GHz: ≤ -30dBm/30kHz |
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) |
| In-band Ripple | ≤ 3dB |
| VSWR | ≤ 2 |
| I/O Impedance | 50 Ω |
| Noise Figure | ≤ 5dB |
| System Delay | ≤ 5μs |

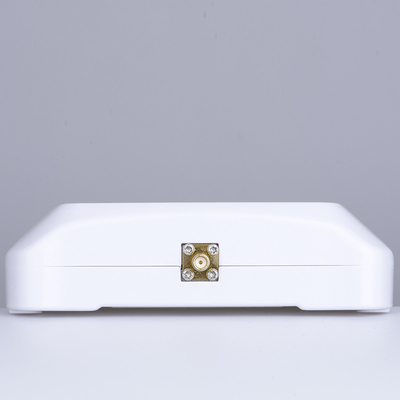

| RF Connector (Customer Selectable) | SMA (Female) |
| Operating Temperature | Operation: -10°C ~ +55°C Storage: -20°C ~ +60°C |
| Power Supply | AC 110~220V±20%, 50/60Hz (AC 220V/ DC5V/2A power adapter) |
| Dimensions | 165*130*40 (mm) |
| Weight | ≤ 0.8 kg (Net) |
| Alarm Monitoring System | Alarm for uplink self-oscillation |
| Indication LED | Power supply |
For further details, please download the product specification: 900+2300MHz 006 mobile signal repeater.pdf

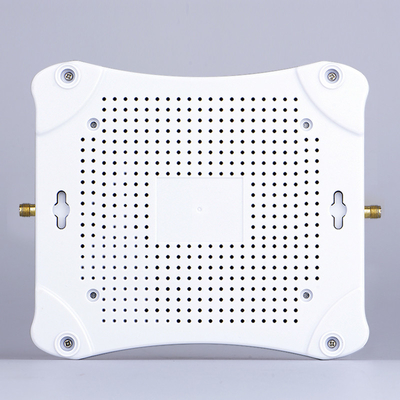

The booster is fixed onto the wall using expansion bolts:
- Drill holes at the targeted location and install expansion bolts
- Align holes with expansion bolts, place flat washers, spring washers, and nuts in sequence, then tighten nuts to secure the mounting support
- Place the booster on the mount and fasten securely
- Connect cables and power cables to the booster respectively
- After installation, power on the booster to verify operation status
- The outside antenna receives signals from the nearest mobile base station
- The outside antenna transmits received signals via coaxial cable to the installed repeater
- The repeater accepts weak signals and amplifies them
- The improved signal travels to the inside antenna through connected coaxial cable
- The inside antenna transmits the enhanced signal to your mobile device
The repeater enhances signal strength in areas with poor coverage including:
- Underground areas: basements, parking lots, tunnels
- Locations where cellular signals are blocked by metal or concrete walls: offices, supermarkets, cinemas, hotels
- Areas distant from BTS such as private residences
Are you a trading company or manufacturer? Can we use our own logo and label?
We are a factory with trading services. We provide OEM/ODM services.
Can I place a sample order? What is your MOQ?
Yes, we welcome sample orders for quality testing. MOQ is 1 unit for standard products.
Is it easy to set up your products?
Yes. We provide user manuals and 24/7 technical support.
What is your warranty period?
We offer a 3-year warranty for all products shipped from us. Man-made damage and natural factors are excluded from warranty coverage.
Can I install a signal repeater myself?
Absolutely. No technical expertise is required to install your mobile signal repeater kit. Each kit includes everything needed to improve mobile coverage and comes with instructions guiding you through simple installation steps.
Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal; it only amplifies existing weak signals.
