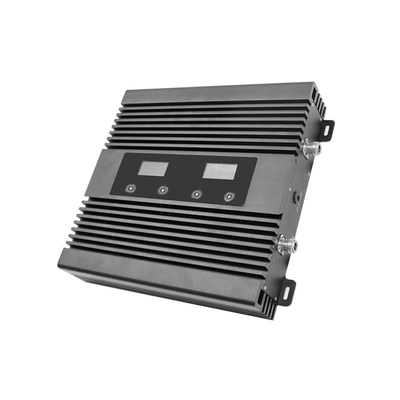

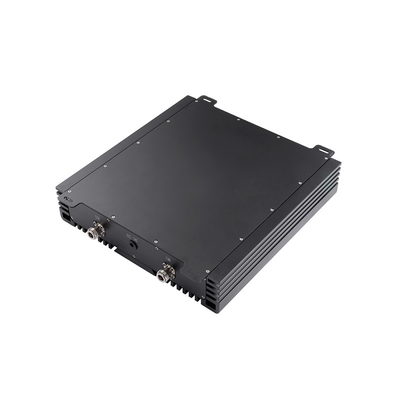

1800MHz 2600MHz Dual Band Signal Booster

1800MHz 2600MHz Dual Band Signal Booster
1800MHz 2600MHz Dual Band Signal Booster 1800MHz 2600MHz Dual Band Signal Booster

Large Image :  1800MHz 2600MHz Dual Band Signal Booster

Product Details:
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: AS-DB1800/2600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD+240---260+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.

1800MHz 2600MHz Dual Band Signal Booster

Description
Frequency Range: According To Customer's Need,(Band 3)1800MHz -- Uplink Frequency: 1710-1785MHz/Downlink Frequency : 1805-1880MHz(Band 41) 2600MHz -- Uplink Frequency: 2496-2690MHz/Downlink Frequency : 2496-2690MHz Gain: 80dB
Output Power: 27dBm Color: Black ,Cuztomized
AGC Intelligent Function: Done,31dB @ 1dB/ Step ALC Intelligent Function: Done
RF Connect Type: N/Female Connector Power Supply: AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter)
Weight: 5kg Packing Size: 48x46x18cm
Trademark: ATNJ Origin: Shenzhen,CN
High Light:

2600MHz Dual Band Signal Booster

,

1800MHz Dual Band Signal Booster

,

TUV 2600MHz Mobile Signal Repeater

1800MHz 2600MHz Dual Band Signal Booster



2G 4G 5G Dual Band 1800/2600MHz Cell Phone Booster Ampilifier Mobile Signal Repeater



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

1710-1785MHz,2496-2690MHz

Downlink

1805-1880MHz, 2496-2690MHz

Frequency Bandwidth (3dB Bandwidth)

30MHz&75MHz

Gain

80dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

27dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter)

Dimensions

165*130*40 (mm)

HS Code

8543709200



Product Description

HOW IT WORK?

The outdoor antenna installed on the roof receives mobile phone’s signal and transmits it to the amplifier host through coaxial jumpers. The host amplifies the mobile signal and transmits it to the indoor space through the indoor antenna.

No inter-linkage between coaxial cable and mobile phone is needed, and mobile phones inside the house can get better mobile signals.



Boost: 4G 5G Network

Coverage: 350-800 Square Meters

Suitable For: Russia,Spain,France,Ukraine,Europe,Asia,etc

Warranty: 3 Years



Eliminate dropped calls and increase data speeds with a signal booster.
Indoor Dual Band Signal Repeater (Signal Booster) series is an ideal solution for both two wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Downtown areas of the cities, congested with many high-rise buildings are usually the weak or blind areas.
Do not open the booster; touch the module of booster, even not to open the cover of module to touch the electronic component, the components will be damaged due to electrostatic.

Features:

1. Cost effective solution for weak signal zones, reduce drop/off calls.

2. Compact size, low power consumption,

3. easy installation, great cover.

4. Expansion and extending of the signal of base station.

5. Optimization of the quality of the signal and source

6. Cover about 500~3000m² without block or obstruct.

7. Support any cellular devices (voice & data )

8. Wide band signal booster, or customize selective band booster.







1800MHz 2600MHz Dual Band Signal Booster 0

1800MHz 2600MHz Dual Band Signal Booster 1



1800MHz 2600MHz Dual Band Signal Booster 2

1800MHz 2600MHz Dual Band Signal Booster 3
