Product Details:
|
| Device Gain: | 70dB | Device Power: | 17±3 |
|---|---|---|---|
| Frequency Range: | 832-862MHz，791-821MHz | Color: | Black And White |
| Interface:: | SMA/F Connector | Material: | Alloy ,Plastic |
| ALC+AGC Intelligent Function: | Done | Warranty: | 3 Years |
| Trademark: | ATNJ | ||
| Highlight: | LTE 800MHz 4G Signal Repeater,862MHz 4G Signal Repeater,821MHz Mobile Signal Amplifier |
||
LTE 800MHz 4G Signal Repeater
Mobile Signal Booster Amplifier LTE800MHz Cellular Signal Repeater
Model No :AS-800
Can control gain automatically. Avoid base station interference
(Band 20) 800MHz -- Uplink frequency: 832-862MHz/Downlink frequency :791-821MHz
Network support : 4G, Network
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.
Description
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1755MHz |
|
Downlink |
2110-2155MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
17±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(F) |
|
|
Operating Temperature |
- 10°C ~ + 55°C |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Production Capacity |
10000/Per Month |
|
Further detail pls click here for downloading the products specification:
LTE 800MHz B07 Signal Repeater.pdf
Selling Point
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.

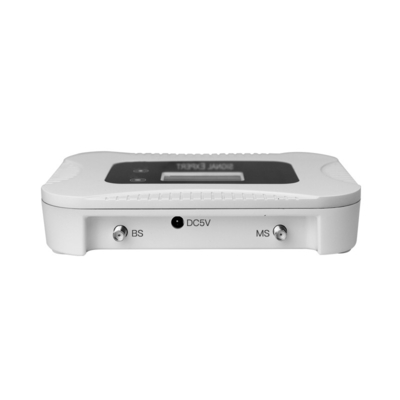

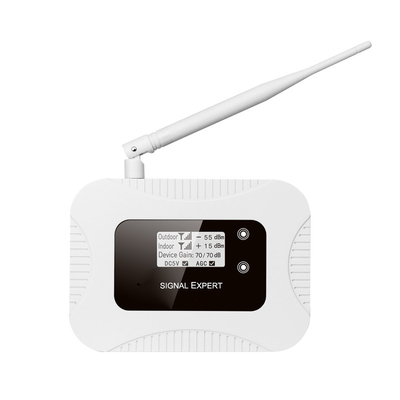

Product Images
FAQ
1. What is your advantage ?
--- Your inquiry will be replied in 24hours .
--- Well-trained and experienced staffs to answer all your inquires in fluent English .
--- OEM&ODM, for any of your customized products we can help you to design and put into product .
--- All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Certificates ?
We have CE, ROHS, CCC certificates .
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
