LTE Dual Band Repeater 4G

LTE Dual Band Repeater 4G

Brand Name:	ATNJ
Model Number:	ATNJ-FDD/TDD-LTE2.6-65-17
MOQ:	5Pcs
Price:	USD+130---160+kit
Payment Terms:	T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability:	1000+unit+per day.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS，CCC，TUV,BV， ISO

Document:

1800 2600MHz C03 Mobile Sig...er.pdf

Material:

Zinc Alloy, Plastic

Device Gain:

65-70dB

Device Output Power:

17-20dBm

Frequency Range:

1800+2600MHz

Gain Adjustment:

Done

AGC Function:

Done

ALC Function:

Done

Power Supply:

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter)

Device Weight:

0.5kg

Device Warranty:

48 Months

Packaging Details:

Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)

Supply Ability:

1000+unit+per day.

Highlight:

65dB LTE Dual Band Repeater 4G

DC24V Dual Band Repeater

70dB DC24V Dual Band Signal Booster

Product Description

LTE Dual Band Repeater 4G

FDD/TDD1800+2600MHz -LTE2.6-65-17 4G Dual band signal booster

Frequency Range

FDD1800M Uplink:1710~1735MHz Downlink:1805-1830MHz

TDD2600M Uplink:2575~2675MHz Downlink:2575-2675MHz

Mobile Signal Booster Echnical parameter

Uplink-signal booster	Downlink
Max Gain	65	65
Max Gain error	3±	3±
ALC Working Range	≥17	≥17
Passband Ripple	≥6	≥6
Receiver Sensitivity	≥90	...
Max Power	17±3	20±3
Spurious Emission	≤-36dBm/100KHz	≤-36dBm/100KHz
Intermodulation Attenuation	≤-45	≤-45
Signal Booster VSWR	≤25	≤25
System Delay	≤2μs

Further detail pls click here for downloading the products specification:

1800+2600MHz A034 5G Signal Repeater.pdf

Mobile Signal Booster Parameter index

Working Voltage-mobile signal booster	DC24V
Working Current	<5A
Signal Booster Power Supply	AC 100~240V 50/60Hz
Working Temperature	-25°c~+55°c
Working Relative Humidity	≤85°c
RF connector	SMA-K
FDDI connector	FC/APC
Dimensions	205X150X38
Signal Booster Weight	0.6kg

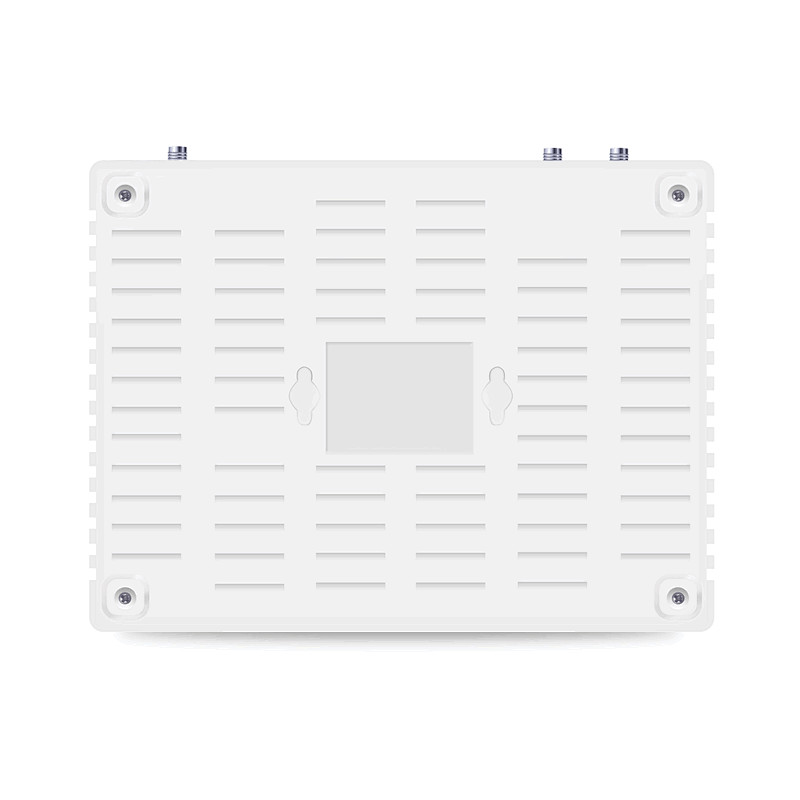

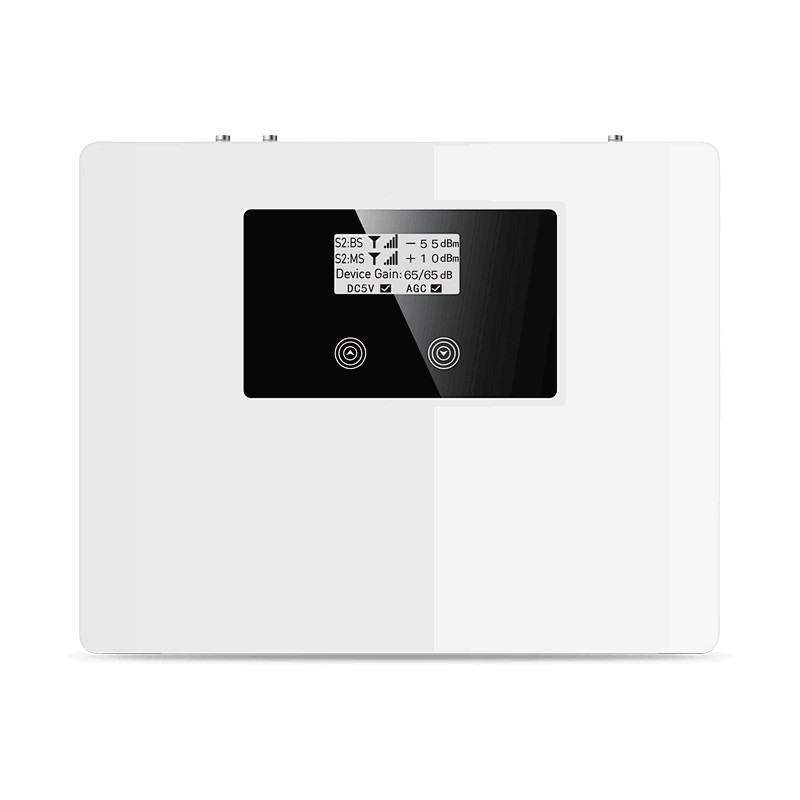

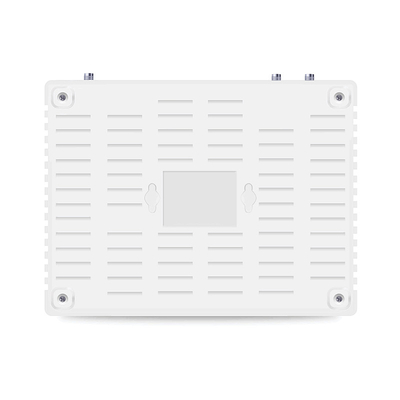

LTE Dual Band Repeater 4G 0 LTE Dual Band Repeater 4G 1

Mobile Signal Booster Installation Diagram

LTE Dual Band Repeater 4G 2
