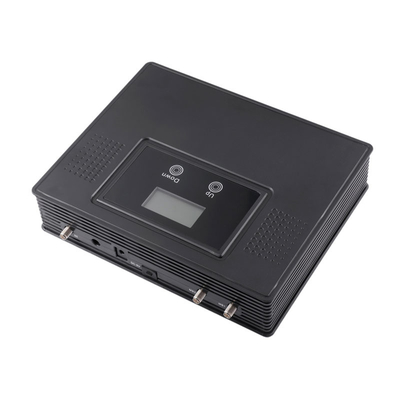

2G 3G 4G Tri Band Repeater

2G 3G 4G Tri Band Repeater
2G 3G 4G Tri Band Repeater 2G 3G 4G Tri Band Repeater 2G 3G 4G Tri Band Repeater

Large Image :  2G 3G 4G Tri Band Repeater

Product Details:
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: JS-DB900/1800/2100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD+240---260+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.

2G 3G 4G Tri Band Repeater

Description
Frequency Range: According To Customer's Need,(Band1) 2100MHz -- Uplink Frequency: 1920-1980MHz/Downlink Frequency : 2110-2170MHz (Band 3) 1800MHz -- Uplink Frequency: 1710-1785MHz/Downlink Frequency : 1805-1880MHz (Band 8) 900MHz -- Uplink Frequency: 890-915MHz/Down Gain: 70dB
Output Power: 20dBm Color: Black ,Cuztomized
AGC Intelligent Function: Done,31dB @ 1dB/ Step ALC Intelligent Function: Done
MGC: Done In-band Ripple: ≤ 3dB
VSWR: <=2 Noise Figure: ≤ 5dB
System Delay: ≤ 5μs RF Connect Type: N/Female
Power Supply: AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) Inter-Modulation Attenuation ACPR: ≤ -40dBc / 30kHz (measured Under Rated Output Power)
Weight: 3.5kg Packing Size: 52x21x16cm
High Light:

2G 3G 4G Tri Band Repeater

,

2100MHz Tri Band Repeater

,

2100MHz Cellular Amplifier

2G 3G 4G Tri Band Repeater



Full intelligent 2G 3G 4G Mobile Signal Booster 900/1800/2100MHz Cellular amplifier GSM LTE signal repeater kit



Specification:

Frequency

Uplink

Downlink

GSM 900MHz

890-915MHz

935-960MHz

4G 1800MHz

1710-1785MHz

1805-1880MHz

3G 2100MHz

1920-1980MHz

2110-2170MHz

Max. Gain

68dB±2dB

65dB±2dB

Max. Output Power

17dB±2dB

20dB±2dB

Bandwidth

Wide Band

Ripple in Band

≤ 8dB

Noise Figure

≤ 6dB

VSWR

≤ 2.0

Spurious Emission

9KHz~1GHz

≤ -36dBm

1~12.75GHz

≤ -30dBm

Time Delay

≤ 1.5 μs

MTBF

> 50000 hours

Impedance

50 ohm

Power Supply

AC 90-240V,DC 5V/3A

Power LCD

Power indicator

Alarm LCD

Red

Strong input signal

Green

Normal

Mechanical Specification

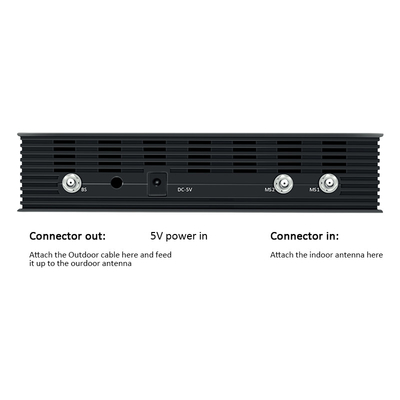

RF Connector

SMA-Female

Cooling

Heatsink Convection cooling

Humidity

< 90%

Operating Temperature

-10°C ~ +55°C

Environment Conditions

IP40

Installation Type

Wall Installation

Size

20.4*16.4*4.4cm

Gross Weight

0.8Kg



Further detail pls click here for downloading the products specification:

900+1800+2100MHz A033 RF Repeater.pdf



Selling Point

2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.

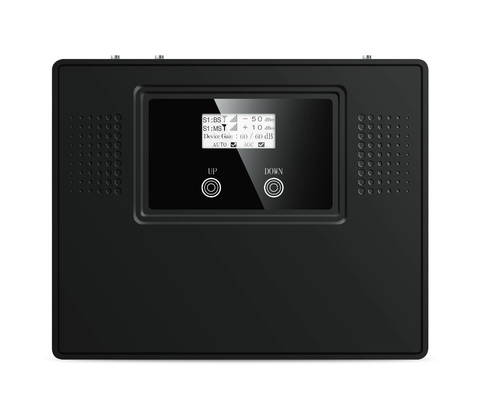

1,Intelligent to guide the installation with LCD
2,Real time display the signal strength.
3,Automatic dormancy when no user make the calling
4,Automatic alarm when installation mistake and provide the according solution
5,Automatic adjust the system gain to avoid the repeater self-excitation
6,initiative reminding when the device was damaged.





Product Description
2G 3G 4G Tri Band Repeater 02G 3G 4G Tri Band Repeater 12G 3G 4G Tri Band Repeater 22G 3G 4G Tri Band Repeater 32G 3G 4G Tri Band Repeater 42G 3G 4G Tri Band Repeater 52G 3G 4G Tri Band Repeater 62G 3G 4G Tri Band Repeater 72G 3G 4G Tri Band Repeater 82G 3G 4G Tri Band Repeater 9
2G 3G 4G Tri Band Repeater 102G 3G 4G Tri Band Repeater 112G 3G 4G Tri Band Repeater 122G 3G 4G Tri Band Repeater 132G 3G 4G Tri Band Repeater 142G 3G 4G Tri Band Repeater 15



We are manufacturer, and have our own factory.

FAQ

Q1. Could I get a sample before bulk order?

Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

This model is suitable for Asia, Europe, The Middle East, and Brazil, etc.

*For more details please contact us directly.



Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.



Q4.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.



Q5.Shipment Date

Sample

1-3 business days

<50 pcs

7-15 days

50-100 pcs

15-24 days

>100 pcs

Negotiate


Q6: Delivery Date of the sample by DHL/FedEx

Russia/Canada/Europe/Asia

3-5 days

Middle East/Latin American

3-6 days

African

5-7 days
