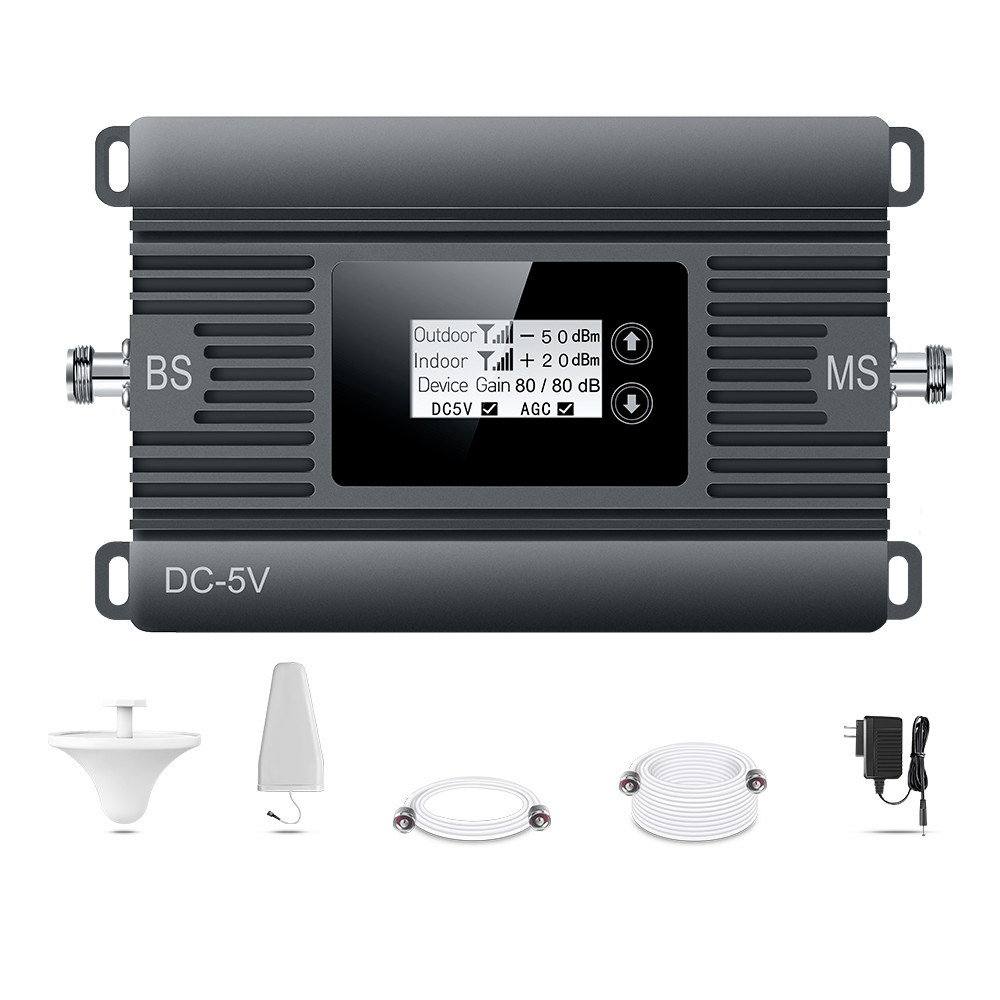

GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect

5Pcs
MOQ
USD+100---120+kit
Price
GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency Range: 890-915MHz/935-960MHz
Gain: 80dB
Output Power: 27dBm
RF Connect Type: N/Female
Packing Size: 52x21x16cm
Warranty: 24 Months
Products Type: Powerful Booster Gsm, Amplificateur Gsm
Highlight:

900MHz Cell Phone Signal Booster

,

GSM Cell Phone Signal Booster

,

900MHz 2G Mobile Signal Booster

Basic Infomation
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: MS-G
Payment & Shipping Terms
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Product Description

GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect



Single Band GSM900MHz Mobile Signal Repeater Cell Phone Booster Ampilifier 2G



The 900MHz GSM Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.



Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

890-915MHz

Downlink

935-960MHz

Frequency Bandwidth (3dB Bandwidth)

30MHz

Gain

80dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

27dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

 - 10°C ~ + 55°C

Dimensions

165*130*40 (mm)

Country of Origin

China

Further detail pls click here for downloading the products specification:

GSM 900MHz B011A Signal Repeater.pdf





Product Description

GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 0GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 1

GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 2GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 3GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 4GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 5GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 6GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 7

GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 8GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 9

GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 10GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 11GSM 900MHz Cell Phone Signal Booster WIth N Female RF Connect 12





shipping

●We will send your parcel as soon as posiible after payment confirmed, Within 48 hours for normal,Except weekend and Chinaese holidays.

●Please provide your correct address,full name,and zip code.

●We generally would declare the parcel with lower value to aviod or lessen the Customs Taxs.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax.

●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
