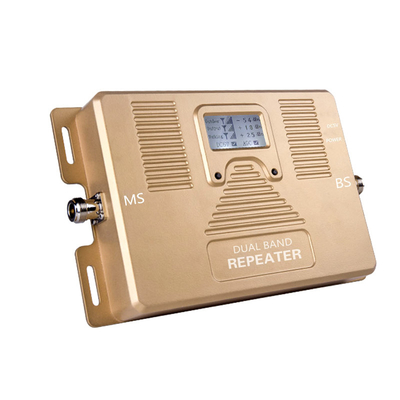

Dual Band 1800/2100MHz 2G/3G/4G Signal Booster with LCD Display
| Type: | 3/4G Signal Booster | Network: | GPRS, 4g, GSM, 3G |
| Key words: | 4G Repeater | Suitable: | Global Applicatioin For Home/office/apartment... Use |
| Frequency: | 1710-1785MHz /1805-1880MHz ,1920-1980MHz/2110-2170MHz | Cellular Networks: | 2g/3g/4g |
| coverage: | 350m2 | weight: | 1kg |
| size: | 225x140x35 (mm) | material: | Aluminium |
| gain: | 70db | Warranty: | 3 Years |
| High Light: | Dual Band Signal Booster,4G Signal Booster LCD,1800MHz Mobile Booster |
||
Global application ATNJ factory DUAL BAND 1800&2100MHZ 2G/3G/4G signal repeater. DUAL BAND Pico repeater is applied specifically in small area indoor DAS system.
- Bi-directional amplifier for improved signal reception and transmission
- Eliminates signal dead spots and reduces interference
- Coverage up to 3000 square meters in open space
- Edge power level for coverage area above 85dBm
- Output power level less than 20dBm
- Can boost GPRS speed
- Intelligent LCD display for installation guidance
- 3-year warranty
| Frequency Range | Uplink: 1710-1785MHz & 1920-1980MHz Downlink: 1805-1880MHz & 2110-2170MHz |
|---|---|
| Frequency Bandwidth (3dB Bandwidth) | 25MHz & 75MHz |
| Gain | ≥ 65dB |
| Output Power | 17-23dBm |

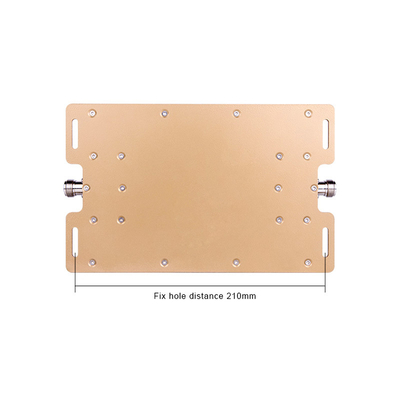

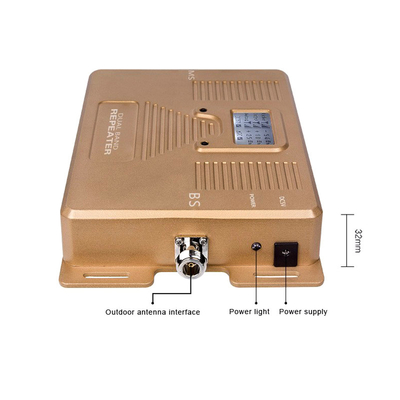

| Dimensions | 225×140×35 mm |
| Weight | 1 kg |
| Operating Temperature | -10°C to +55°C (Operation) -20°C to +60°C (Storage) |
| Power Supply | AC 220V±20%, 50/60Hz (AC 220V/ DC9V/9A power adapter) |

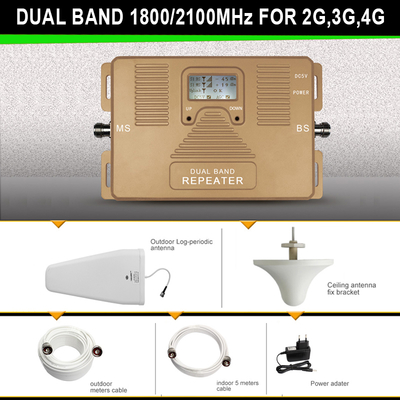

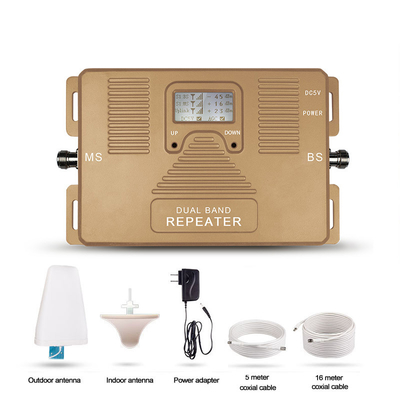

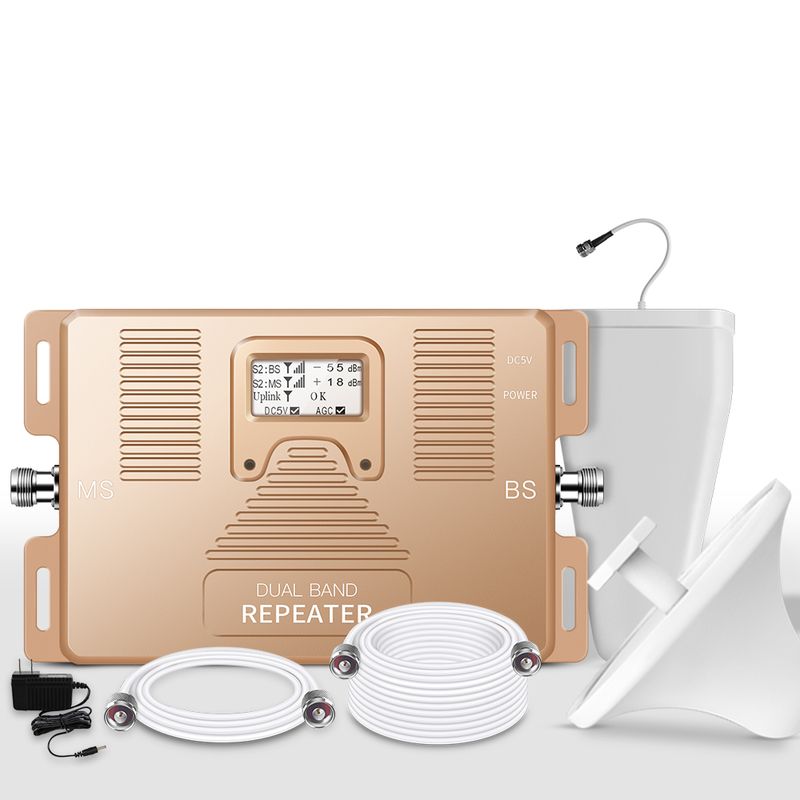

- GSM900 & 3G 2100MHz Booster ×1
- Power Adapter ×1
- Log-Periodic Antenna ×1
- Ceiling Antenna ×1
- 16M Cable ×1
- Mounting Accessories
- Intelligent installation guidance with LCD display
- Real-time signal strength display
- Automatic dormancy when not in use
- Damage detection with proactive alerts
- Automatic installation error detection with solutions
We are a factory with trading service. We provide OEM/ODM service and can accommodate custom branding requests.
Yes, we welcome sample orders to test and check quality. Our minimum order quantity is just 1 unit for standard products.
Yes, we provide a comprehensive user manual and offer 24/7 technical support for installation assistance.
We offer a 3-year warranty for all products shipped from us. Please note that man-made damage and natural factors are not covered under warranty.
Please feel free to contact us with any additional questions - our team is ready to assist you.
