2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector

2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector

Brand Name: ATNJ
Model Number: NT-CGDW
Price: $240/sets 1-29 sets
Detail Information
Place of Origin:
Guangdong, China
Type:
4G Signal Booster
Network:
GPRS, 4g, GSM, 3G, LTE, CDMA
Frequency:up:
825-835MHz,890-915MHz,1710-1785MHz,1920-1980MHz
Frequency: Down:
870-880MHz,935-960MHz,1805-1880MHz,2110-2170MHz
Gain::
Uplink :60±3dB, Downlink: 65±3dB
Output Power::
Uplink :13±2dBm, Downlink:20±dBm
Power Supply:
DC 5V
RF Connect Type::
SMA/Female Connector
Origin::
Shenzhen,CN
Keywords:
Signal Booster, 4g Gsm Repeater
Packaging Details:
1 pc a box and 20 pcs a carton.
Highlight:

4G mobile signal amplifier

,

Quad band signal repeater

,

SMA connector signal booster

Product Description
2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector
Product Attributes
Attribute Value
Type 4G signal booster
Network GPRS, 4G, GSM, 3G, LTE, CDMA
Frequency: Up 825-835MHz, 890-915MHz, 1710-1785MHz, 1920-1980MHz
Frequency: Down 870-880MHz, 935-960MHz, 1805-1880MHz, 2110-2170MHz
Gain Uplink: 60±3dB, Downlink: 65±3dB
Output Power Uplink: 13±2dBm, Downlink: 20±dBm
Power Supply DC 5V
RF Connect Type SMA/Female Connector
Origin Shenzhen, CN
Product Description
2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 0
Specifications
Frequency Range Parameters
CDMA 850MHz 825-835MHz/870-880MHz
GSM 900MHz 890-915MHz/935-960MHz
DCS/LTE1800MHz 1710-1785MHz/1805-1880MHz
WCDMA 2100MHz 1920-1980MHz/2110-2170MHz
Band Width Parameters
CDMA 850MHz 10MHz
GSM 900MHz 25MHz
DCS/LTE1800MHz 75MHz
WCDMA 2100MHz 60MHz
Gain 65±3dB
Automatic Gain Control 31dB
MGC (Step Attenuation) 31dB@ 1dB/Step
Output Power 20±2dBm
Spurious Emission
9 kHz -150 kHz/1kHz ≤-36dBm
150kHz-30MHz/10kHz ≤-36dBm
30 MHz-1GHz/100kHz ≤-36dBm
1GHz-12.75GHz/1MHz ≤-30dBm
ACPR Uplink Fully comply with 3GPP 36.106
Downlink Fully comply with 3GPP 36.106
Unwanted emissions Fully comply with 3GPP 36.106
VSWR ≤2
Ripple Parameters
CDMA 850MHz ≤6dB
GSM 900MHz ≤6dB
DCS/LTE1800MHz ≤6dB
WCDMA 2100MHz ≤6dB
Noise Figure ≤7dB
Delay ≤1μs
I/O Impedance 50Q
RF Connector (Customers to Choose) SMA-Type (Female)
Operating Temperature -25°~+55°
Power Supply DC 5V
Power consumption ≤75W
Environment Conditions IP43
Humidity ≤90%
Weight 0.5kg
Size 205*165*45mm
Key Features
  • Support the network extension coverage of NSA and SA networking mode at the same time
  • MIMO dual channel input and output to improve system capacity and energy efficiency
  • Isolation detection of donor and retransmission antenna
  • Large AGC range
  • High speed digital ALC
  • Output power indication
  • Automatic Dormancy
  • When the equipment is self-excited, it will turn off automatically
  • Unique equipment uplink squelch function, which does not interfere with the base station
  • Automatic balance of uplink and downlink gain
  • Small size, light weight, beautiful appearance, high gain and low power consumption
  • Different output power levels to meet different coverage requirements
  • Low noise amplification of equipment to improve voice quality and reduce dropped calls
  • Convenient installation and opening

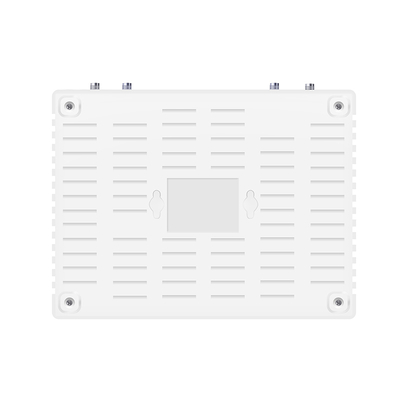

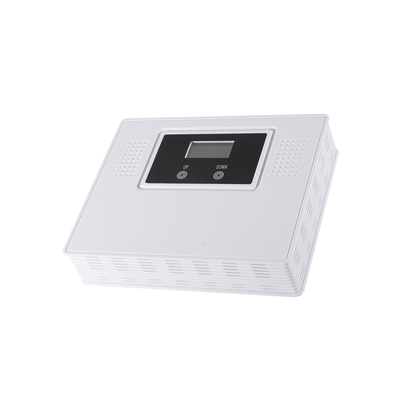

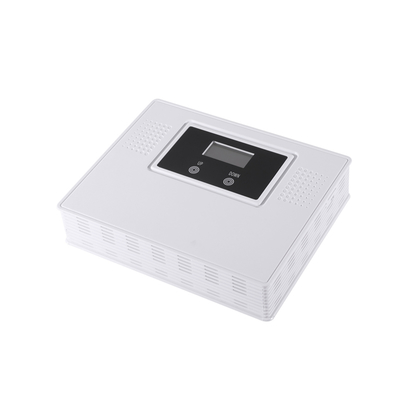

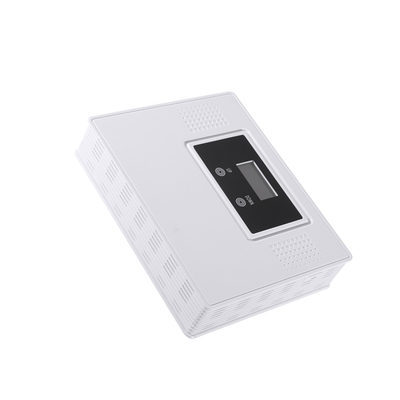

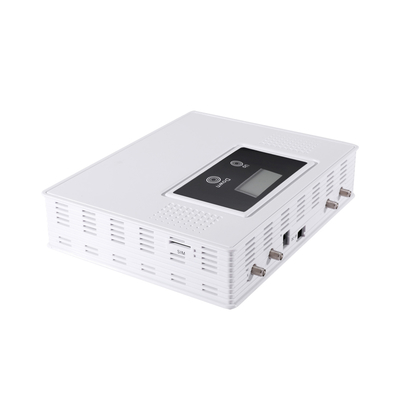

Product Images
2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 1 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 2 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 3 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 4 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 5
Company Profile
2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 6 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 7 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 8 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 9 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 10 2G 3G 4G Repeater Quad Bands 850-2100MHz Mobile Signal Amplifier with SMA Connector 11

Shenzhen ATNJ Communication Technology Company was founded in Nanshan District, Shenzhen in 2010 with over 900sqm factory. ATNJ focuses on the production and development of micro power signal booster, wireless signal repeater, Indoor Signal Distribution System and antenna series. With professional engineers, workers and with senior management personnel, the group maintains high-speed development.

Meanwhile, the Up-to-date facilities and technology ensure the business long-term development. With the rapid development of the company, ATNJ moved to Guangming District, Shenzhen in 2016 with a bigger factory over 2800sqm and over 50 workers.

In its stage of rapid development, ATNJ advertised its products by attending trade exhibitions oversea, cooperating with many platforms like Made-in-China, Alibaba, Global Sources and so on. Especially, ATNJ attended Mobile World Congress in Spain, which made ATNJ well known in the world and through MWC, ATNJ started to cooperate with many oversea companies.

Nowadays, ATNJ not only produces and develops high-quality home use signal booster and high power wireless repeater, but also expands its business scope to cooperate with signal operators, provide signal coverage solution for large area like residential area, office building, supermarket, underground garage and rural areas.

With the popularization of signal repeater, users have more requirements for the functions of the signal repeater. In 2020, ATNJ developed smarter digital module signal repeater with WIFI connection monitoring function, with which users could control the signal repeater and watch the signal repeater working situation with their mobile phone. Signal repeaters with WAN connection/Bluetooth connection/USB connection were developed at the same time.

In 2021, 5G signal booster was developed and put into Chinese market successfully. In addition, ATNJ starts to upgrade the signal booster from analog module to digital module, with which the products (micro power signal booster, wireless signal repeater, Indoor Signal Distribution System) could be operated and controlled with WIFI connection, WAN port, USB port and SIM card.

What's more, more functions are equipped in our products, like band select, sub bands, OLED screen display, MGC. With the progress of science and technology of ATNJ, easier use and more functional signal boosters have being developed.
