AGC ALC MGC LTE Signal Booster Band20 800MHz 4G Amplification Repeater

AGC ALC MGC LTE Signal Booster Band20 800MHz 4G Amplification Repeater

Brand Name: ATNJ
Model Number: MS-800
Price: $120/pieces
Detail Information
Place of Origin:
Guangdong, China
Type:
4G Signal Booster
Network:
SDK, GPRS, 4g, GSM, 3G, LTE
Repeater Frequency:
832-862MHz,791-821MHz
Repeater Gain:
80dB
Repeater Output Power:
27dBm
AGC ALC MGC Function:
Done
Coverage:
500-800sqm
Weight:
Approx 0.5kg
Size:
165*115*35mm
Application:
Home,office, Apartments,basement,shopping Mall, Parking ...ect.
Material:
Aluminum
Warranty:
3 Years
Highlight:

AGC LTE signal booster

,

Band20 800MHz repeater

,

4G amplification booster

Product Description
AGC ALC MGC LTE Signal Booster Band20 800MHz 4G Amplification Repeater
Product Specifications
Attribute Value
Type 4G signal booster
Network SDK, GPRS, 4G, GSM, 3G, LTE
Repeater Frequency 832-862MHz, 791-821MHz
Repeater Gain 80dB
Repeater Output Power 27dBm
AGC ALC MGC Function Done
Coverage 500-800sqm
Weight Approx 0.5kg
Size 165*115*35mm
Application Home, office, apartments, basement, shopping mall, parking, etc.
Material Aluminum
Warranty 3 Years
Technical Specifications
Frequency 832-862MHz, 791-821MHz
Gain ≤80dB
Automatic Gain Control (AGC) 20dB
Noise Figure >4dB
Gain Flatness >5dB (p-p)
Automatic Gain Control (1dB step) 30dB in step of 1dB (Auto)
Maximum Output Power UL10-20dBm DL15-25dBm
Input power range -55 dBm~-15 dBm
Intermodulation Products 9KHz~1GHz -36dBm @ 3KHz
1GHz~12.75GHz -30dBm @ 3KHz
Spurious Emission 9KHz~1GHz -36dBm @ 3KHz
1GHz~12.75GHz -30dBm @ 3KHz
Group Delay UL 1μs
AC POWER AC 95-250V
Adapter output power DC5.0V
Temperature range -25ºC~+55ºC
Relative humidity ≤80%
RF interface N-F
Power interface KLD-35-13
Weight ≤1.3kg
Size 160×100×27mm

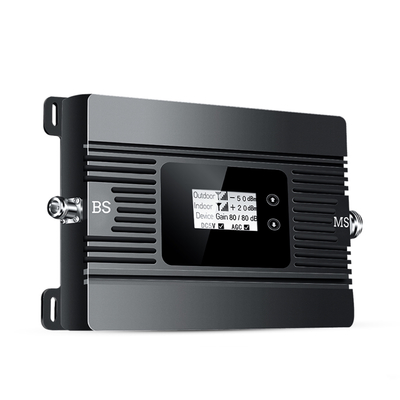

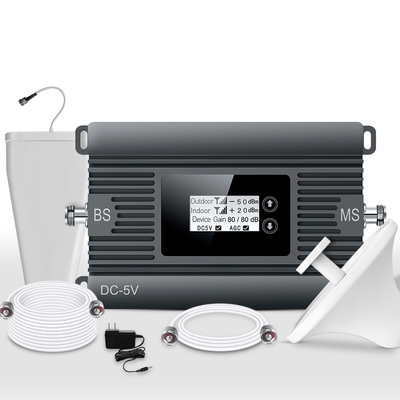

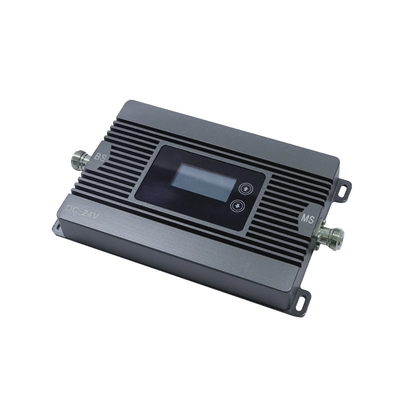

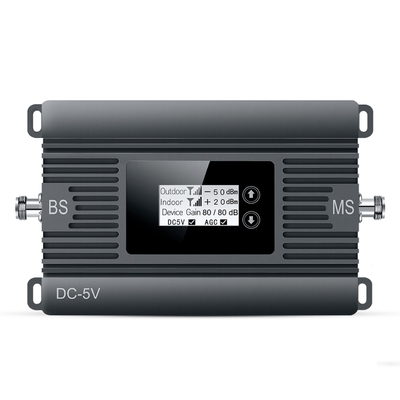

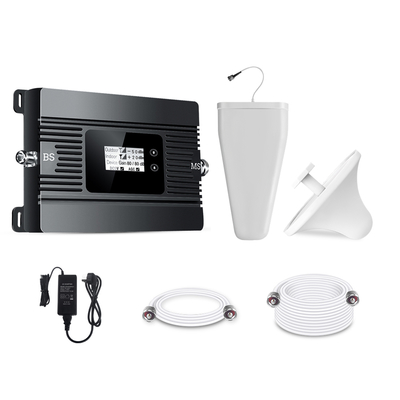

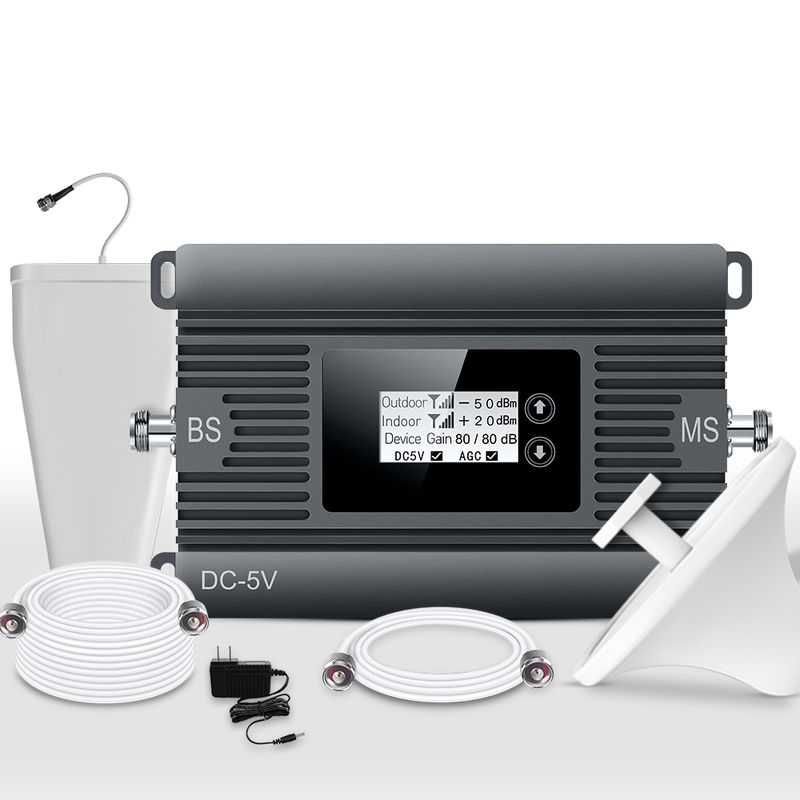

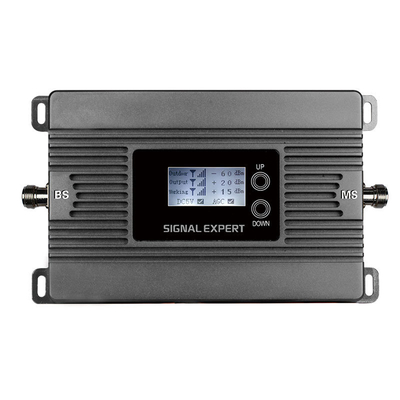

Product Images
AGC ALC MGC LTE Signal Booster Band20 800MHz 4G Amplification Repeater 0
AGC ALC MGC LTE Signal Booster Band20 800MHz 4G Amplification Repeater 1
AGC ALC MGC LTE Signal Booster Band20 800MHz 4G Amplification Repeater 2
AGC ALC MGC LTE Signal Booster Band20 800MHz 4G Amplification Repeater 3
AGC ALC MGC LTE Signal Booster Band20 800MHz 4G Amplification Repeater 4
How It Works

Wireless network signal travels through the air in the form of waves. The outdoor antenna is designed to receive the good signal from the outdoor and transmit it to the indoor booster. The booster amplifies the signal based on its frequency and emits the amplified signal through the indoor antenna making it available for use.
